Reference Information

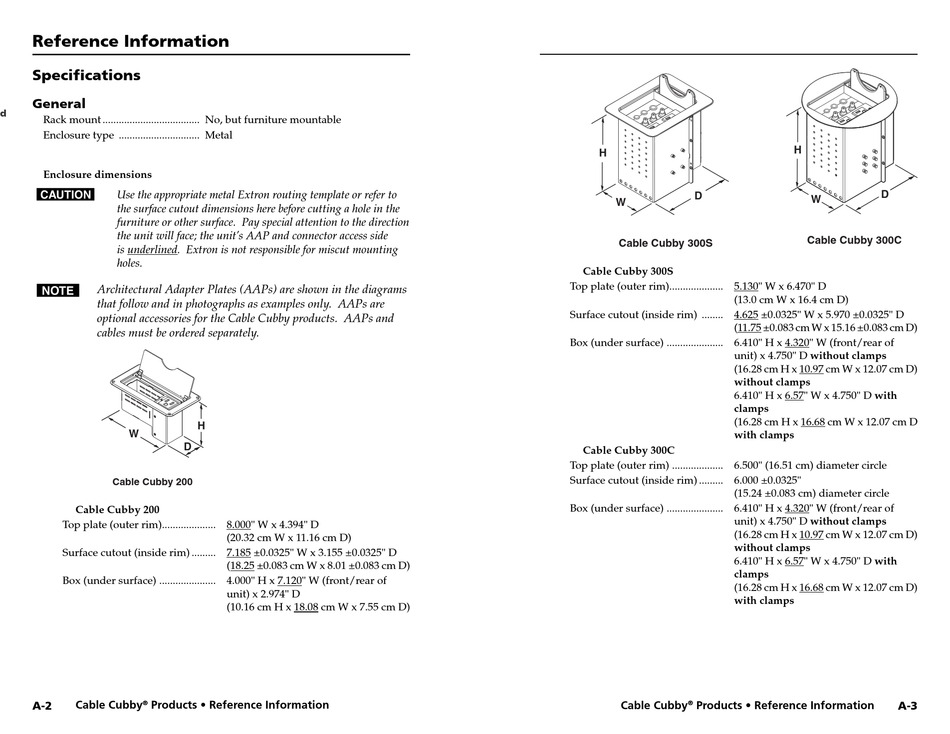

Specifi cations
General
d
Rack mount .................................... No, but furniture mountable
Enclosure type .............................. Metal
Enclosure dimensions
C
Use the appropriate metal Extron routing template or refer to
the surface cutout dimensions here before cutting a hole in the
furniture or other surface. Pay special attention to the direction
the unit will face; the unit's AAP and connector access side
is underlined. Extron is not responsible for miscut mounting
holes.
N
Architectural Adapter Plates (AAPs) are shown in the diagrams
that follow and in photographs as examples only. AAPs are
optional accessories for the Cable Cubby products. AAPs and
cables must be ordered separately.
W
Cable Cubby 200
Cable Cubby 200
Top plate (outer rim) .................... 8.000" W x 4.394" D
Surface cutout (inside rim) ......... 7.185 ±0.0325" W x 3.155 ±0.0325" D
Box (under surface) ..................... 4.000" H x 7.120" W (front/rear of
®
A-2 Cable Cubby Products • Reference Information
H
D
(20.32 cm W x 11.16 cm D)
(18.25 ±0.083 cm W x 8.01 ±0.083 cm D)
unit) x 2.974" D
(10.16 cm H x 18.08 cm W x 7.55 cm D)
H
D
W
Cable Cubby 300S
Cable Cubby 300S
Top plate (outer rim) .................... 5.130" W x 6.470" D
(13.0 cm W x 16.4 cm D)
Surface cutout (inside rim) ........ 4.625 ±0.0325" W x 5.970 ±0.0325" D
(11.75 ±0.083 cm W x 15.16 ±0.083 cm D)
Box (under surface) ..................... 6.410" H x 4.320" W (front/rear of
unit) x 4.750" D without clamps
(16.28 cm H x 10.97 cm W x 12.07 cm D)
without clamps
6.410" H x 6.57" W x 4.750" D with
clamps
(16.28 cm H x 16.68 cm W x 12.07 cm D
with clamps
Cable Cubby 300C
Top plate (outer rim) ................... 6.500" (16.51 cm) diameter circle
Surface cutout (inside rim) ......... 6.000 ±0.0325"
(15.24 ±0.083 cm) diameter circle
Box (under surface) ..................... 6.410" H x 4.320" W (front/rear of
unit) x 4.750" D without clamps
(16.28 cm H x 10.97 cm W x 12.07 cm D)
without clamps
6.410" H x 6.57" W x 4.750" D with
clamps
(16.28 cm H x 16.68 cm W x 12.07 cm D)
with clamps
Cable Cubby ® Products • Reference Information
H
D
W
Cable Cubby 300C
A-3
