Packaging for Shipment, cont'd
10. CC 300, 600, 800 only — Stuff the foam section removed in
step 8 into the screw clamp opening in the foam cushion in
the carton.
11. CC 300, 600, 800 only — Lower the Cable Cubby, with the
top closed, into the foam cushion in the shipping carton
(fi gure B-7).

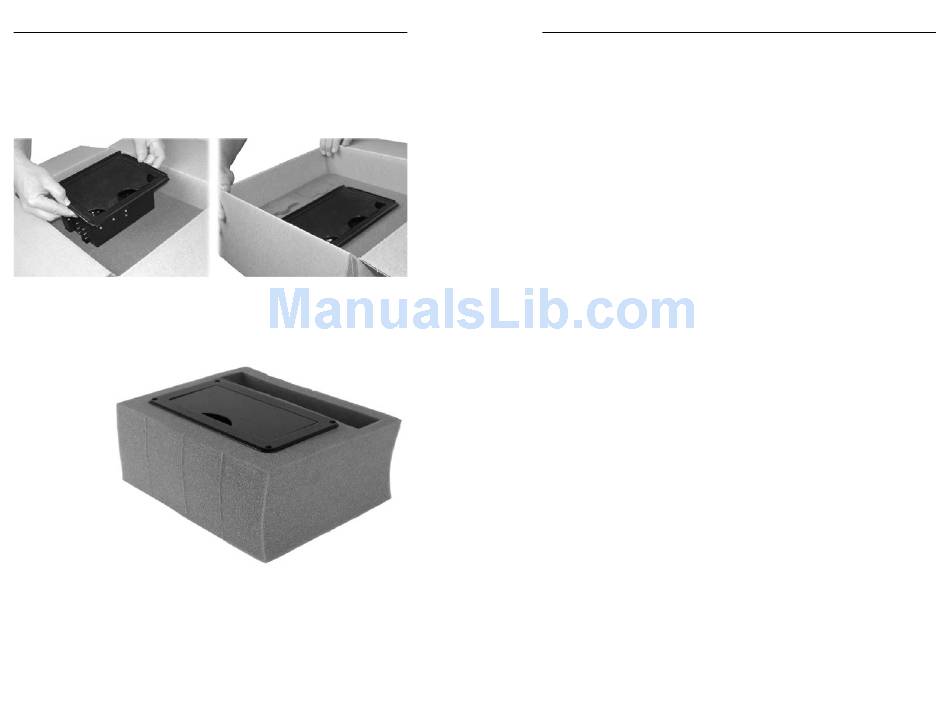

Figure B-7 — Placing the cubby in the carton
12. CC 200 only — Insert the Cable Cubby 200 into the foam
shell (fi gure B-8). Firmly push the Cable Cubby into the
foam shell to completely suspend the Cable Cubby.
Figure B-8 — Installing the foam shell
®
B-6 Cable Cubby Products • Packaging for Shipment
13. CC 200 only — Lower the Cable Cubby and foam into the
shipping carton.
14. Place the top foam pad, removed in step 4, on top of the
Cable Cubby.
15. Close the shipping carton and seal it with high quality
shipping tape.
16. Ship the Cable Cubby to Extron using a reputable shipping
company.
Cable Cubby ® Products • Packaging for Shipment B-7
