Maintenance and Modifi cations, cont'd
• Cable Cubby 600 and 800 US/Domestic models —
You probably do need replacement shelf brackets
when you add a US/Domestic power module to
a US/Domestic Cable Cubby, because the power
module takes up two spaces in a cubby that, in its
standard confi guration, is equipped with three-space
(Cable Cubby 600) or four-space (Cable Cubby 800)
shelves.

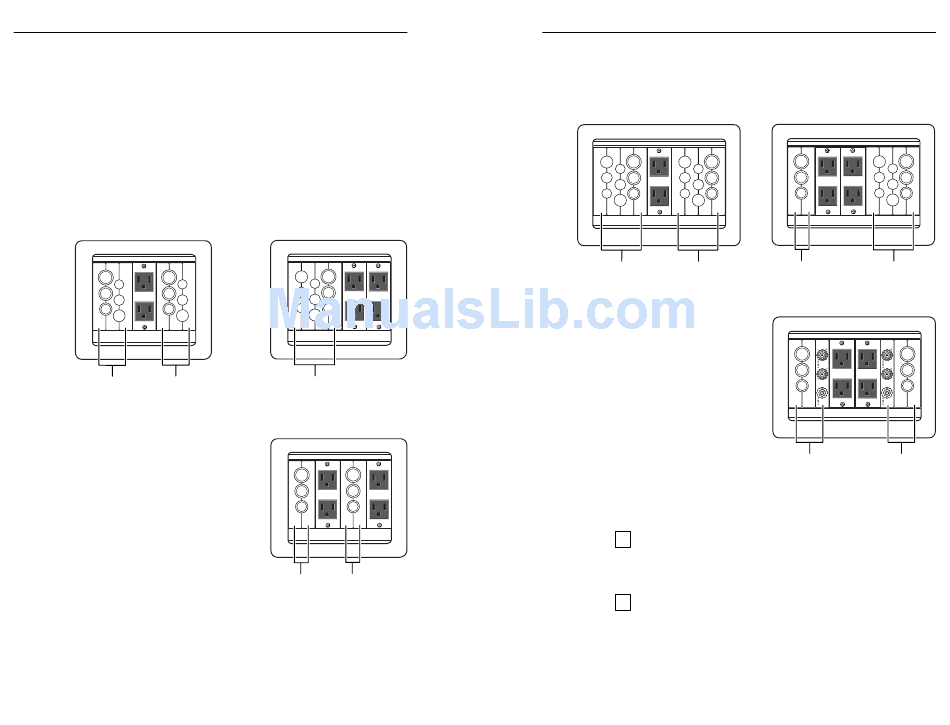

Figure 3-5 shows typical confi gurations before and after
you add a second US/Domestic power module to a
US/domestic Cable Cubby 600 and suggests rack shelf
confi gurations to replace the shelf space removed.
Before
UNSWITCHED
100-240V/ 5AMAX
UNSWITCHED
100-240V/ 5AMAX
Three AAP Three AAP
Space Shelf Space Shelf
Figure 3-5 — Cable Cubby 600 with second power
module
®
3-8 Cable Cubby Products • Maintenance and Modifi cations
After
UNSWITCHED UNSWITCHED
100-240V/ 5AMAX 100-240V/ 5AMAX
UNSWITCHED
UNSWITCHED
100-240V/ 5AMAX 100-240V/ 5AMAX
Four AAP
Space Shelf
or
UNSWITCHED UNSWITCHED
100-240V/ 5AMAX 100-240V/ 5AMAX
UNSWITCHED UNSWITCHED
100-240V/ 5AMAX 100-240V/ 5AMAX
Two AAP
Two AAP
Space Shelf Space Shelf
Figure 3-6 shows typical confi gurations before and after
you add a second US/Domestic power module to a
US/domestic Cable Cubby 800 and suggests rack shelf
confi gurations to replace the lost shelf space.
Before
UNSWITCHED
100-240V/ 5AMAX
UNSWITCHED
100-240V/ 5AMAX
Four AAP Four AAP
Space Shelf Space Shelf
Figure 3-6 — Cable Cubby 800 with second power
module
2 If the Phillips head screws on the front and rear of the
cubby are blocked by the table, remove the cubby from the
table. See Removing and Replacing the Cable Cubby, steps 1
through 4, earlier in this chapter.
3 Before you add an additional power module, you must
make room for the Cable Cubby by eliminating two
or three AAP spaces and the AAP shelf brackets that
support them. Remove the Phillips head screws on the
front and rear of the Cable Cubby and gently pushing the
assembly(s) out through the bottom of the cubby.
Cable Cubby ® Products • Maintenance and Modifi cations
After
UNSWITCHED
UNSWITCHED
100-240V/ 5AMAX 100-240V/ 5AMAX
UNSWITCHED UNSWITCHED
100-240V/ 5AMAX 100-240V/ 5AMAX
Two AAP
Four AAP
Space Shelf Space Shelf
or
UNSWITCHED UNSWITCHED
100-240V/ 5AMAX 100-240V/ 5AMAX
UNSWITCHED UNSWITCHED
100-240V/ 5AMAX 100-240V/ 5AMAX
Three AAP Three AAP
Space Shelf Space Shelf
3-9
