Packaging for Shipment, cont'd
H
W

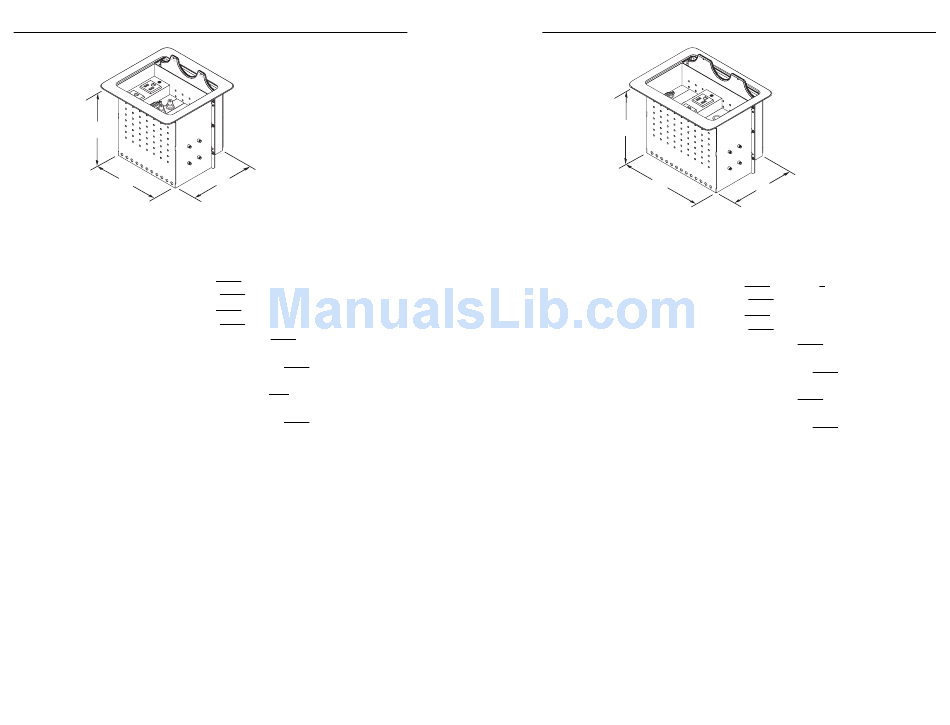

Cable Cubby 600
Cable Cubby 600
Top plate (outer rim) ................... 6.960" W x 6.960" D
Surface cutout (inside rim) ......... 6.460 ±0.0325" W x 6.460 ±0.0325" D
Box (under surface) ..................... 6.410" H x 6.400" W (front/rear of
®
A-4 Cable Cubby Products • Packaging for Shipment
D
(17.68 cm W x 17.68 cm D)
(16.41 ±0.083 cm W x 16.41 ±0.083 cm D)
unit) x 4.750" D without clamps
(16.28 cm H x 16.26 cm W x 12.07 cm D)
without clamps
6.410" H x 8.67" W x 4.750" D with
clamps
(16.28 cm H x 22.02 cm W x 12.07 cm D)
with clamps
H
W
Cable Cubby 800
Cable Cubby 800
Top plate (outer rim) ................... 8.360" W x 6.820" D
Surface cutout (inside rim) ........ 7.860 ±0.0325" W x 6.320 ±0.0325" D
Box (under surface) ..................... 6.410" H x 7.800" W (front/rear of
Cable AAP cable hole diameters
Large cable hole ................. 0.63" (1.60 cm)
Large grommet .................. 0.45" (1.14 cm)
Medium cable hole ............ 0.56" (1.42 cm)
Medium grommet ............. 0.39" (0.99 cm)
Small cable hole ................. 0.50" (1.27 cm)
Small grommet .................. 0.31" (0.79 cm)
Product weight
Cable Cubby 200 ................ 2.5 lbs (1.1 kg)
Cable Cubby 300S/300C .. 5.0 lbs (2.3 kg)
Cable Cubby 600................ 9.0 lbs (4.1 kg)
Cable Cubby 800................ 13.0 lbs (5.9 kg)
Cable Cubby ® Products • Packaging for Shipment
D
(21.23 cm W x 17.32 cm D)
(19.96 ±0.083 cm W x 16.05 ±0.083 cm D)
unit) x 4.750" D without clamps
(16.28 cm H x 19.81 cm W x 12.07 cm D)
without clamps
6.410" H x 10.07" W x 4.750" D with
clamps
(16.28 cm H x 25.58 cm W x 12.07 cm D)
with clamps
