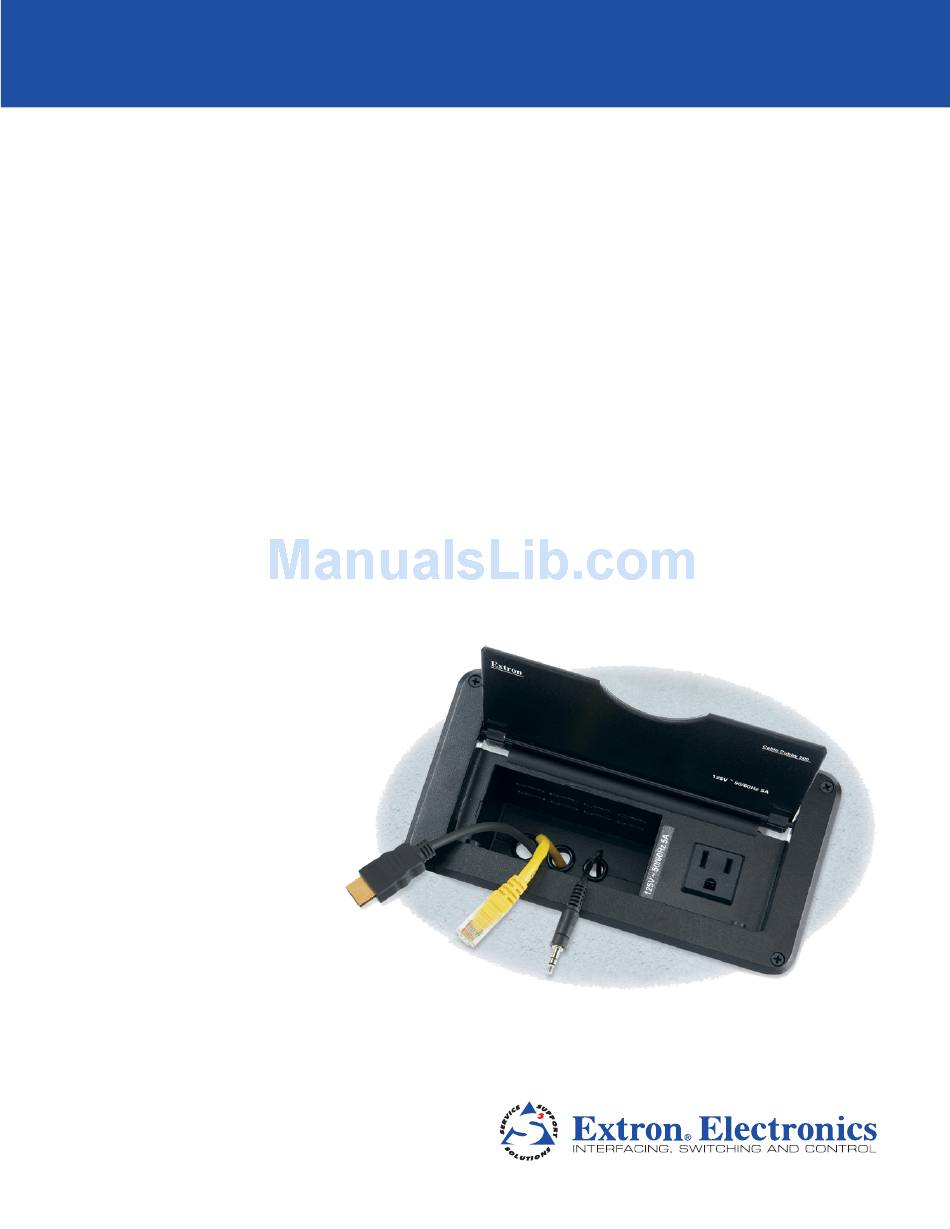

- Page 1 User Guide Architectural Connectivity Cable Cubby ® Cable Access Enclosure 68-1557-01 Rev. A 10 12...
-
Page 2: Safety Instructions
Safety Instructions Safety Instructions • English Chinese Simplified （简体中文） 警告： 产品上的这个标志意在警告用户该产品机壳内有暴露的危险 WARNING: This symbol, , when used on the product, is intended to alert the user of the presence of uninsulated dangerous voltage 电压， 有触电危险。 within the product’s enclosure that may present a risk of electric shock. - Page 3 Conventions Used in this Guide The following notifications are used: CAUTION: A caution indicates a situation that may result in minor injury. Attention indicates a situation that may damage or destroy the product or ATTENTION: associated equipment. NOTE: A note draws attention to important information. Specifications Availability: Product specifications are available on the Extron website, www.extron.com.
-
Page 5: Table Of Contents
Kit Contents ............Included Parts ............ 2 Extron Warranty ..........Before Getting Started ........About the Cable Cubby 200 ....... 3 Planning ............. 4 Tools and Equipment Required for Installation ............ 4 Installation .............. Installation Overview ........... 5 Preparing the Table ..........6 Prepare the Routing Template ...... -
Page 6: Introduction
Introduction Overview The Extron Cable Cubby 200 is a furniture-mounted, architectural solution that provides inconspicuous cable access and connection points. When cables are not in use, they can be stored out of the way while remaining connected to the presentation system. Lift the lid to access the AAPs and connectors. -
Page 7: Kit Contents
Kit Contents Included Parts Image Part Quantity Cable Cubby 200 enclosure Cable pass-through AAPs Cable stand-offs Mounting screws (6-32 x 3/4 inch) Grommet and hole plug kit Cable Cubby 200 • Kit Contents... -
Page 8: Before Getting Started
Figure 1. Cable Cubby 200 Enclosure with Populated AAPs The Cable Cubby 200 provides an unswitched AC power outlet appropriate to local distribution regions. Several different types of power receptacles are available, including US/domestic, UK, French, Australian, European, and universal receptacles. -
Page 9: Planning
Ensure that the correct template or dimensions are used. NOTE: The table to host the Cable Cubby 200 must have a thickness of at least 3/8 inch (9.5 mm) to ensure that there is enough table material for the mounting screws to securely fasten the Cable Cubby to the table. -
Page 10: Installation
“Install Optional Passive AAPs” on page 8). Mount the Cable Cubby into the mounting surface (see “Mounting the Cable Cubby” on page 9). Peel the protective film from the top surface. Connect the Cable Cubby power cord. Cable Cubby 200 • Installation... -
Page 11: Preparing The Table
Sandwich Table Between Soft Lumber is not responsible for improperly positioned Cable Cubby models. Secure the assembly to the table with C-clamps. Use an additional lumber strip underneath the tabletop to buffer it from the C-clamps. Cable Cubby 200 • Installation... -
Page 12: Installing And Cabling Aaps
Installing and Cabling AAPs The Cable Cubby 200 has a fixed AAP shelf. Three half-moon cutouts in the set of cable pass-through (split) AAPs loosely channel three cables in the Cable Cubby. Each channel and each associated split grommet is a different size. Match the diameter of the cable to the size of the channel. -
Page 13: Install Any Necessary Split Grommets And Hole Plugs
If necessary, snap the included hole plugs into unused holes. 4. Adjust the Cable Position The Cable Cubby 200 has four cable stand-offs that set the height of the cables inside the enclosure. Ü Choose the row that best lifts the cable... -
Page 14: Mounting The Cable Cubby
The Extron Cable Retractor provides a convenient way to dress cables (see www.extron.com for Cable Retractor part numbers). Connect to AV Device or System Secure cables w/ zip ties Power Cord to holes in rear of Cable Cubby. Cable Cubby 200 • Installation... -
Page 15: Reference Information
Reference Information This section provides part numbers for the Cable Cubby 200 and related products. Visit the Extron website, www.extron.com, for more details and part numbers. Topics in this section include: • Enclosure Part Numbers • Included Accessories Part Numbers •... -
Page 16: Routing Template Part Numbers
Part Numbers Grommet and hole plug kit 70-387-01 Routing Template Part Numbers The Cable Cubby 200 metal routing template (see figure 3) is the only preferred and recommended method for cutting the table. It is available on the Extron website, www.extron.com. -
Page 17: Top Plate Dimensions
7.312 0.0325" (18.57 0.083 cm) 0.5" (1.3 cm) Top Panel Cut-Out Radius: Cut surface material 0.25" out along this line. (0.6 cm) TEMPLATE IS NOT FULL SIZE. Figure 4. Cable Cubby 200 Reference Information Cable Cubby 200 • Reference Information... -
Page 18: Extron Warranty
Extron Warranty Extron Electronics warrants this product against defects in materials and workmanship for a period of three years from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components, to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with proof of purchase and description of malfunction to: USA, Canada, South America,...
