Installation, cont'd
Preparing the table with a hole saw
(Cable Cubby 300C only)
Prepare the table with a hole saw as follows:
1. On the tabletop or other installation surface, mark the 6"
circle, then fi nd and mark the center of the circle.
W
Wear safety glasses when operating the drill.
Failure to comply can result in eye injury.
Using a portable drill with a 6" (or 152 mm) hole saw,
2.
carefully cut the opening in the table surface at the
desired location (fi gure 2-3). Extron is not responsible for
improperly positioned Cable Cubbies.
C
Use a portable drill with suffi cient power to handle
the 6" hole saw. Exercise caution when handling
the drill and hole saw. Take care to protect the
mounting surface from damage.

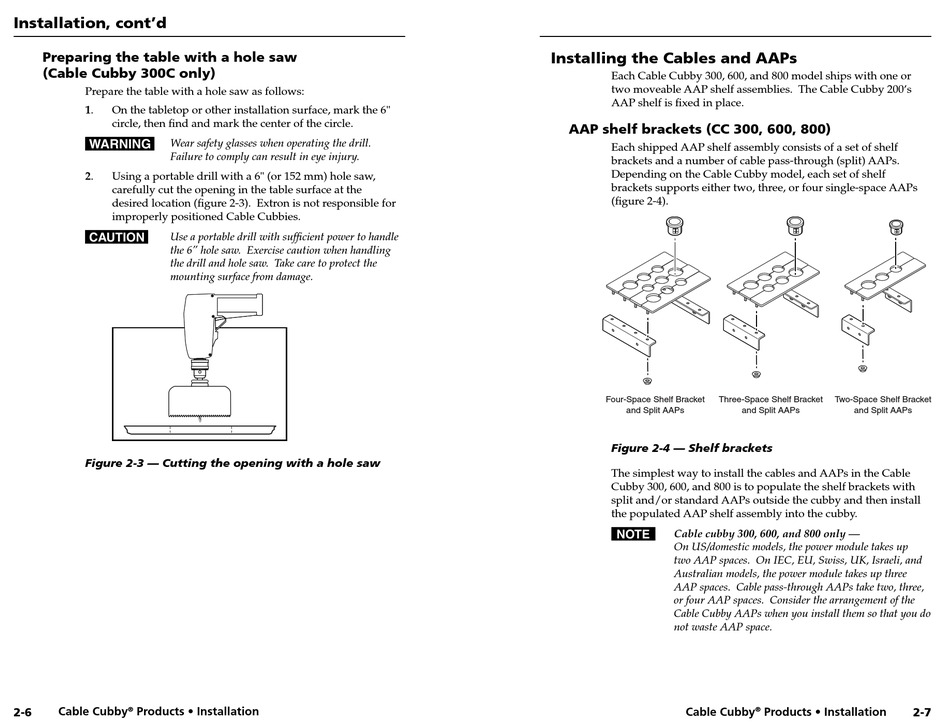

Figure 2-3 — Cutting the opening with a hole saw
®
2-6 Cable Cubby Products • Installation

Installing the Cables and AAPs

Each Cable Cubby 300, 600, and 800 model ships with one or
two moveable AAP shelf assemblies. The Cable Cubby 200's
AAP shelf is fi xed in place.

AAP shelf brackets (CC 300, 600, 800)

Each shipped AAP shelf assembly consists of a set of shelf
brackets and a number of cable pass-through (split) AAPs.
Depending on the Cable Cubby model, each set of shelf
brackets supports either two, three, or four single-space AAPs
(fi gure 2-4).
Four-Space Shelf Bracket Three-Space Shelf Bracket
and Split AAPs
Figure 2-4 — Shelf brackets
The simplest way to install the cables and AAPs in the Cable
Cubby 300, 600, and 800 is to populate the shelf brackets with
split and/or standard AAPs outside the cubby and then install
the populated AAP shelf assembly into the cubby.
N
Cable cubby 300, 600, and 800 only —
On US/domestic models, the power module takes up
two AAP spaces. On IEC, EU, Swiss, UK, Israeli, and
Australian models, the power module takes up three
AAP spaces. Cable pass-through AAPs take two, three,
or four AAP spaces. Consider the arrangement of the
Cable Cubby AAPs when you install them so that you do
not waste AAP space.
Cable Cubby
Two-Space Shelf Bracket
and Split AAPs and Split AAPs
® Products • Installation 2-7
