5 Route the audio cables through the rear cable clamp
openings of the interface, as shown below.
Audio cables are routed through
the rear cable clamp openings
Connect powered speakers or another audio device to the
included captive screw connectors. Insert the audio device
wires into the captive screw connector and tighten the
captive screws to fasten the wires, then insert the wired
audio connector into the audio output connector of the
Active Audio AAP plate before installing the AAP plate into
the interface.
6 Install the Active Audio AAP adapter into the interface using
the four nuts and replace the interface's top cover. Mount
the interface in a rack or furniture and connect the power
cords and turn on the devices in the following order: display
and audio output devices, the interface, and input device
(computer).

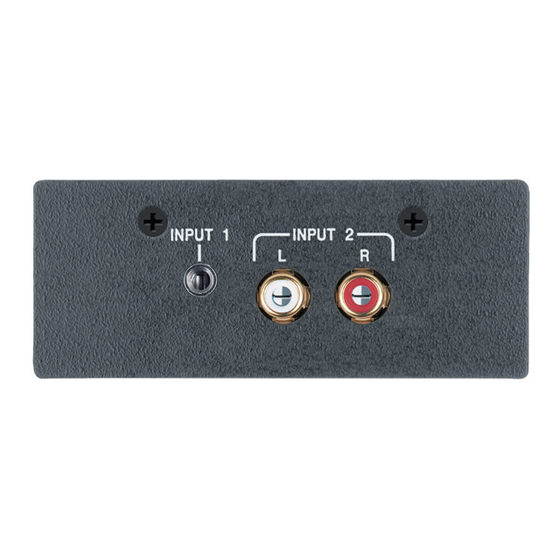

Active Audio AAP Kit
Active Audio Buffering Unbalanced to
Balanced Stereo Audio Kit
Extron Electronics, USA Extron Electronics, Europe
1230 South Lewis Street Beeldschermweg 6C
Anaheim, CA 92805 3821 AH Amersfoort
USA The Netherlands
714.491.1500 +31.33.453.4040
www.extron.com Fax 714.491.1517 Fax +31.33.453.4050
© 2001 Extron Electronics. All rights reserved.
ED
IT CH
SW
UN
.
M AX
TS
W AT
60 0
Cable Routing
x i
3 8
B 1 P
/A DS
R G E W
RF AC
TE X
L IN MI N/ MA
SA
IV ER
UN
MB C
IN PU TS OG
AL W ER
AN
PO
DI O
AU
Connect the sleeve to ground (GND).
Connecting the sleeve to a negative (-)
terminal will damage the audio output circuits.
Unbalanced Output
Tip
See Warning
Sleeve (s)
Tip
See Warning
Balanced Output
Tip
Ring
Sleeve (s)
Tip
Ring
Part number
70-110-04
Extron Electronics, Asia Extron Electronics, Japan
135 Joo Seng Road, #04-01 Daisan DMJ Building 6F
PM Industrial Building 3-9-1 Kudan Minami
Singapore 368363 Chiyoda-ku, Tokyo 102-0074 Japan
+65.6383.4400 +81.3.3511.7655
Fax +65.6383.4664 Fax +81.3.3511.7656
User's Guide
Active Audio AAP Installation Kit
RGB 138 xi xi xi xi xi and 168 xi xi xi xi xi
68-640-01 Rev. A
Printed in the USA
12 01
