Extron electronics Cables and Adapters 13W3-to-VGA User Manual

13W3 Connector Pinout
Pin IBM IBM
Power PC RISC
A1 Red Red
A2 Green Green
A3 Blue Blue
1 ID 2 ID 2
2 ID 3 ID 3
3 Self-test Gnd
4 Dig. Gnd N/C
5 H. sync H. sync
6 ID 0 N/C
7 ID 1 ID 1
8 N/C ID 0
9 V. sync V. sync
10 Dig. Gnd Dig. Gnd

Part Numbers

This manual covers the following cables and adapters:
Extron Part

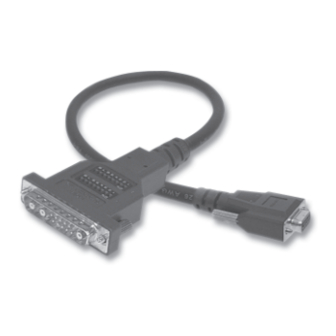

13W3M to VGAM cable, 6'
13W3M to VGAM cable, with audio, 6'
13W3M to VGAF adapter
13W3M to VGAF adapter, with hex nut
13W3F to VGAM adapter
13W3F to VGAM cable, 1'
This manual covers the following products, which include one or
more of the cables or adapters listed above:
Extron Part
Adapter kits for VSC 500/ VSC 700 / VSC 900
13W3M–VGAM, 13W3F–VGAM cable kit
13W3M–VGAM, with audio, 13W3F–VGAM cable kit 70-157-03
RGB 190FS
RGB 190FV and cable kit
RGB 192S
RGB 203xi VTG and cable kit
RGB 160xi
RGB 192V and cable kit
Extron Electronics, USA Extron Electronics, Europe
1230 South Lewis Street Beeldschermweg 6C
Anaheim, CA 92805 3821 AH Amersfoort, The Netherlands
800.633.9876 714.491.1500 +800.3987.6673 +31.33.453.4040
FAX 714.491.1517 FAX +31.33.453.4050
www.extron.com
© 2008 Extron Electronics. All rights reserved.
Silicon Sun Sun Dell/
Graphics SPARC (older) Hitachi
Red Red Red Red
Green Green Green Green
Blue Blue Blue Blue
Mon 3 Serial read N/C DDC clock
Mon 0 V. sync N/C N/C
C. sync Sense 0 Sense 2 Reserved
H. sync Gnd Gnd DDC Gnd
V. sync C. sync C. sync C. Sync/H. Sync
Mon 1 H. sync N/C DDC data
Mon 2 Serial write N/C V. sync
Dig. Gnd Sense 1 Sense 1 N/C
Dig. Gnd Sense 2 Sense 0 Reserved
Dig. Gnd Gnd Gnd. Serial Gnd
Part #
26-527-23
26-527-03
26-492-03
26-492-04
26-487-03
26-480-03
Part #
70-116-03
70-157-23
60-486-65
42-026-63
60-486-04
42-055-03
42-056-03
42-054-03
Extron Electronics, Asia Extron Electronics, Japan
135 Joo Seng Rd. #04-01 Kyodo Building, 16 Ichibancho
PM Industrial Bldg., Singapore 368363 Chiyoda-ku, Tokyo 102-0082
+800.7339.8766 +65.6383.4400 Japan
FAX +65.6383.4664 +81.3.3511.7655 FAX +81.3.3511.7656
User's Guide
13W3-to-VGA Cables and Adapters
68-396-03 Rev. B
