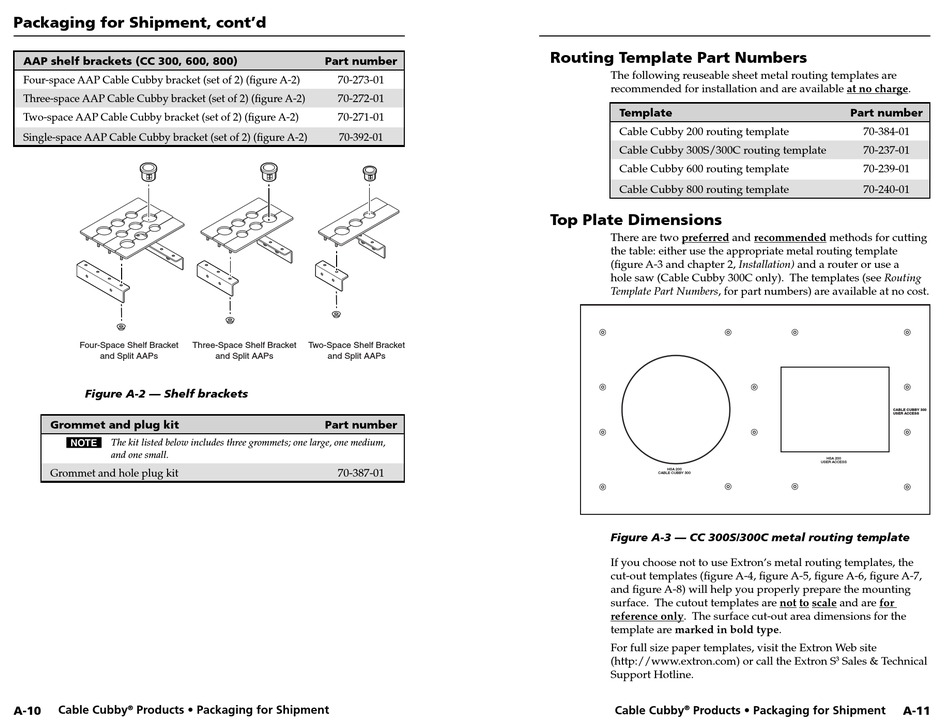

Packaging for Shipment, cont'd
AAP shelf brackets (CC 300, 600, 800)
Four-space AAP Cable Cubby bracket (set of 2) (fi gure A-2)
Three-space AAP Cable Cubby bracket (set of 2) (fi gure A-2)
Two-space AAP Cable Cubby bracket (set of 2) (fi gure A-2)
Single-space AAP Cable Cubby bracket (set of 2) (fi gure A-2)
Four-Space Shelf Bracket
and Split AAPs
Figure A-2 — Shelf brackets
Grommet and plug kit
N The kit listed below includes three grommets; one large, one medium,
and one small.
Grommet and hole plug kit
®
A-10 Cable Cubby Products • Packaging for Shipment
Part number
70-273-01
70-272-01
70-271-01
70-392-01
Three-Space Shelf Bracket Two-Space Shelf Bracket
and Split AAPs and Split AAPs
Part number
70-387-01

Routing Template Part Numbers

The following reuseable sheet metal routing templates are
recommended for installation and are available at no charge.
Template
Cable Cubby 200 routing template
Cable Cubby 300S/300C routing template
Cable Cubby 600 routing template
Cable Cubby 800 routing template

Top Plate Dimensions

There are two preferred and recommended methods for cutting
the table: either use the appropriate metal routing template
(fi gure A-3 and chapter 2, Installation) and a router or use a
hole saw (Cable Cubby 300C only). The templates (see Routing
Template Part Numbers, for part numbers) are available at no cost.
HSA 200
CABLE CUBBY 300
Figure A-3 — CC 300S/300C metal routing template
If you choose not to use Extron's metal routing templates, the
cut-out templates (fi gure A-4, fi gure A-5, fi gure A-6, fi gure A-7,
and fi gure A-8) will help you properly prepare the mounting
surface. The cutout templates are not to scale and are for
reference only. The surface cut-out area dimensions for the
template are marked in bold type.
For full size paper templates, visit the Extron Web site
(http://www.extron.com) or call the Extron S
Support Hotline.
Cable Cubby ® Products • Packaging for Shipment
Part number
70-384-01
70-237-01
70-239-01
70-240-01
CABLE CUBBY 300
USER ACCESS
HSA 200
USER ACCESS
3 Sales & Technical
A-11
