Extron electronics PVT HDMI Installation Instructions Manual

PVT HDMI • Installation Guide
AUDIO IN
AUDIO IN
HDMI IN
HDMI IN
IR OUT
G
S
Installation
NOTES:
• Install the wallplate directly into the wall using the supplied mud ring or a UL Listed
2-gang junction box (not supplied) such as a RACO 232, following the steps below.
• If installing a junction box, allow enough depth for the wallplate and cables. Take into
consideration the bend radius of the cable, providing suitable strain relief and maintaining
the cable bend. Do not bend the cables 90 degrees.
• Conduit and conduit adapters should be used.
1.
Using the mud ring or a junction box as a guide, mark the edges and cut out the material
within the marked area of the mounting
location.
2.
Either:
•
Insert the mud ring into the opening,
rotate the locking arms, and secure it with
the supplied screws,
or
•
Insert the wall box and secure it with
nails or screws.
3.
Run the XTP DTP 24 cable from the PoleVault
switcher location, going behind the wall and
to the PVT location, then thread the cables
through the mud ring or wall box.
Provide strain relief and maintain optimum
cable bend radius (see Notes above).
NOTES:
• Extron highly recommends shielded
twisted pair (STP) cabling with shielded
RJ-45 plugs.
•
The XTP DTP 24 cables supplied are
terminated to TIA 568B standard.
4. Plug the XTP DTP 24 cable from the PoleVault
switcher into the RJ-45 connector labeled
PVT OUT on the rear of the wallplate.

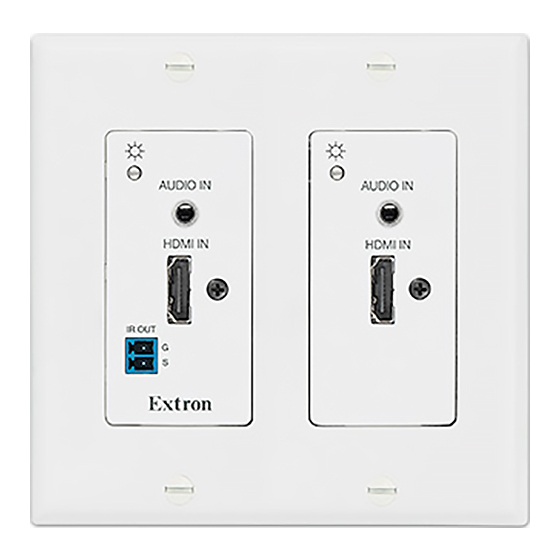

The Extron PVT HDMI is a 2-gang
®
AV wallplate for PoleVault
that support the PVS 407D switcher. It passes HDMI/DVI
video with analog stereo audio signals to a PoleVault digital
switcher up to 150 feet away over shielded twisted pair
(XTP DTP 24) cable. The PVT has two HDMI connectors, two
audio input jacks, and one IR connector (on the left front panel).
NOTE:
This device is compatible only with the PVS 407D.
It is not compatible with the PVS 405D or other XTP/DTP
devices.
, PlenumVault and WallVault
® ®
XTP DTP 24 Cable
from PoleVault Switcher
Decora
Faceplate
Pins:
568A
12345678
Pin Wire Color
1
White-green
2 Green
3 White-orange
4 Blue
5 White-blue
6 Orange
Insert Twisted
Pair Wires 7
White-brown
RJ-45
8 Brown
Connector
Systems
®
Wall
Mud Ring
Extron
PVT HDMI
IN
D IO
A U
IN
M I
IN
D IO H D
A U
M I IN
H D
T
O U
IR G
S
®
568B
Wire Color
White-orange
Orange
White-green
Blue
White-blue
Green
White-brown
Brown
