Fujitsu ServerView Virtual-IO Manager V3.1 User Manual page 188

5 Virtual-IO Manager user interface

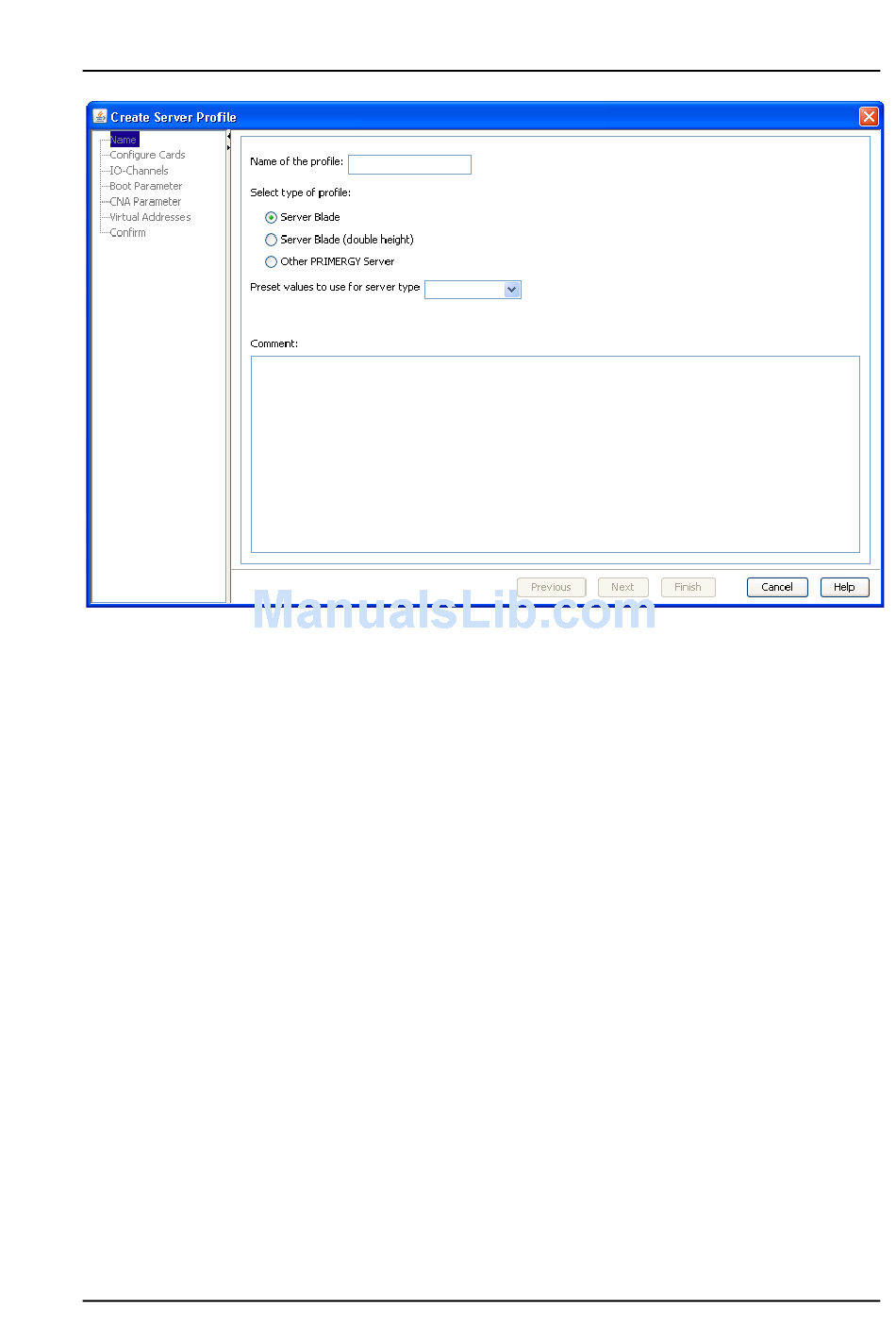

Figure 42: Name step
Name of the profile
Name of the server profile. If a profile already exists with this name or
the name is invalid, the name is marked in red.
Select type of profile
The target type to which this profile should be assignable:
Server Blade
This profile can be assigned to slots of a blade server.
Server Blade (double height)
This profile can be assigned to two slots of a BX900 which are one
over the other.
Other PRIMERGY Server
The profile can be assigned to a PRIMERGY rack server.
Preset values to use for server type
Server model (optional).
188 ServerView Virtual-IO Manager
