Fujitsu ServerView Virtual-IO Manager V3.1 User Manual page 185

internally adjusted accordingly.
5.4.2.4 Add Networks step (Edit Uplink Set wizard - VLAN network)
Add Networks is the second step in the Edit Uplink Set wizard if a VLAN
network is edited.

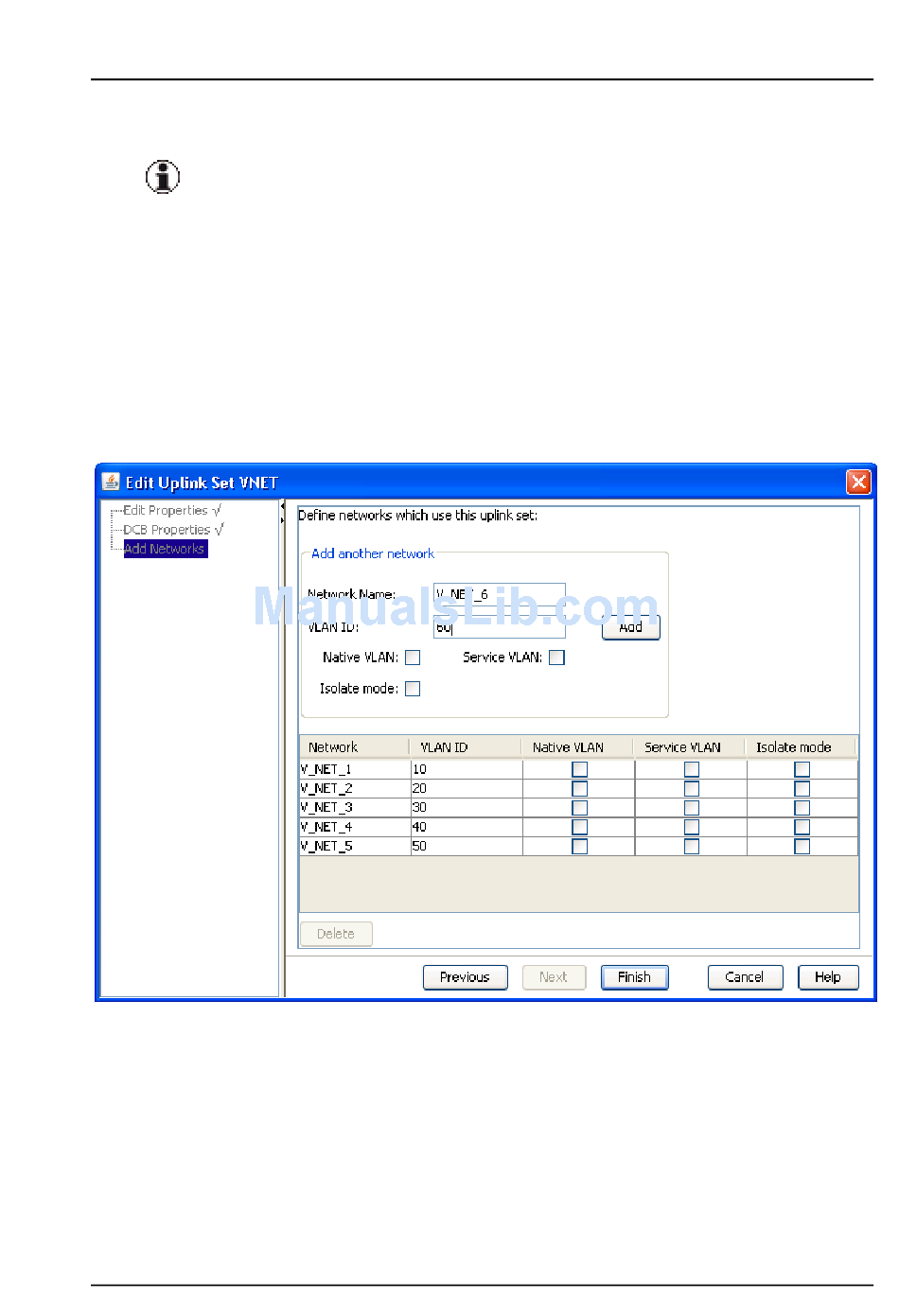

Figure 41: Edit Uplink Set wizard (second step)
In this step, you assign meaningful names for the networks defined via VLAN
IDs, which are to be assigned to the uplink set defined in the previous step.
ServerView Virtual-IO Manager
This is the bandwidth reserved for the FCoE function.
The FCoE function might share the complete bandwidth
of 10 Gb with other functions. A value of 60, for exam-
ple, means that a bandwidth of at least 6 Gb/sec is
reserved for the FCoE packages.
5.4 Wizards
185
