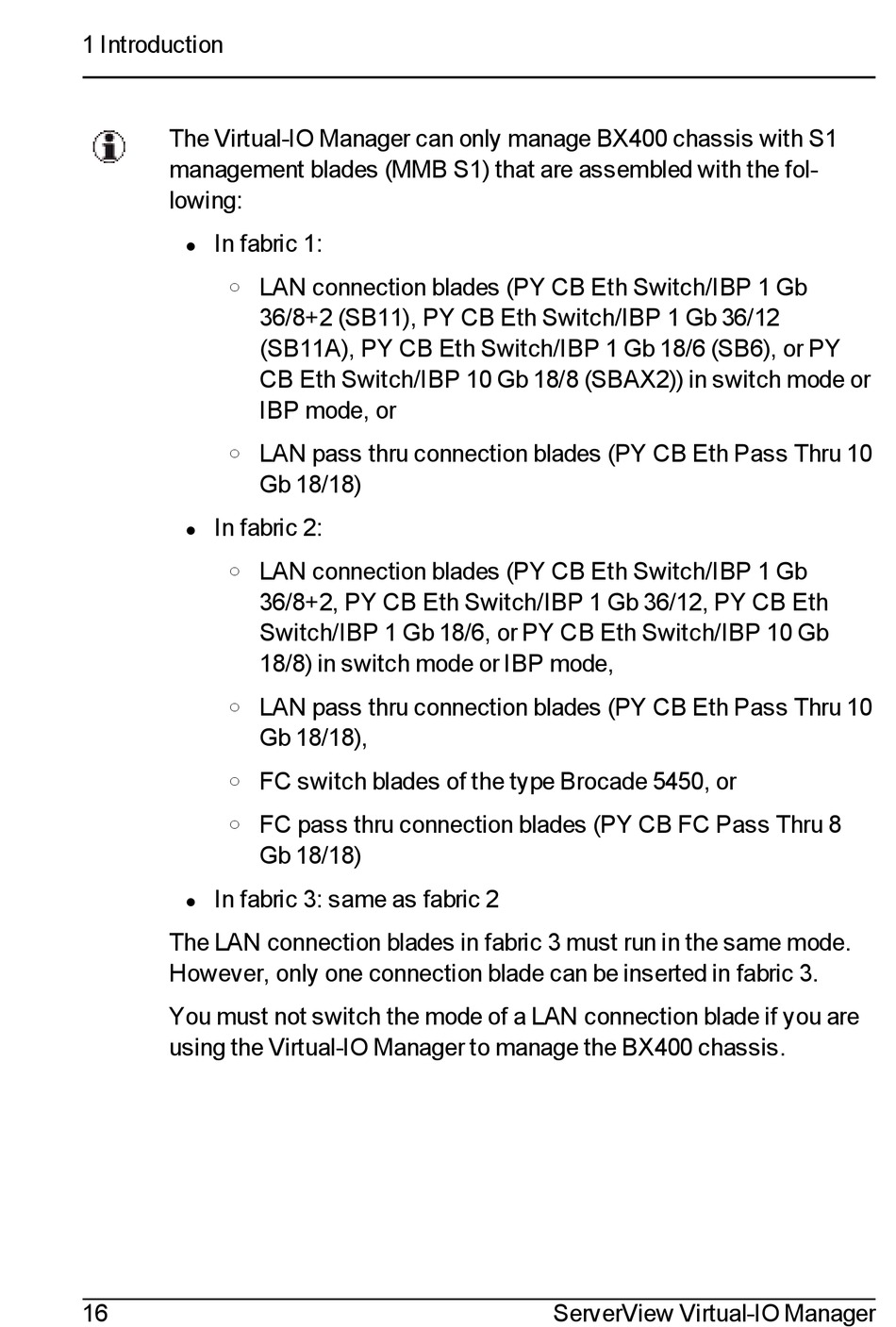

1 Introduction
The Virtual-IO Manager can only manage BX400 chassis with S1
management blades (MMB S1) that are assembled with the fol-
lowing:
In fabric 1:
l
o
o
In fabric 2:
l
o
o
o
o
In fabric 3: same as fabric 2
l
The LAN connection blades in fabric 3 must run in the same mode.
However, only one connection blade can be inserted in fabric 3.
You must not switch the mode of a LAN connection blade if you are
using the Virtual-IO Manager to manage the BX400 chassis.
16
LAN connection blades (PY CB Eth Switch/IBP 1 Gb
36/8+2 (SB11), PY CB Eth Switch/IBP 1 Gb 36/12
(SB11A), PY CB Eth Switch/IBP 1 Gb 18/6 (SB6), or PY
CB Eth Switch/IBP 10 Gb 18/8 (SBAX2)) in switch mode or
IBP mode, or
LAN pass thru connection blades (PY CB Eth Pass Thru 10
Gb 18/18)
LAN connection blades (PY CB Eth Switch/IBP 1 Gb
36/8+2, PY CB Eth Switch/IBP 1 Gb 36/12, PY CB Eth
Switch/IBP 1 Gb 18/6, or PY CB Eth Switch/IBP 10 Gb
18/8) in switch mode or IBP mode,
LAN pass thru connection blades (PY CB Eth Pass Thru 10
Gb 18/18),
FC switch blades of the type Brocade 5450, or
FC pass thru connection blades (PY CB FC Pass Thru 8
Gb 18/18)
