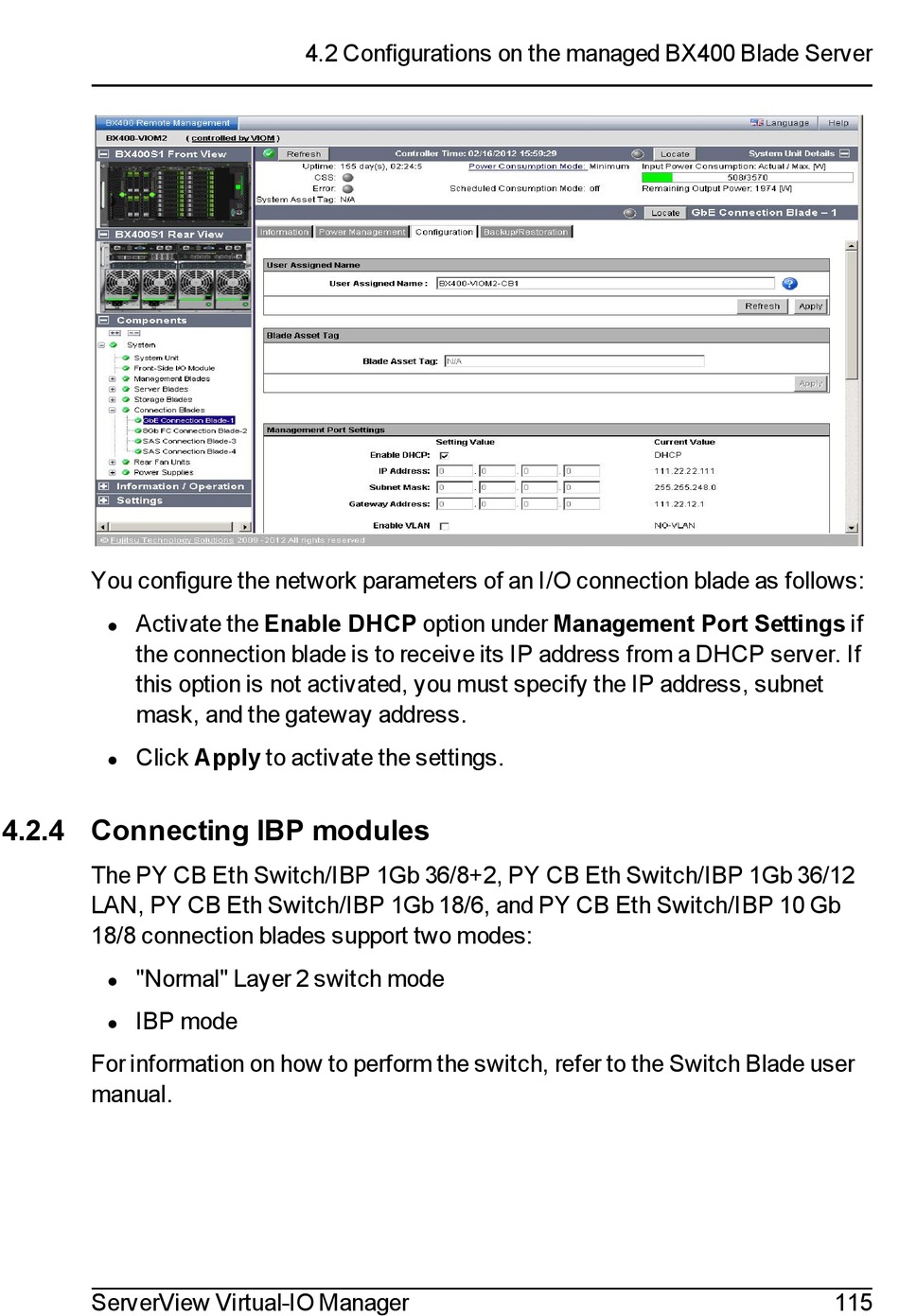

You configure the network parameters of an I/O connection blade as follows:
Activate the Enable DHCP option under Management Port Settings if
l
the connection blade is to receive its IP address from a DHCP server. If
this option is not activated, you must specify the IP address, subnet
mask, and the gateway address.
Click Apply to activate the settings.
l

4.2.4 Connecting IBP modules

The PY CB Eth Switch/IBP 1Gb 36/8+2, PY CB Eth Switch/IBP 1Gb 36/12
LAN, PY CB Eth Switch/IBP 1Gb 18/6, and PY CB Eth Switch/IBP 10 Gb
18/8 connection blades support two modes:
"Normal" Layer 2 switch mode
l
IBP mode
l
For information on how to perform the switch, refer to the Switch Blade user
manual.
