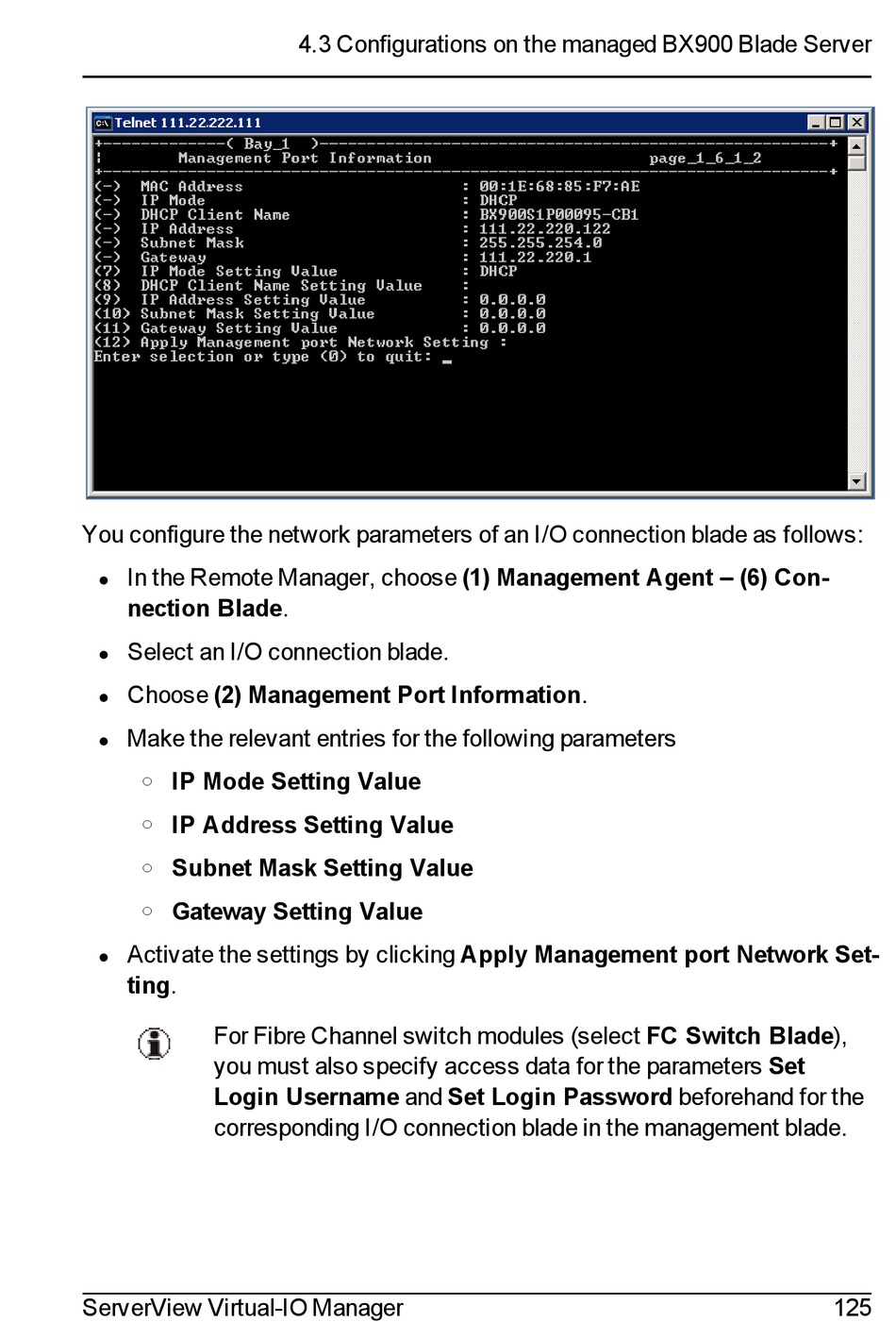

Fujitsu ServerView Virtual-IO Manager V3.1 User Manual page 125

You configure the network parameters of an I/O connection blade as follows:
In the Remote Manager, choose (1) Management Agent – (6) Con-
l
nection Blade.
Select an I/O connection blade.
l
Choose (2) Management Port Information.
l
Make the relevant entries for the following parameters
l
IP Mode Setting Value
o
IP Address Setting Value
o
Subnet Mask Setting Value
o
Gateway Setting Value
o
Activate the settings by clicking Apply Management port Network Set-
l
ting.
For Fibre Channel switch modules (select FC Switch Blade),
you must also specify access data for the parameters Set
Login Username and Set Login Password beforehand for the
corresponding I/O connection blade in the management blade.
ServerView Virtual-IO Manager
4.3 Configurations on the managed BX900 Blade Server
125
