LAN Connections & Cabling
The printer server may be connected to the network with one of these cables.
•
Unshielded twisted-pair (UTP) with an RJ-45 connector
•
Shielded Twisted-pair (STP) with a DB9 connector
CAUTION: Do not connect network cables to both the UTP

Unshielded Twisted-Pair UTP Connection

1) Connect one end of the UTP cable to the printer server UTP port.
See Appendix for UTP pinout details.
2) Connect the other end of the UTP cable to the Token Ring network.
3) Do not connect anything to the printer server STP port.
PWR PA NA

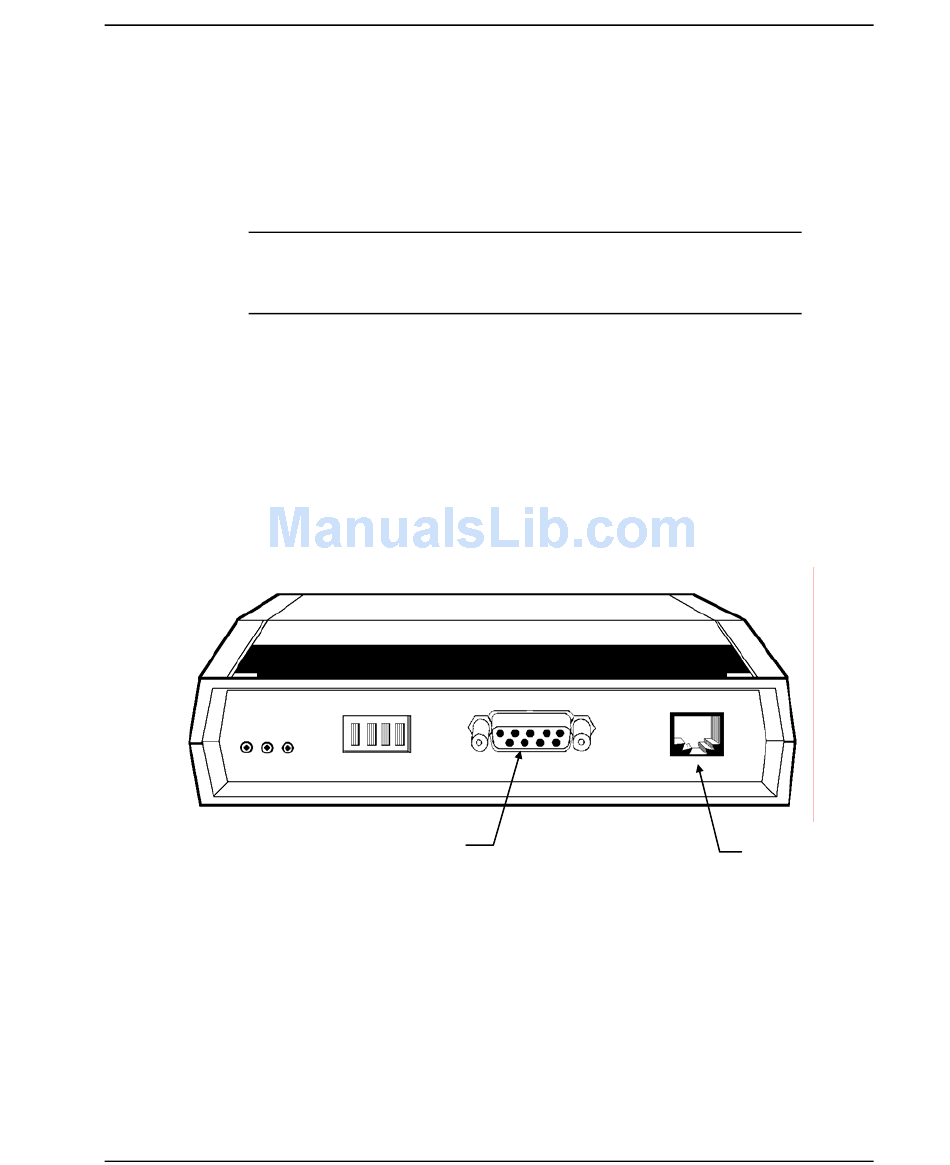

Figure 2-23: Printer Server LAN Connections
and the STP ports on the printer server at the
same time.
CONFIGURATION STP
STP Port
Printer Server Installation 2-41
UTP
UTP Port
