Power Up

1) Verify Emulex printer server is securely seated in printer slot.
2) Verify LAN connection to the printer server is secure.
3) Reattach AC power cord to printer.
4) Turn printer on.
Wait approximately 1 minute for the printer to perform self-tests. Tests
are complete when the printer's LCD displays Ready or the Ready
indicator light illuminates.

Display Lights (LEDs)

1) If the network is active, the yellow LAN LED-#2 will flash.
2) If the UTP connector is used, the green UTP LED-#1 will illuminate.
3) If the BNC connector is used, the green UTP LED-#1 will not illuminate.
UTP LED
CONSOLE UTP 1

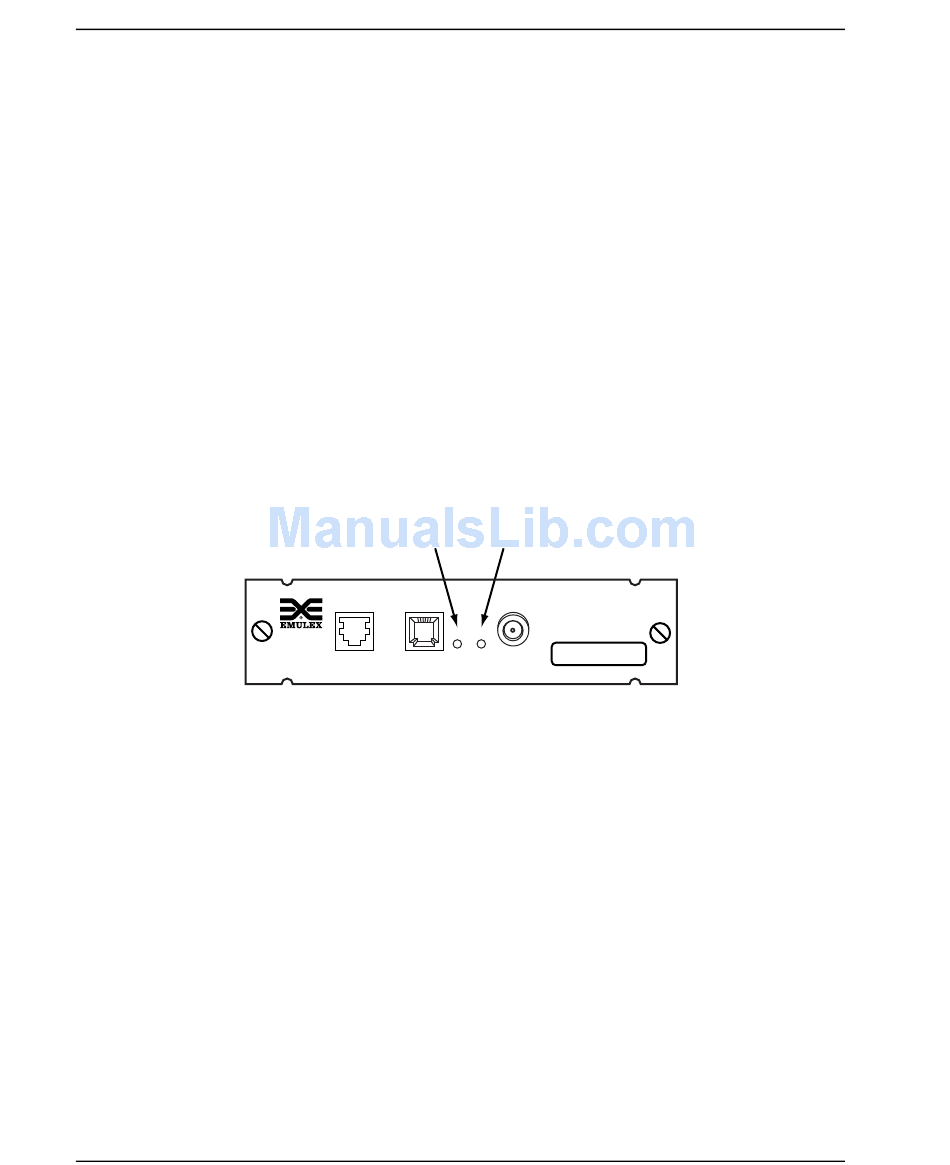

Figure 2-6: Printer Server Display LEDs
LAN LED
NETJet
MAC ADDRESS
00-00-C9-01-A0-6A
2 BNC
