2-16 Chapter 2

Peripheral Connections

Parallel Ports

The parallel ports provide female DB25 connectors and support the following
types of peripherals:
•
A printer or plotter supporting a Centronics parallel port
•
A printer or plotter supporting the bi-directional parallel interface
(IEEE 1284)
NOTE: The parallel cable between the printer server and
MAC ADDRESS
00-00-C9-01-A0-6A

Serial Port

Connect to the serial port with a null modem cable. The serial port provides a
male DB9 connector and allows user to:
•
Print to a serial printer or plotter.
•
Monitor the printer server by connecting an ANSII compatible terminal or
a PC running an ANSII terminal emulation program.
The Emulex default port configuration is set for 9600 bps, 8 data bits, no
parity, 1 stop bit, DTE type, with softcopy emulation.
•
Input print jobs directly by connecting to a host system serial port (e.g. an
HP 3000).
the printing device should not exceed 12 feet (3.65
meters).
Parallel 2
Serial Parallel 1

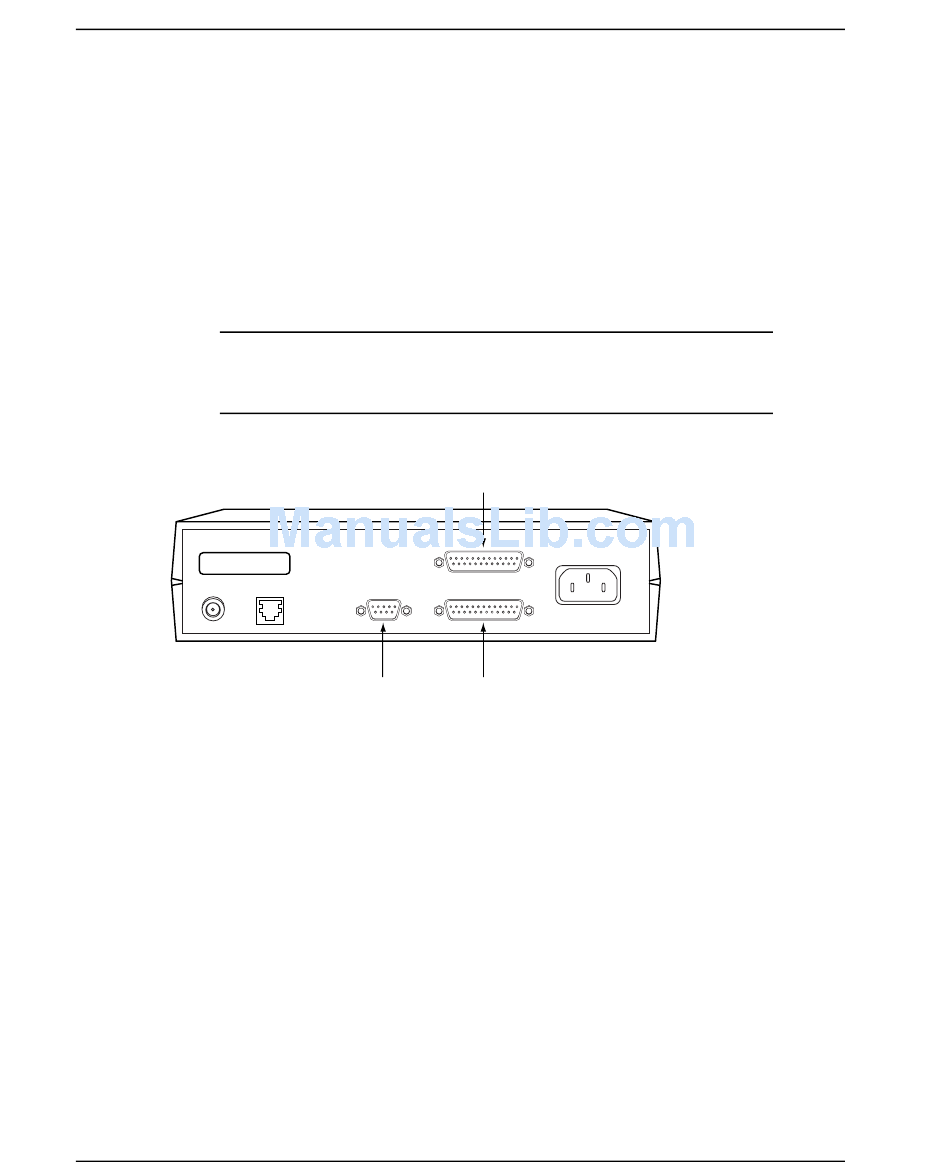

Figure 2-11: Peripheral Connections
POWER
