2-4 Chapter 2

Thinwire BNC Connection

CAUTION: Do not break the ethernet connection while
1) If connecting to the middle of a cable segment, use a BNC T-adapter.

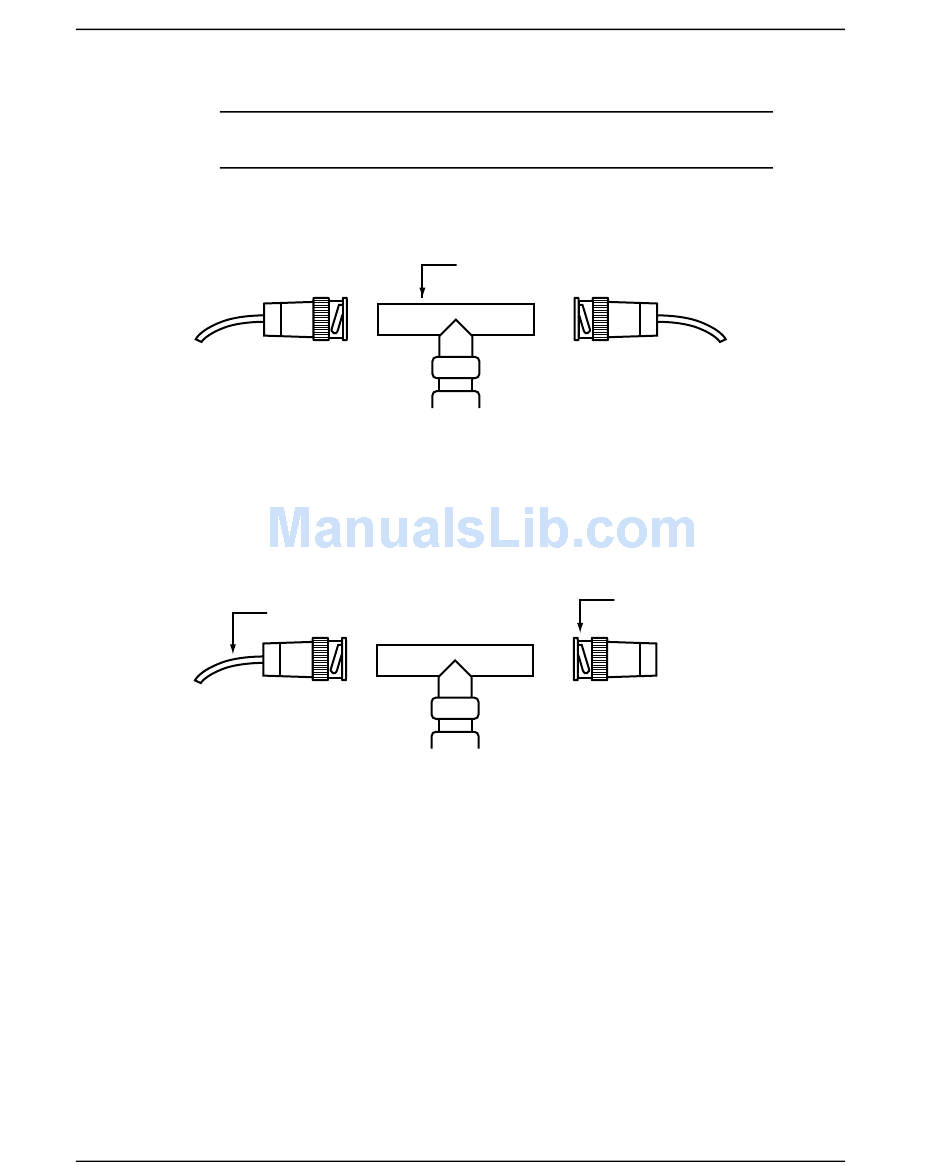

Figure 2-3: BNC T-Adapter Within a Segment
2) If connecting the printer server to the end of a cable segment, connect the
LAN cable to one side of the BNC T-adapter and a 50 ohm terminator to
the other side.
Figure 2-4: BNC T-Adapter With Terminator at End of Segment
3) Attach the BNC T-adapter and cable to the printer server BNC port.
4) Do not attach anything to the printer server UTP port.
LAN is active.
Segment of Thinwire
BNC T-Adapter
50 Ohm Terminator
