To determine the default printer name, enter the Emulex default printer server
name combined with the Emulex printer server port number. Port numbering
on the NETQue is as follows:
•
#1 - Parallel port
•
#2 - Serial port
For example, NQA0002E6_2 is the NETQue serial port.
Default Printer Name: NQA ____ ____ ____ ____ ____ ____ _ ____
LAN Connections & Cabling
The printer server may be connected to the network with one of these cables.
•
Unshielded twisted-pair (UTP) with an RJ-45 connector
•
Thinwire with a BNC connector and BNC T-adapter
CAUTION: Do not connect network cables to both the

Unshielded Twisted-Pair UTP Connection

1) Connect one end of the UTP cable to the printer server UTP port.
See Appendix for UTP pinout details.
2) Connect the other end of the UTP cable to the network.
3) Do not attach anything to the printer server BNC port.
Thinwire
Connector

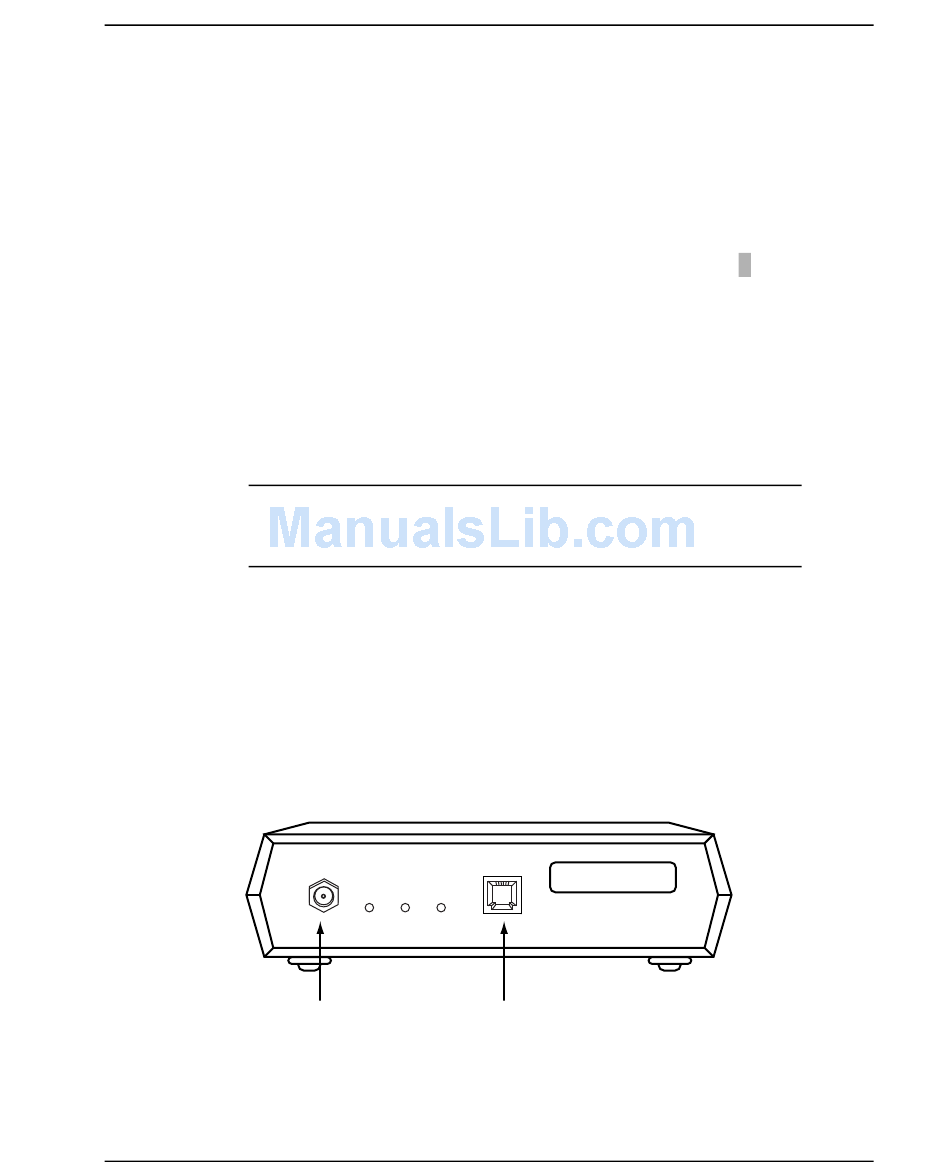

Figure 2-15: Printer Server LAN Connections
BNC and the UTP ports on the printer server
at the same time.
Twisted Pair
Connector
Printer Server Installation 2-27
ETHERNET ADDRESS
00-00-C9-01-A0-6A
