The View Windows

The View Windows
As noted in the discussion on page 24, the AltiAdmin main window hosts
a number of child windows, which are called view windows in AltiWare
because they provide various views into the internal system setup and
active status.

Boards View Window

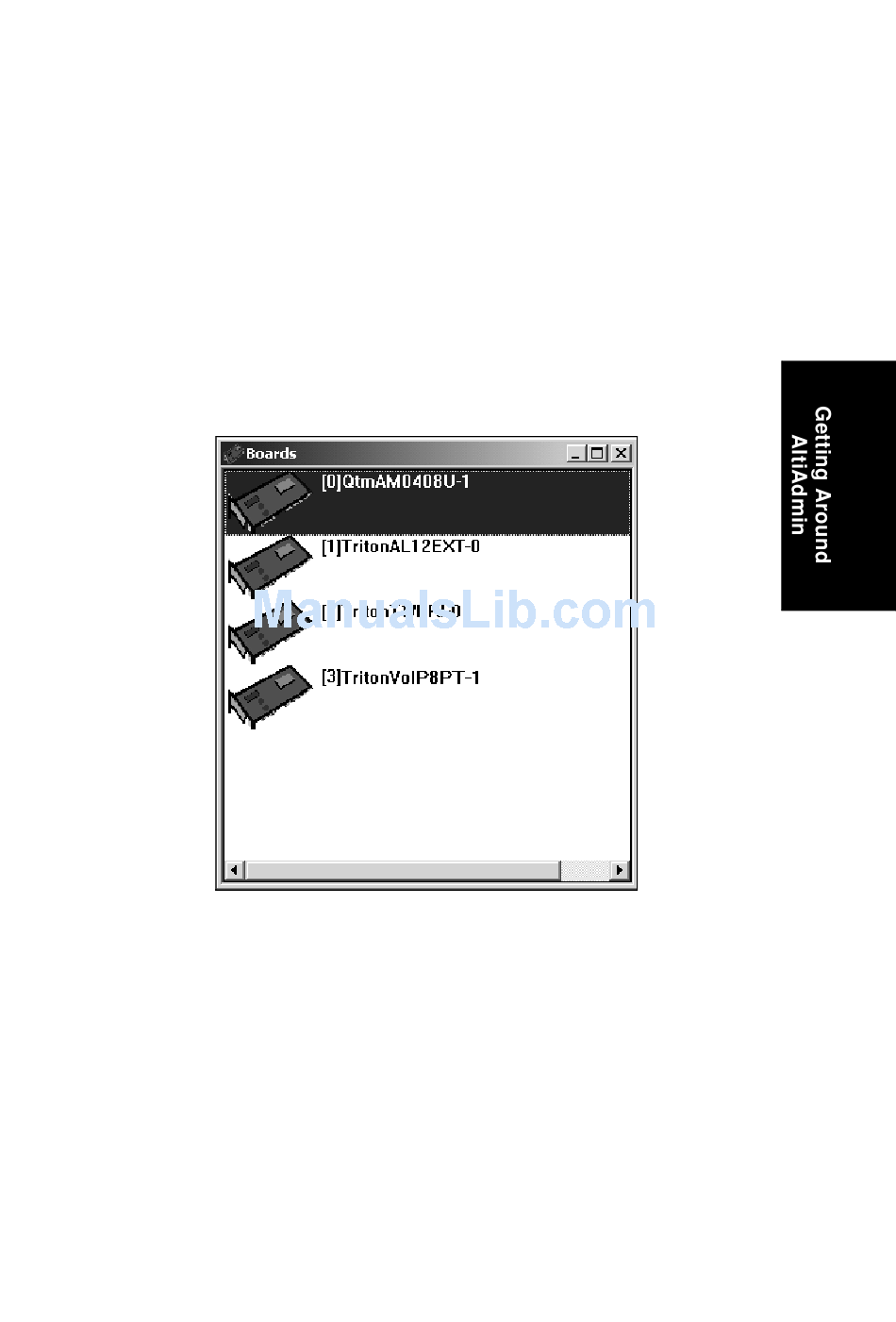

The graphic below is an example of a Boards window. This window
displays the AltiServ Quantum or Triton boards hardware status. It displays
the card location in the ISA or PCI slots and board model numbers.
Figure 3. Boards window
Each board is represented by a board icon, followed by the logical ID ([0],
the sequential location of the board), card model number (name of the
board) and physical ID (the ID set using the dial on the faceplate of the
board). For example, QtmAM0408U-1 is a Quantum board with four (4)
trunk ports and eight (8) extension ports.
AltiWare OE 4.0 Getting Started Manual 27
