Altigen AltiWare OE Release 4.0 Getting Started Manual page 75

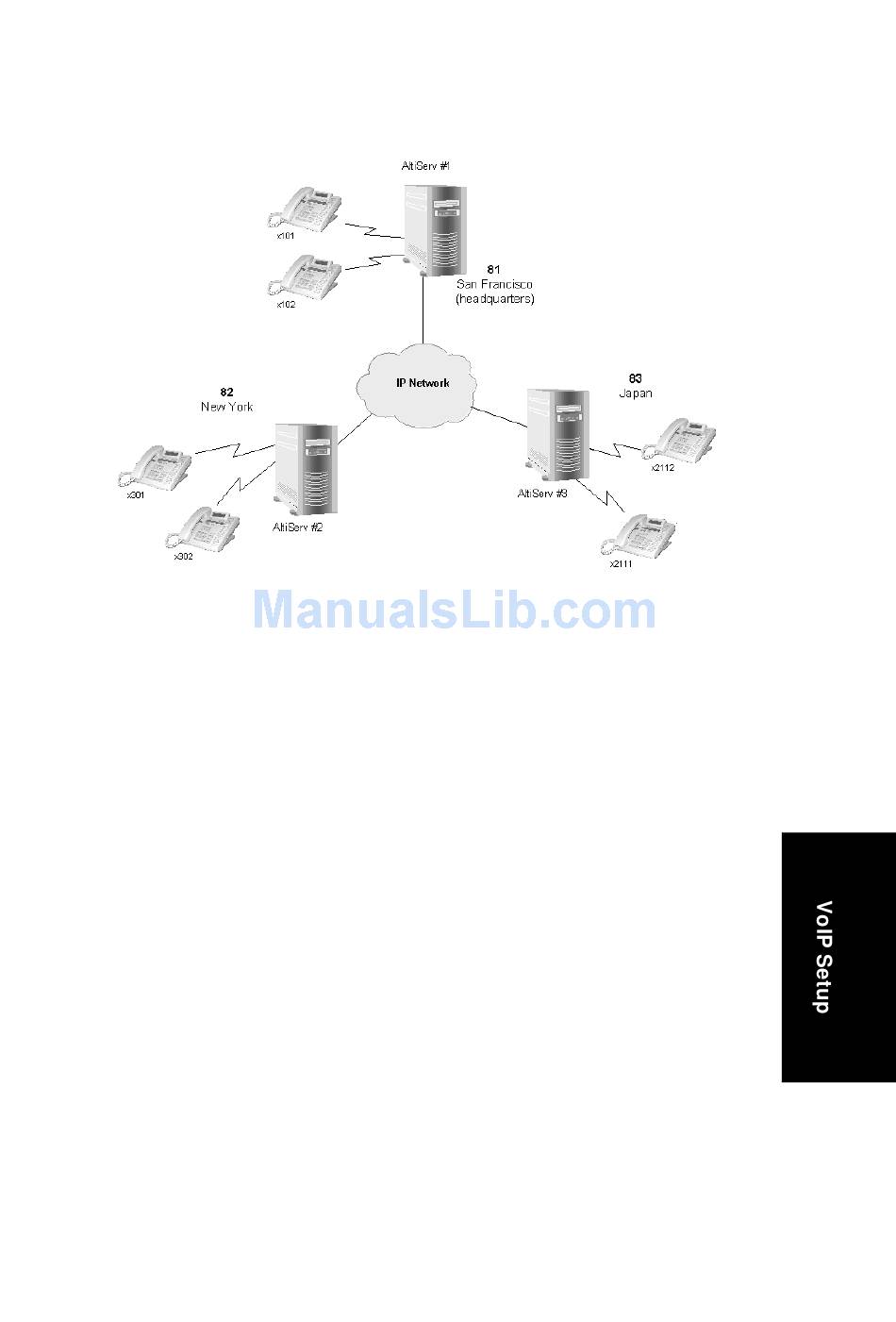

Figure 10. AltiServ to AltiServ Connection
Follow the steps below to configure IP trunks for AltiServ-to-AltiServ tie-
trunk line connection:
1. Confirm that the correct number of Triton VoIP boards are installed
and connected by checking the Boards window on the Main Window
of AltiWare Administrator. Refer to the section "Boards View
Window" on page 27 for more details about this window.
2. Assign the IP trunk access code on the Number Plan tab window of
System Configuration. See "Assigning the IP Trunk Access Code" in
Chapter 2 of the System Administration Manual.
3. Configure general trunk parameters on the General tab window of
Trunk Configuration. Refer to "Triton IP Trunk Configuration" in
Chapter 4 of the System Administration Manual.
4. Configure the dialing plan for connection to remote AltiServ systems
on the IP Dialing Table tab window of System Configuration. Set
the Number of Dialed Digits to 'None.' Refer to "IP Dialing Table"
in Chapter 2 of the System Administration Manual.
5. Repeat steps 1 through 5 for all local and remote AltiServ systems that
are to be networked via tie-trunk line connection.
Setting Up AltiServ-to-AltiServ IP Network
AltiWare OE 4.0 Getting Started Manual 51
