Intel Desktop Board D865PERC/D865PESO Technical Product Specification

2.8.1 Back Panel Connectors

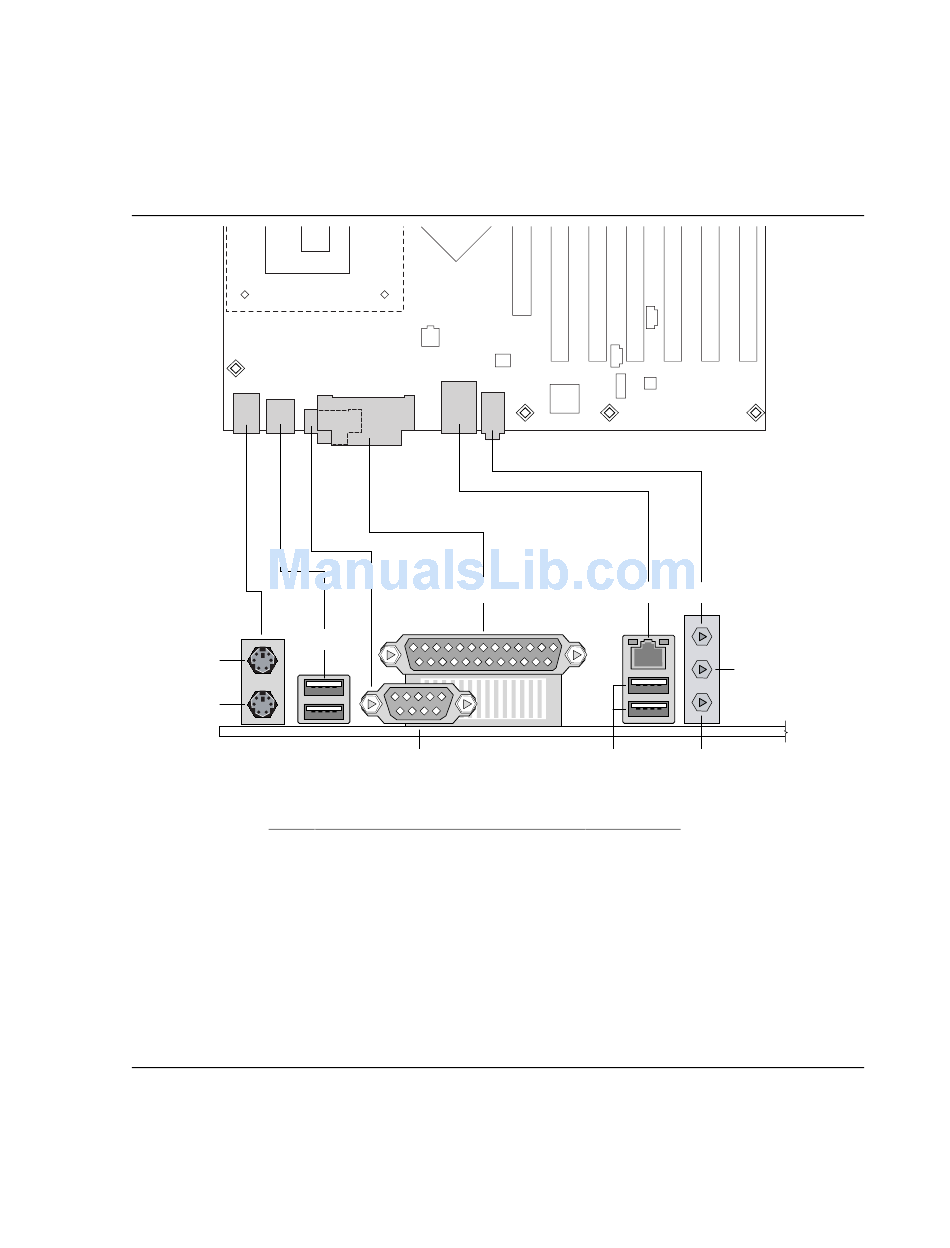

Figure 18 shows the location of the back panel connectors. The back panel connectors are
color-coded in compliance with PC 99 recommendations. The figure legend below lists the
colors used.
A
B
58
C
D
Item Description
A PS/2 mouse port
B PS/2 keyboard port
C USB ports
D Serial port A
E Parallel port
F LAN
G USB ports
H Audio line in
I Mic in
J Audio front left and right out
Figure 18. Back Panel Connectors
E F
G
Color
Green
Purple
Black
Teal
Burgundy
Black
Black
Light blue
Pink
Lime green
H
J
I
OM15942
