1.8 Intel ® 865PE Chipset
The Intel 865PE chipset consists of the following devices:
•
Intel 82865PE Memory Controller Hub (MCH) with Accelerated Hub Architecture (AHA) bus
•
Intel 82801EB I/O Controller Hub (ICH5) with AHA bus
•
Firmware Hub (FWH)
The MCH is a centralized controller for the system bus, the memory bus, the AGP bus, and the
Accelerated Hub Architecture interface. The ICH5 is a centralized controller for the board's I/O
paths. The FWH provides the nonvolatile storage of the BIOS. The component combination
provides the chipset interfaces as shown in Figure 9.
System Bus
CSA
AGP
Interface
Interface
For information about
The Intel 865PE chipset
Resources used by the chipset
Parallel ATA
IDE Interface
865PE Chipset
82865PE
AHA
Memory Controller
Bus
Hub (MCH)
Dual-Channel
DDR SDRAM
Bus
Interface

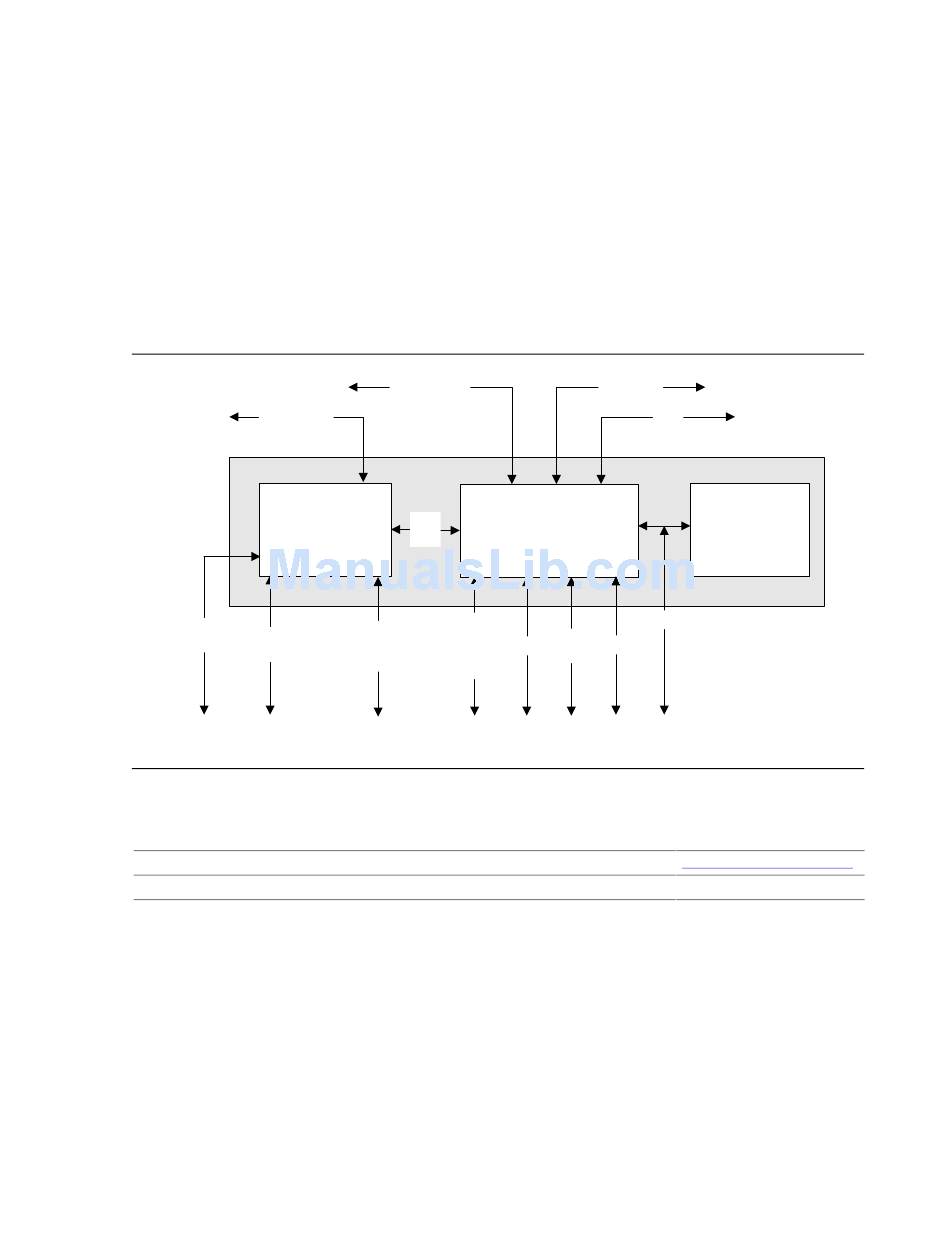

Figure 9. Intel 865PE Chipset Block Diagram
CSMA/CD
Interface
82801EB (ICH5)
I/O Controller Hub
Serial
ATA PCI
AC Link
SMBus
IDE Bus
Product Description
USB
82802AB
4 Mbit Firmware
Hub (FWH)
LPC Bus
OM16120
