Intel Desktop Board D865PERC/D865PESO Technical Product Specification
1.13.2.9 +5 V Standby Power Indicator LED
The +5 V standby power indicator LED shows that power is still present even when the computer
appears to be off. Figure 16 shows the location of the standby power indicator LED on the
D865PERC board.
CAUTION
If AC power has been switched off and the standby power indicator is still lit, disconnect the power
cord before installing or removing any devices connected to the board. Failure to do so could
damage the board and any attached devices.

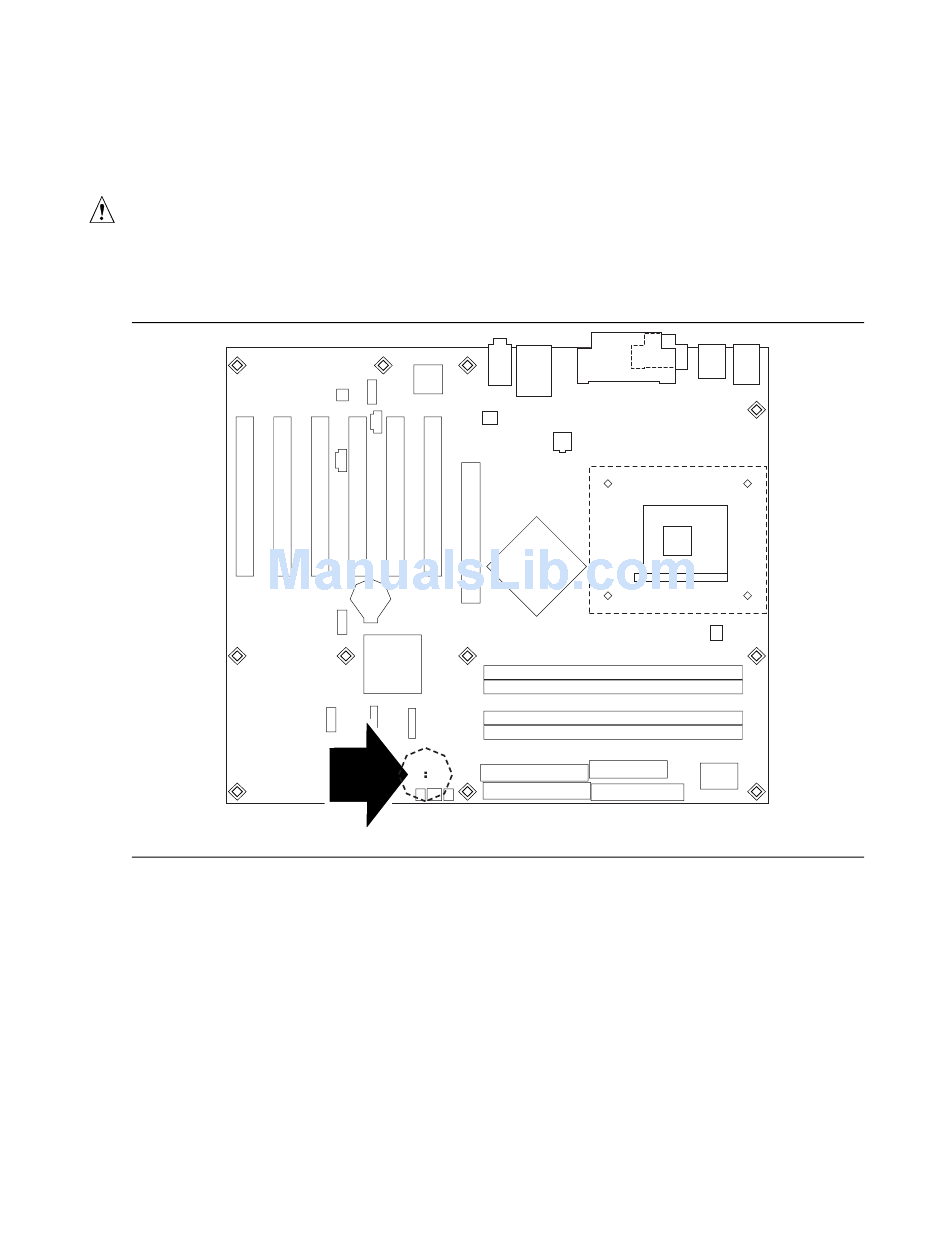

Figure 16. Location of the Standby Power Indicator LED on the D865PERC Board
48
CR7J1
OM15941
