Figure 12 is a block diagram of the Flex 6 audio subsystem.
82801EB
I/O Controller Hub
(ICH5)
For information about
The front panel audio connector
The back panel audio connectors

1.10.3 Audio Connectors

1.10.3.1 Front Panel Audio Connector
A 2 x 5-pin connector provides mic in and line out signals for front panel audio connectors.
For information about
The location of the connector
The signal names of the front panel audio connector
✏
NOTE
The front panel audio connector is alternately used as a jumper block for routing audio signals.
Refer to Section 2.9.1 on page 72 for more information.
1.10.3.2 Auxiliary Line In Connector
A 1 x 4-pin ATAPI-style connector connects the left and right channel signals of an internal audio
device to the audio subsystem.
For information about
The location of the auxiliary line in connector
The signal names of the auxiliary line in connector
1.10.3.3 ATAPI CD-ROM Audio Connector
A 1 x 4-pin ATAPI-style connector connects an internal ATAPI CD-ROM drive to the audio
mixer.
For information about
The location of the ATAPI CD-ROM connector
The signal names of the ATAPI CD-ROM connector
36
AC '97 Link
Audio Codec

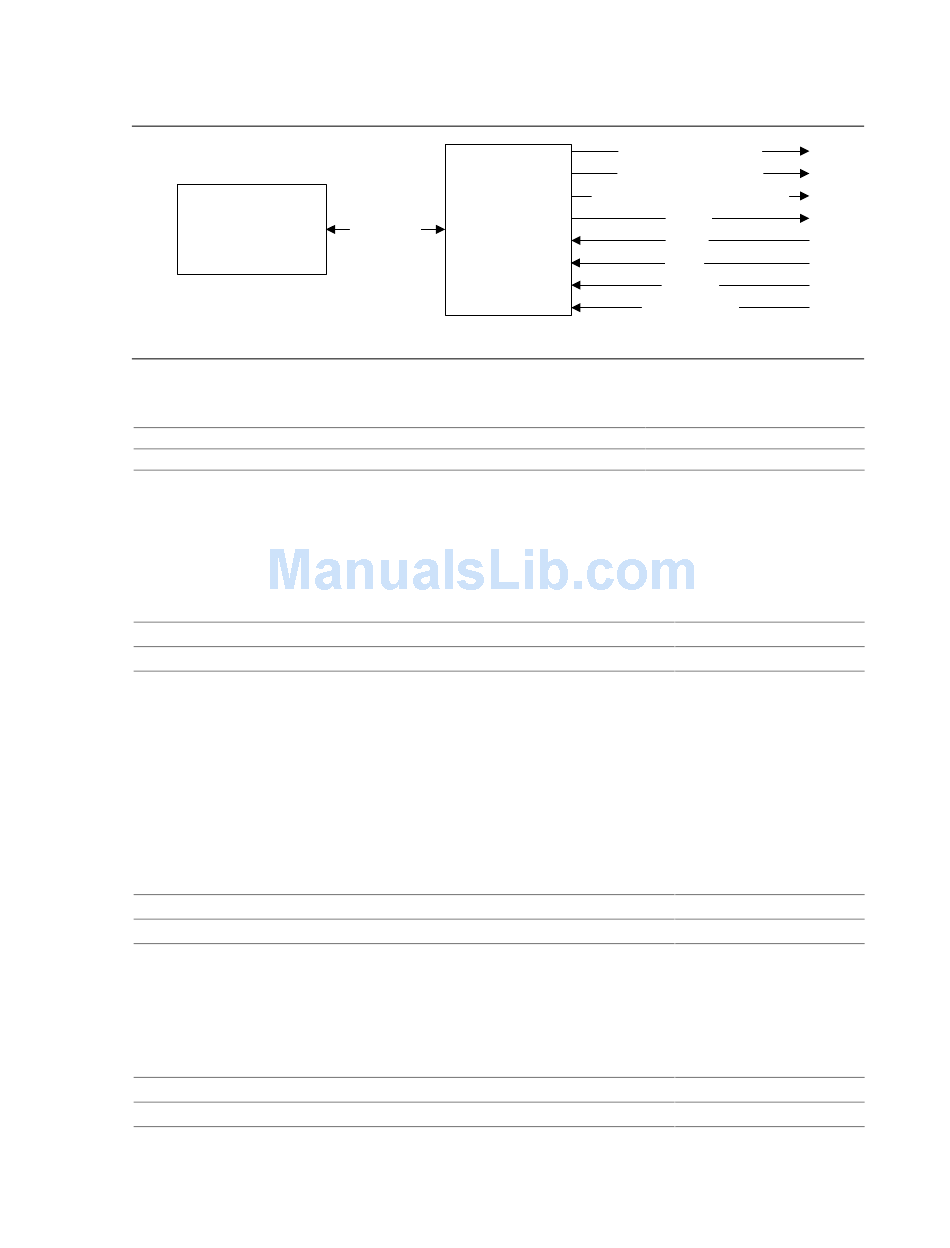

Figure 12. Flex 6 Audio Subsystem Block Diagram
Rear Left and Right Out
Front Left and Right Out
Center and LFE (Subwoofer) Out
AD1985
Auxiliary Line In
Refer to
Section 2.9.1, page 72
Section 2.8.1, page 58
S/PDIF
Line In
Mic In
CD-ROM
OM16102
Refer to
Figure 19, page 60
Table 22, page 61
Refer to
Figure 19, page 60
Table 20, page 61
Refer to
Figure 19, page 60
Table 21, page 61
