Back Panel Audio Connector Options For Flex 6 Audio Subsystem; Adapter For S/Pdif Back Panel Connector - Intel D865PERLX Specification

Two-Channel Analog
Jack Option
Line In
Line Out
Mic In

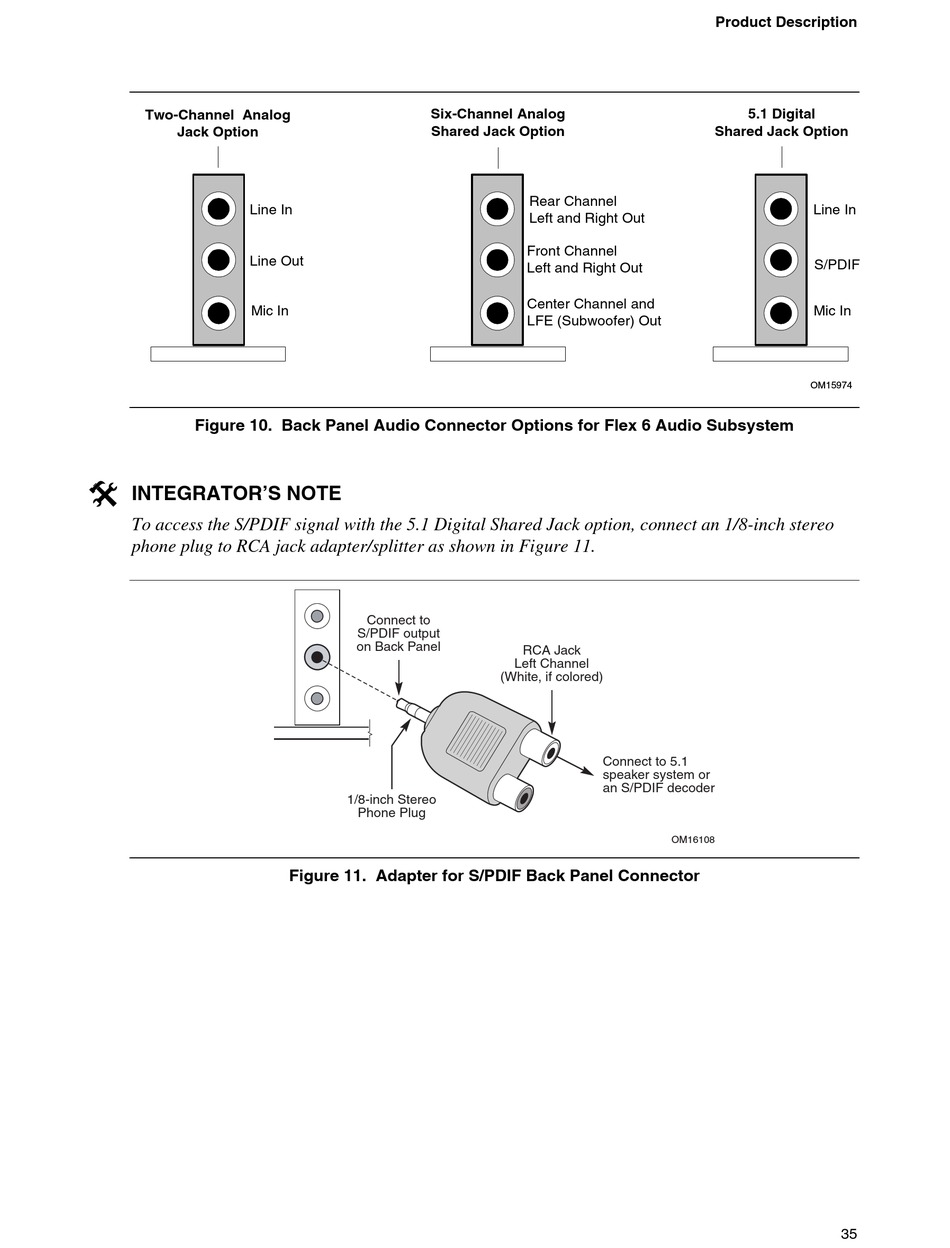

Figure 10. Back Panel Audio Connector Options for Flex 6 Audio Subsystem
#
INTEGRATOR'S NOTE
To access the S/PDIF signal with the 5.1 Digital Shared Jack option, connect an 1/8-inch stereo
phone plug to RCA jack adapter/splitter as shown in Figure 11.
Six-Channel Analog
Shared Jack Option
Connect to
S/PDIF output
on Back Panel
1/8-inch Stereo
Phone Plug
Figure 11. Adapter for S/PDIF Back Panel Connector
Rear Channel
Left and Right Out
Front Channel
Left and Right Out
Center Channel and
LFE (Subwoofer) Out
RCA Jack
Left Channel
(White, if colored)
Connect to 5.1
speaker system or
an S/PDIF decoder
OM16108
Product Description
5.1 Digital
Shared Jack Option
Line In
S/PDIF
Mic In
OM15974
35
