2.8.3.3 Front Panel USB Connectors

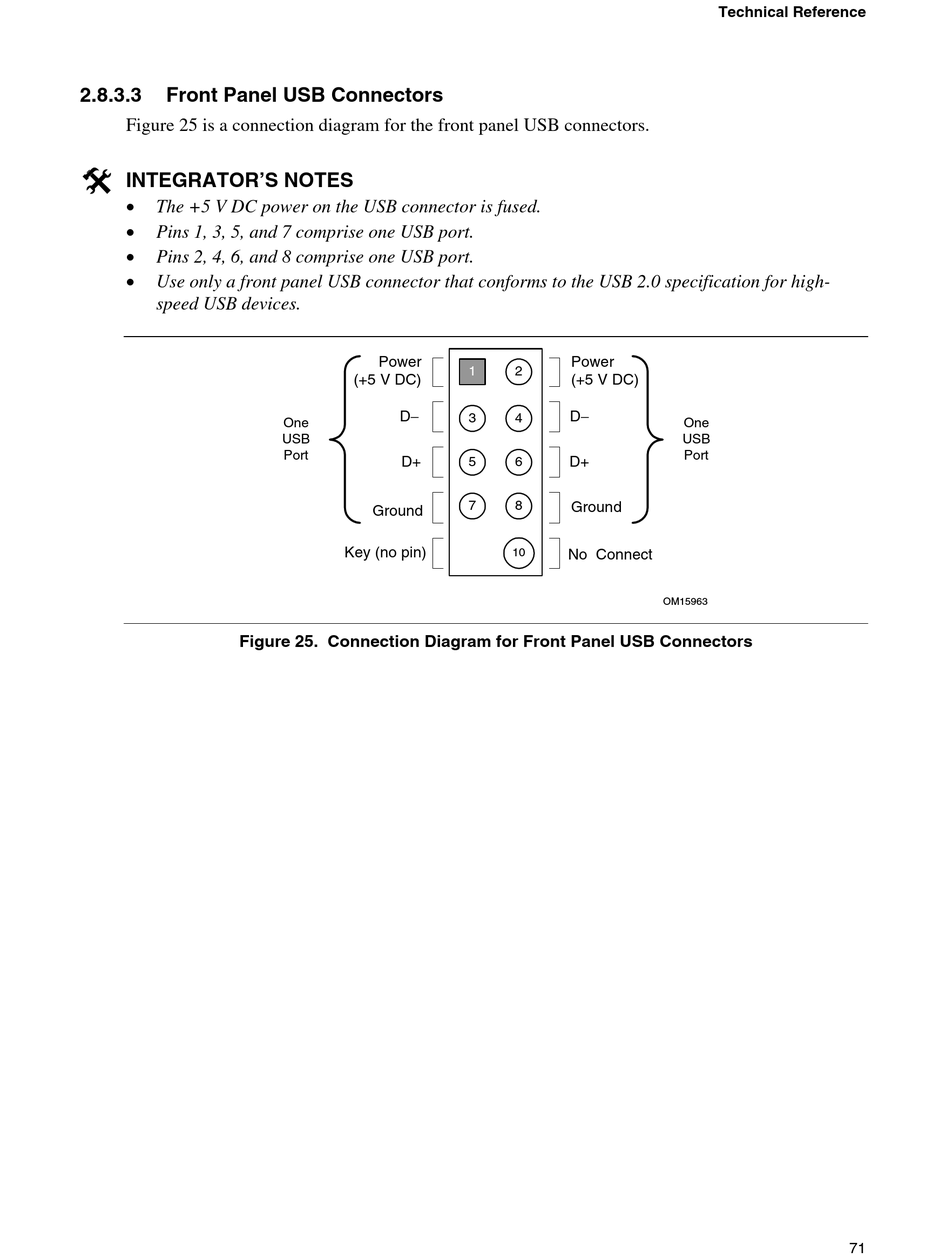

Figure 25 is a connection diagram for the front panel USB connectors.
#
INTEGRATOR'S NOTES
•
The +5 V DC power on the USB connector is fused.
•
Pins 1, 3, 5, and 7 comprise one USB port.
•
Pins 2, 4, 6, and 8 comprise one USB port.
•
Use only a front panel USB connector that conforms to the USB 2.0 specification for high-
speed USB devices.
Figure 25. Connection Diagram for Front Panel USB Connectors
Power
(+5 V DC)
D−
One
USB
Port
D+
Ground
Key (no pin)
Power
1 2
(+5 V DC)
D−
3 4
5 6 D+
7 8
Ground
10 No Connect
