Intel Desktop Board D865PERC/D865PESO Technical Product Specification
2.8.2.3

Power and Hardware Control Connectors

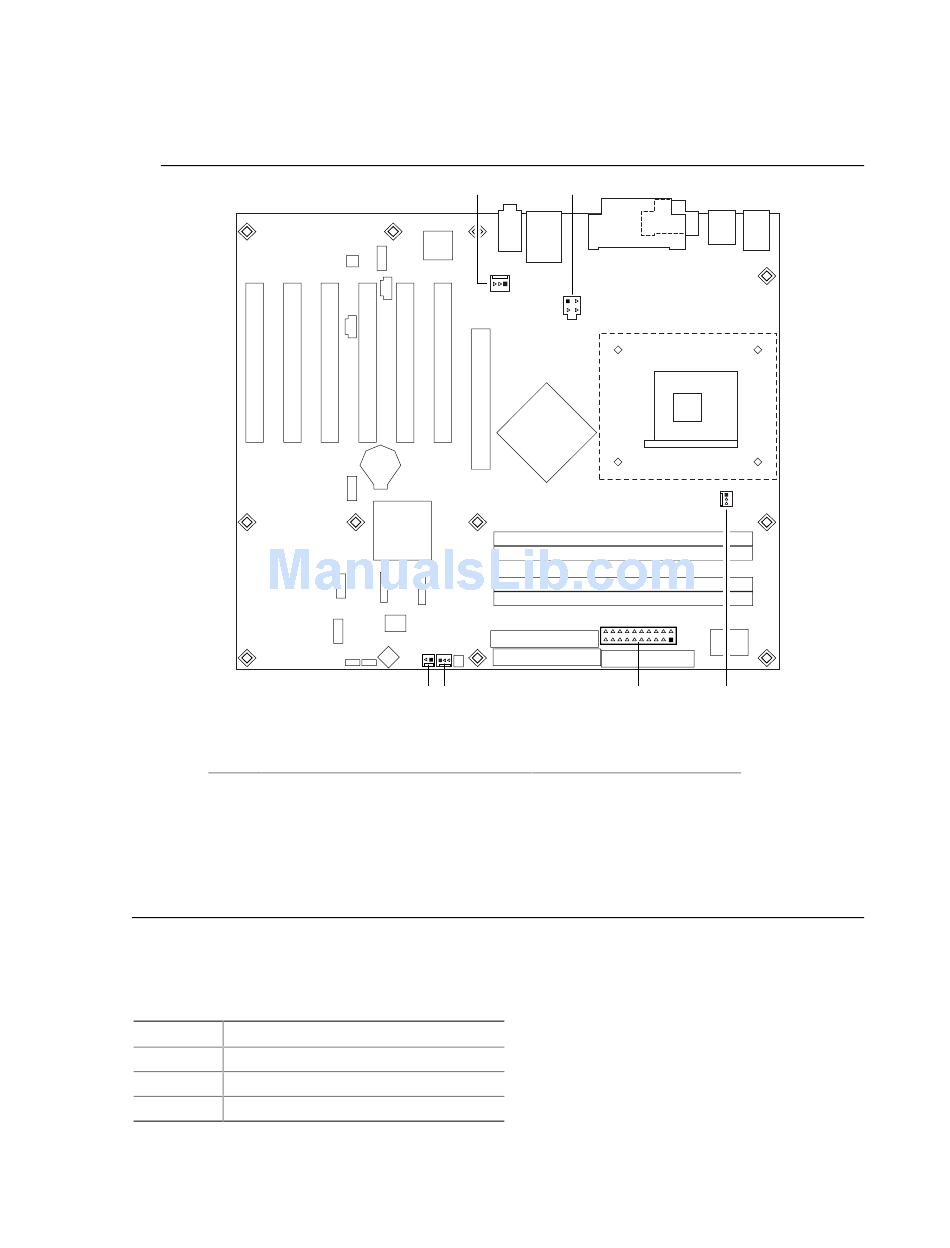

Figure 20 shows the location of the power and hardware control connectors.
Item
Description
A
Rear chassis fan
B
+12 V power connector (ATX12V)
C
Processor fan
D
Main power
E
Front chassis fan
F
Chassis intrusion
Table 23.

Rear Chassis Fan Connector

Pin
Signal Name
1
Control
2
+12 V
3
REAR_TACH_OUT
62
A
1
3
1
F
E
Figure 20. Power and Hardware Control Connectors
B
1
1
2
3
3
4
20
D
For more information see:
Table 23
Table 24
Table 25
Table 26
Table 27
Table 28
1
3
11
1
C
OM15944
