2.10.3 I/O Shield

The back panel I/O shield for the Desktop Boards D865PERC and D865PESO must meet specific
dimension and material requirements. Systems based on these Desktop Boards need the back

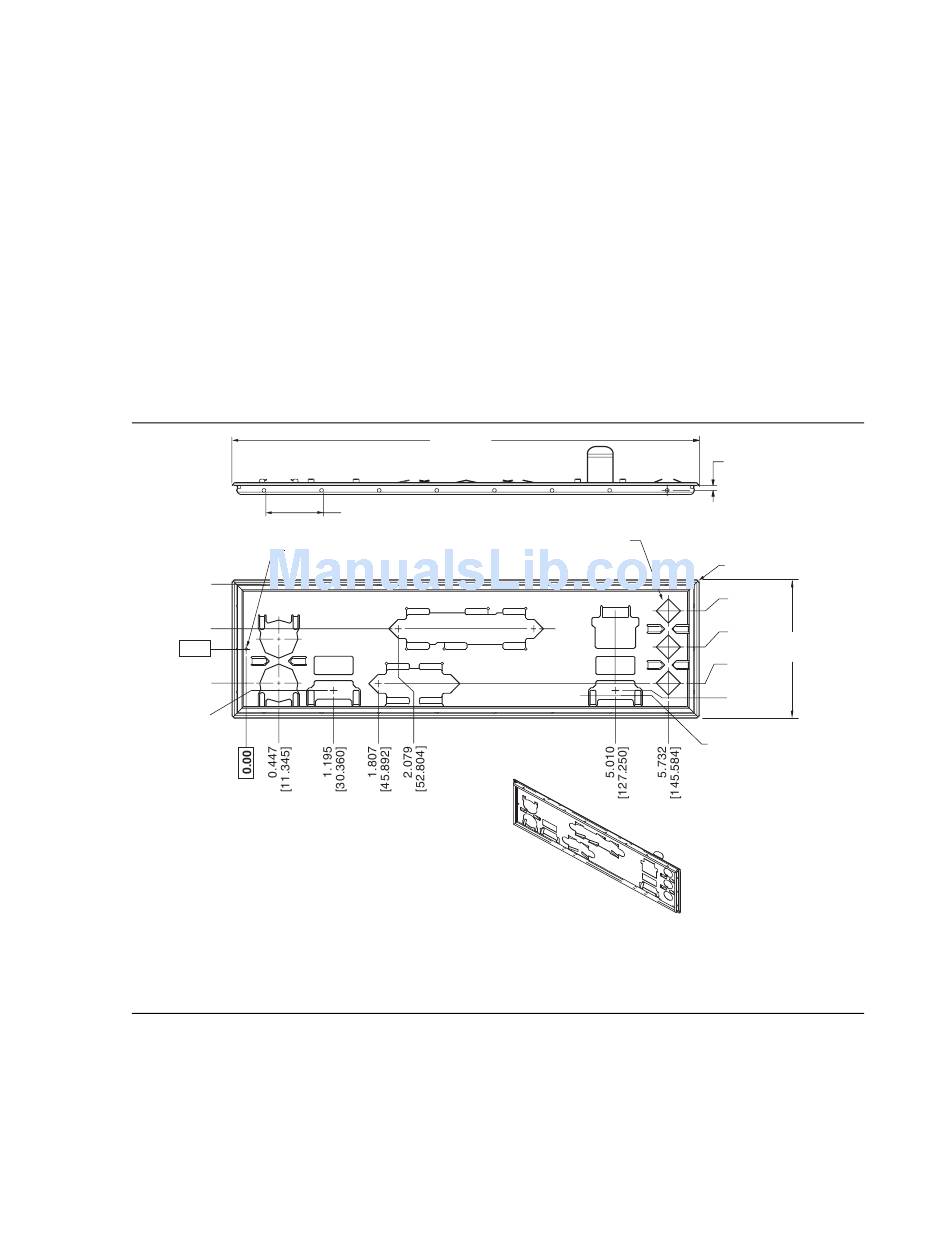

panel I/O shield to pass certification testing. Figure 29 shows the I/O shield. Dimensions are
given in inches to a tolerance of ±0.02 inches.
The figure also indicates the position of each cutout. Additional design considerations for I/O
shields relative to chassis requirements are described in the ATX specification. See Section 1.5 for
information about the ATX specification.
✏
NOTE
The I/O shield drawings in this document are for reference only. An I/O shield compliant with the
ATX chassis specification 2.03 is available from Intel.
0.884
[22.450]
0.276
[7.012]
0.00
0.465
[11.811]
0.567
[14.400]
76
6.390 Ref
[162.300]
0.787±0.010 TYP [20±0.254]
0.039 Dia. [1.000]
Figure 29. I/O Shield Dimensions
3x Dia 0.330 [8.380]
Pictorial
View
0.063±0.005
[1.600±0.120]
8X R0.5 MIN
0.519
[13.190]
0.027
[0.690]
1.89
Ref
0.465
[11.811]
0.567
[14.400]
0.621
[15.770]
OM12352
