Single Channel Configuration with Dynamic Mode
(Single DIMM or DIMMs matched within Channel)
Channel A - DIMM 0
Example
1
Channel A - DIMM 1
Channel A - DIMM 0
Example
2
Channel A - DIMM 1
Throughput
Level Configuration
Highest Dual Channel with Dynamic Mode
Dual Channel without Dynamic Mode
Single Channel with Dynamic Mode
Lowest Single Channel without Dynamic Mode

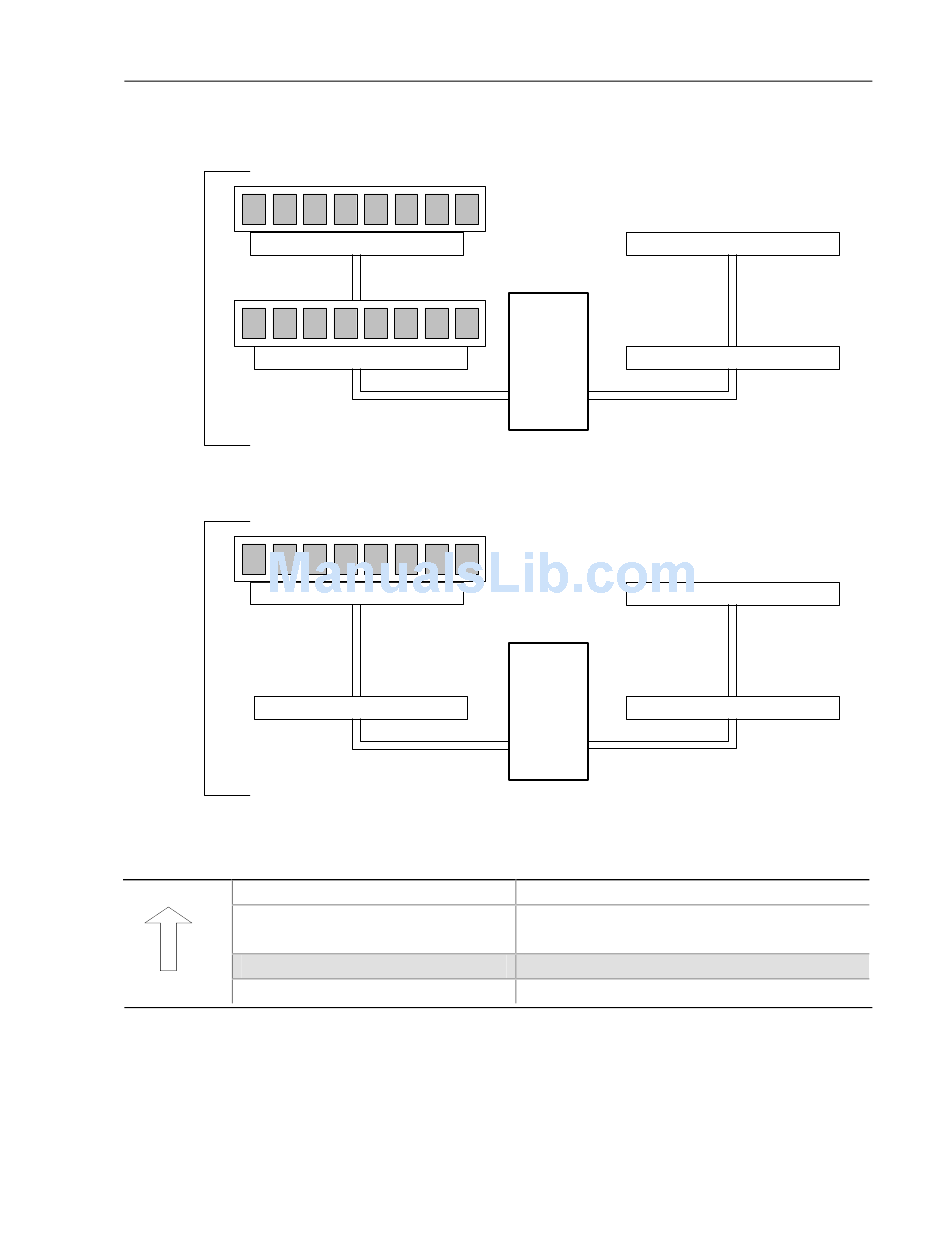

Figure 7. Examples of Single Channel Configuration with Dynamic Mode
Channel B - DIMM 0
Intel
Channel B - DIMM 1
82865PE
MCH
Channel B - DIMM 0
Intel
Channel B - DIMM 1
82865PE
MCH
Characteristics
All DIMMs matched
• DIMMs matched from Channel A to Channel B
• DIMMs not matched within channels
Single DIMM or DIMMs matched within a channel
DIMMs not matched
Product Description
OM15987
27
