1.12.2 Thermal Monitoring

Figure 15 shows the location of the sensors and fan connectors.
Item Description
A
Thermal diode, located on processor die
B
Remote ambient temperature sensor
C
Ambient temperature sensor, internal to hardware monitoring and fan control ASIC
D
Processor fan
E
Rear chassis fan
F
Front chassis fan
40
3 1
1 3
F E

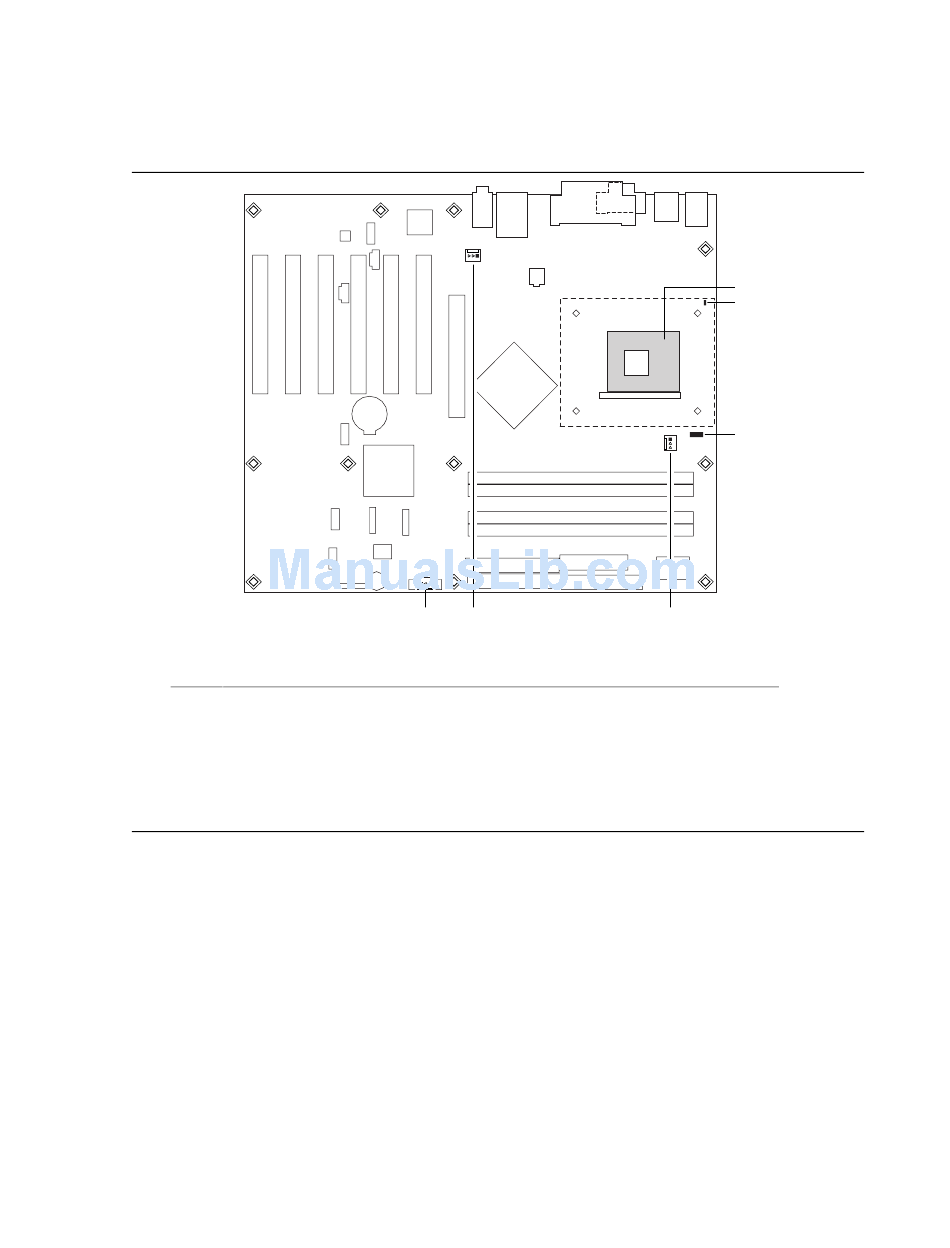

Figure 15. Thermal Monitoring
A
B
C
1
3
D
OM15940
