Intel Desktop Board D865PERC/D865PESO Technical Product Specification

1.2.3 Board Layouts

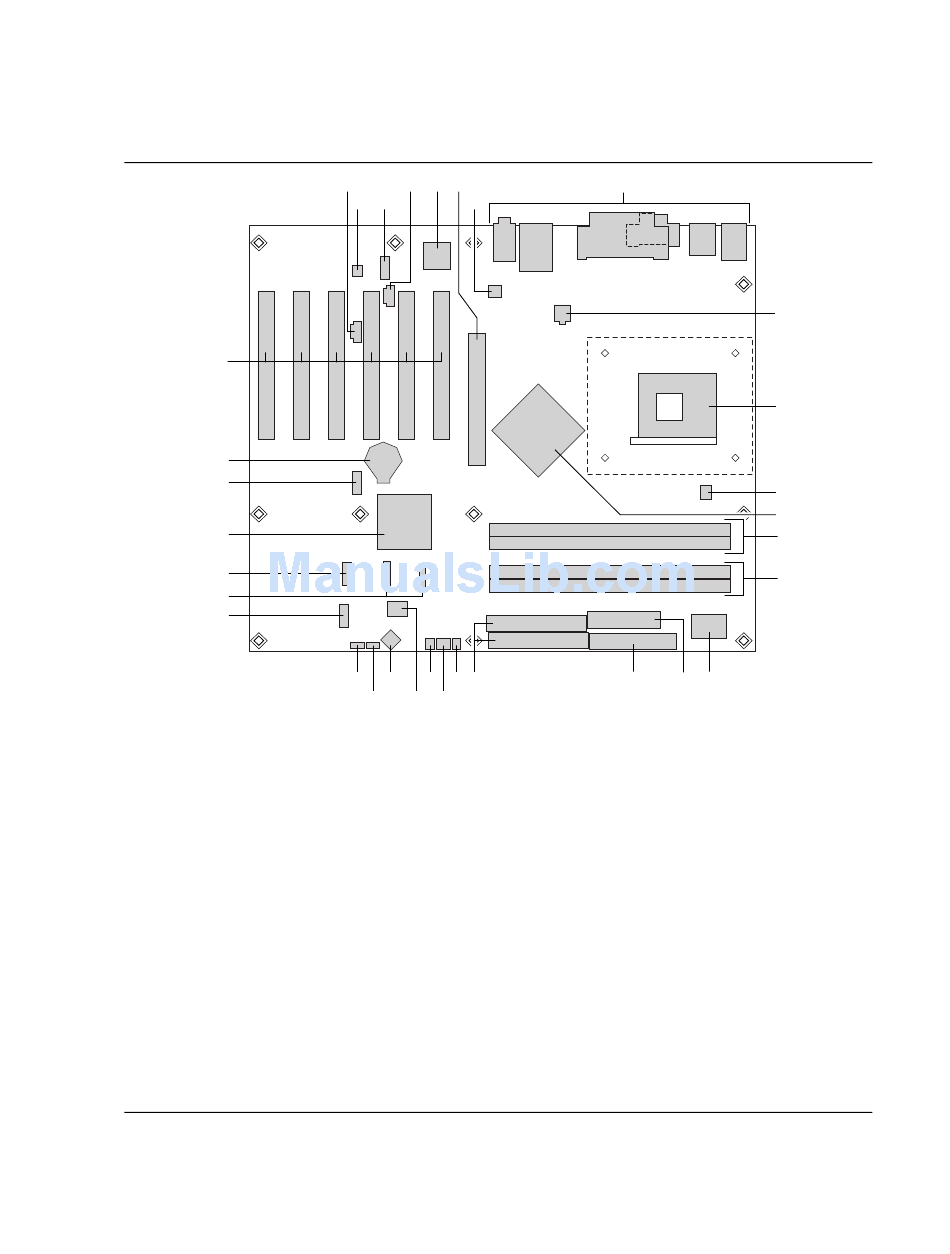

Figure 1 shows the location of the major components on the Desktop Board D865PERC.
FF
EE
DD
CC
BB
AA
Z
A Auxiliary line-in connector
B Audio codec
C Front panel audio connector
D ATAPI CD-ROM connector
E Ethernet PLC device (Optional)
F AGP connector
G Rear chassis fan connector
H Back panel connectors
I +12V power connector (ATX12V)
J mPGA478 processor socket
K Processor fan connector
L Intel 82865PE MCH
M DIMM Channel A sockets
N DIMM Channel B sockets
O I/O controller
P Power connector
14
A D E F
B C G
Y W U S R
X V T
Figure 1. Desktop Board D865PERC Components
H
Q P O
Q Diskette drive connector
R Parallel ATE IDE connectors
S SCSI Hard Drive Activity LED connector (optional)
T Front chassis fan connector
U Chassis intrusion connector
V 4 Mbit Firmware Hub (FWH)
W Speaker
X BIOS Setup configuration jumper block
Y Auxiliary front panel power LED connector
Z Front panel connector
AA Serial ATA connectors
BB Front panel USB connector
CC Intel 82801EB I/O Controller Hub (ICH5)
DD Front panel USB connector
EE Battery
FF PCI bus add-in card connectors
I
J
K
L
M
N
