Chapter 4
Prepare the LXr 8500 Memory Board(s)

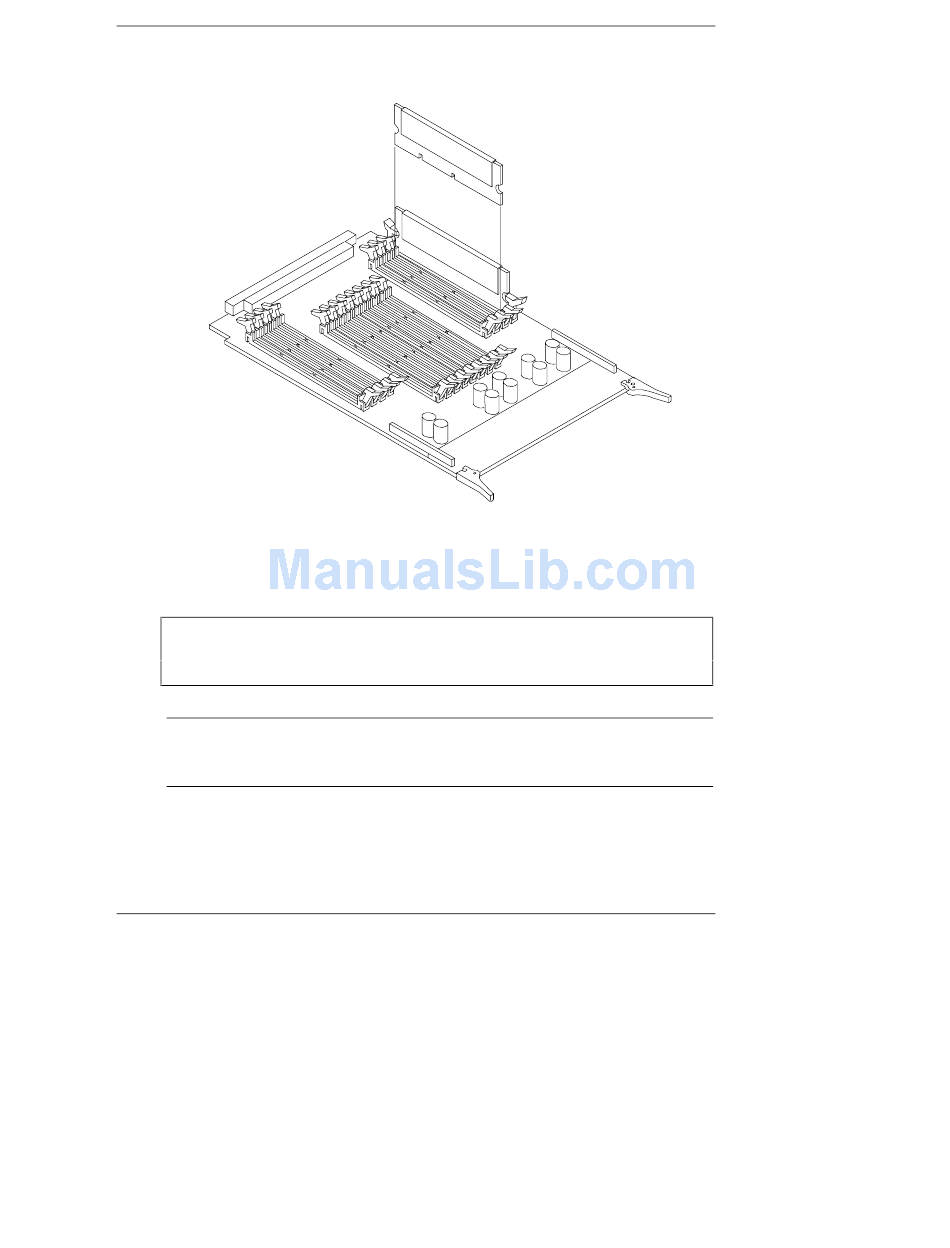

Figure 4-5. Install DIMMs in LXr 8500 Memory Board
1. Install the 256-MB SDRAM DIMM that came with this upgrade kit on the
LXr 8500 memory board. (See Figure 4-5.)
CAUTION
You cannot transfer the EDO DIMMs from the LXr 8000
memory board to the LXr 8500 memory board. DIMMs from
the LXr 8000 are not compatible with the LXr 8500.
NOTE
This upgrade kit comes with only one memory board and one
256-MB SDRAM DIMM. Accessory kits are available if you
need a second memory board and additional SDRAM DIMMs.
2. If you have purchased additional SDRAM DIMMs, install them now
following the guidelines provided in the DIMM accessory kit.
Preparing to Assemble the LXr 8500
39
