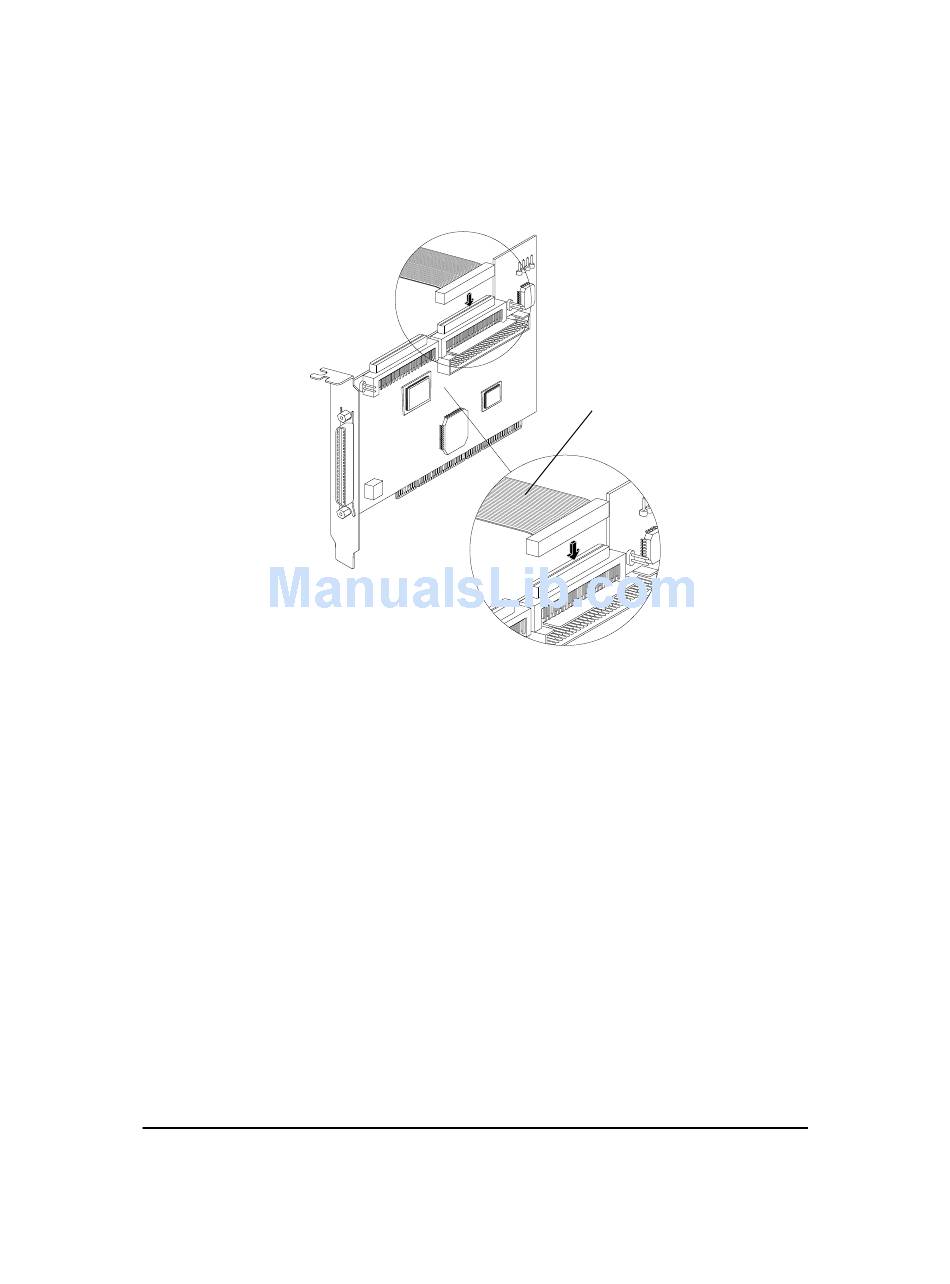

Figure 1-8. Connecting Ultra/Fast Wide SCSI Devices
2. Plug the other end of the cable to a terminated Ultra/Fast Wide SCSI device.
3. If you have other Ultra/Fast Wide SCSI devices, attach them to the
connectors between the two ends of the cable. Be sure these other devices
are unterminated.
4. Connect a power cable from your HP Netserver's internal power supply to
each internal device.
Connecting Internal Ultra/Fast Narrow Devices
Connect internal Ultra/Fast Narrow SCSI devices that have standard 50-pin
connectors to the 50-pin internal SE Narrow SCSI connector. To do this, use a
50-pin internal SCSI cable. Follow these steps to connect the devices:
1. Plug one end of the cable to the 50-pin internal SE Narrow SCSI connector
on the HP Ultra3 SCSI host bus adapter.
10
68-pin flat SCSI cable
