Mechanical Specifications; Boxed Processor Cooling Solution Dimensions; Space Requirements For The Boxed Processor (Side View) - Intel I7-900 DESKTOP PROCESSOR - DATASHEET VOLUME 1 Datasheet

8.2

Mechanical Specifications

8.2.1

Boxed Processor Cooling Solution Dimensions

This section documents the mechanical specifications of the boxed processor. The
boxed processor will be shipped with an unattached fan heatsink.
mechanical representation of the boxed processor.
Clearance is required around the fan heatsink to ensure unimpeded airflow for proper
cooling. The physical space requirements and dimensions for the boxed processor with
assembled fan heatsink are shown in
View). The airspace requirements for the boxed processor fan heatsink must also be
incorporated into new baseboard and system designs. Airspace requirements are
shown in
(marked with alphabetic designations) to clarify relative dimensioning.
Figure 8-2.

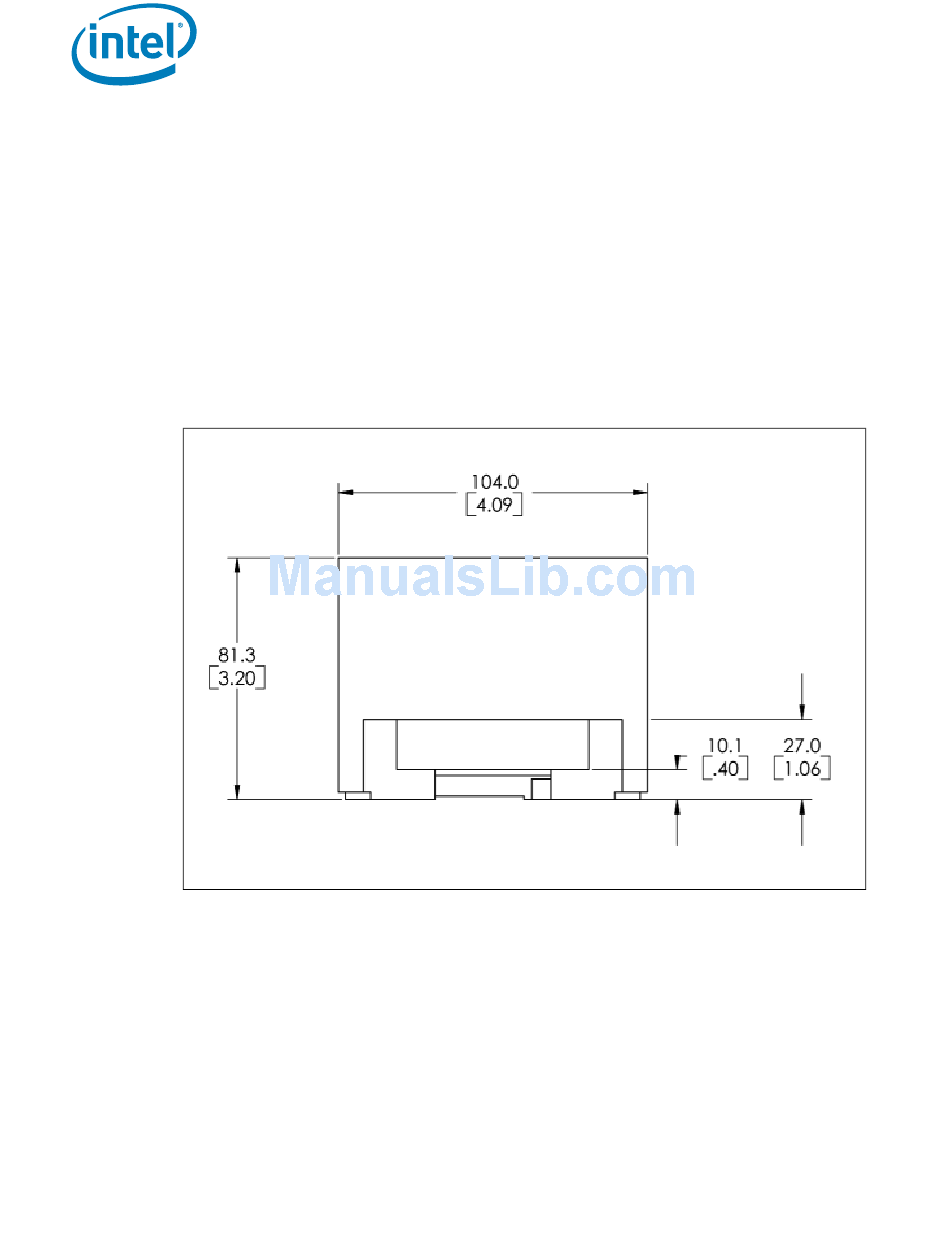

Space Requirements for the Boxed Processor (side view)

90
Figure 8-7 and Figure 8-8. Note that some figures have centerlines shown
Boxed Processor Specifications
Figure 8-2 (Side View), and
Figure 8-1 shows a
Figure 8-3 (Top
Datasheet
