Boxed Processor Specifications

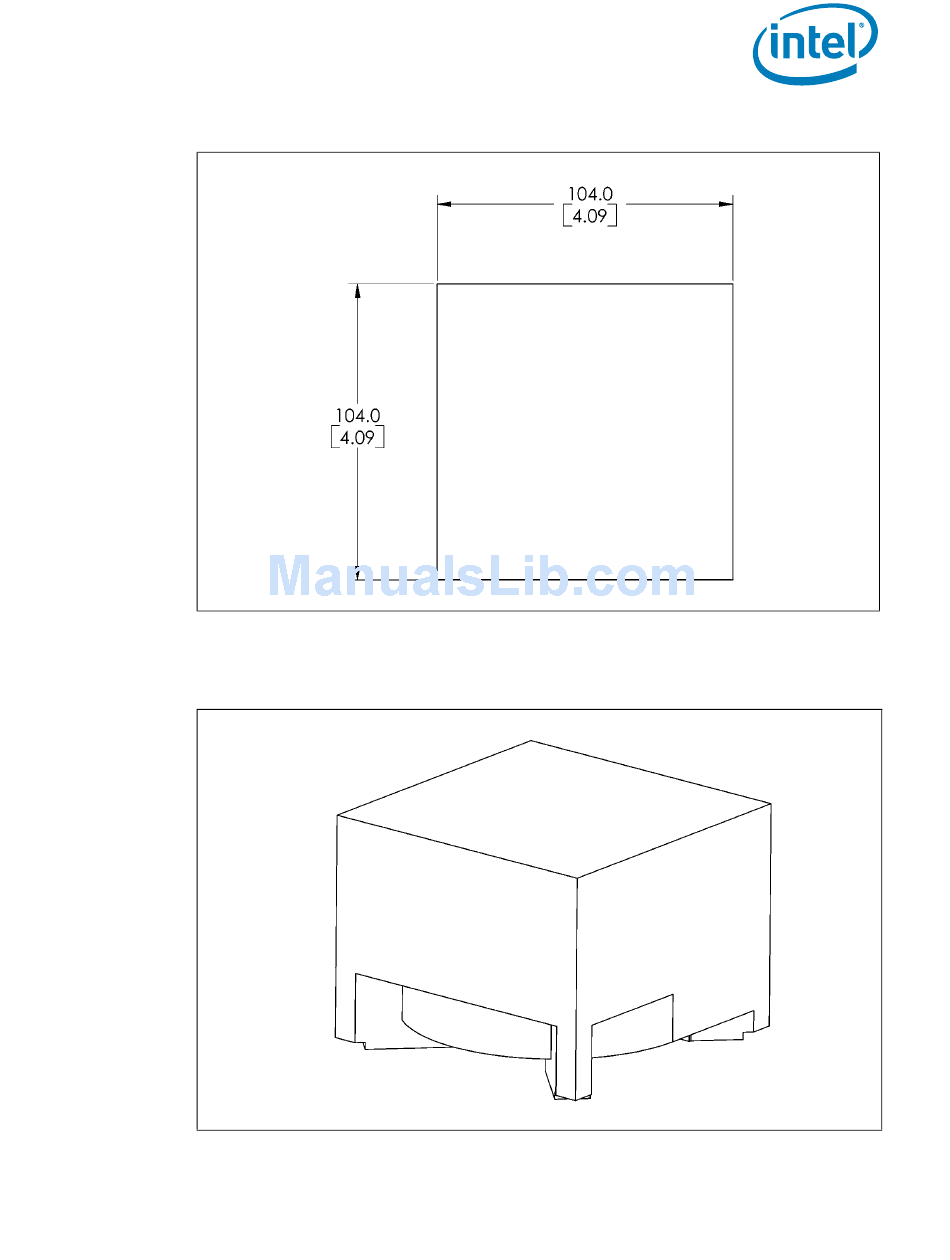

Figure 8-3.
Space Requirements for the Boxed Processor (top view)
NOTES:
1.
Diagram does not show the attached hardware for the clip design and is provided only as a
mechanical representation.
Figure 8-4.
Space Requirements for the Boxed Processor (overall view)
Datasheet
91
