Signal Description
6.14
Processor Internal Pull Up/Pull Down

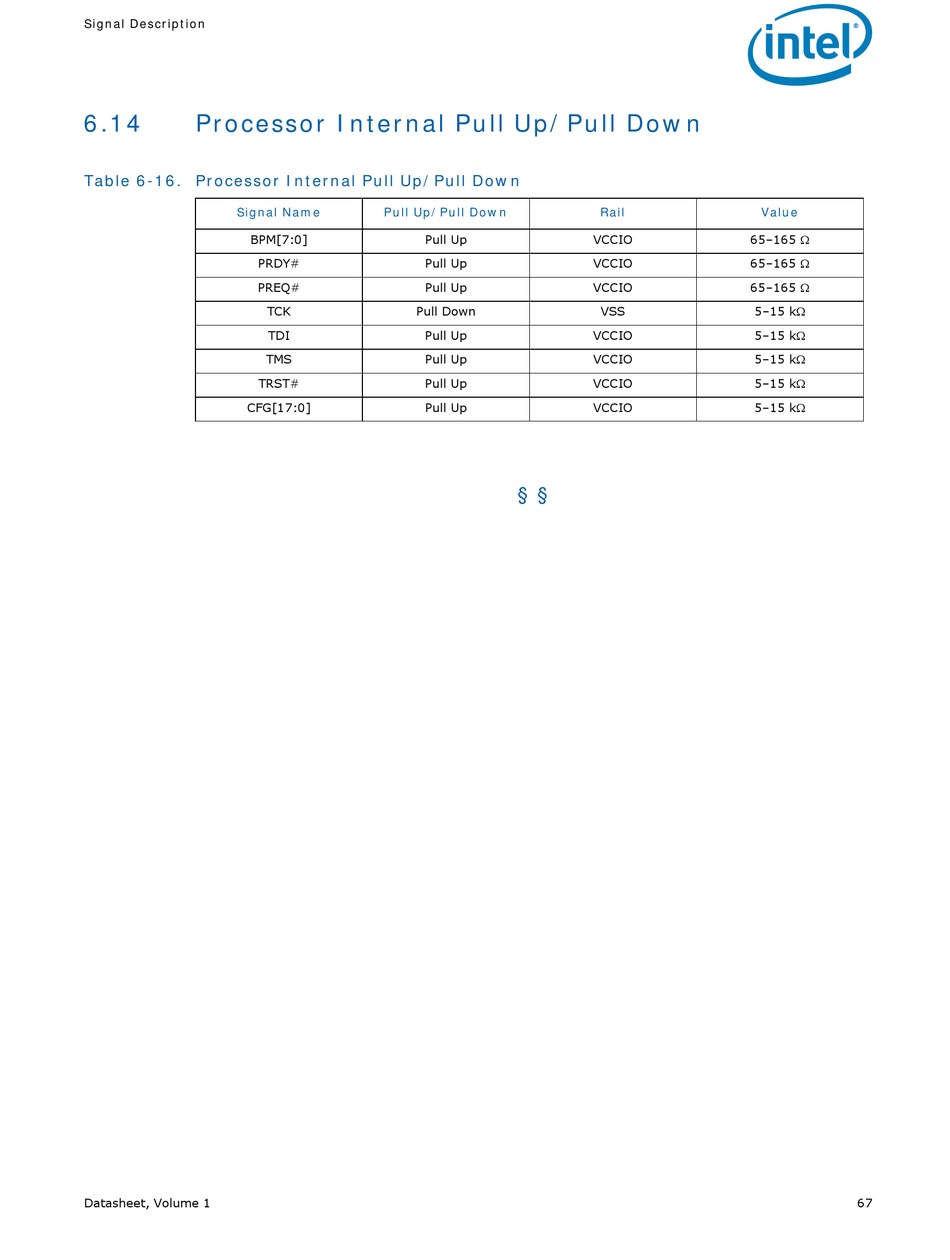

Table 6-16. Processor Internal Pull Up/Pull Down
Signal Name
BPM[7:0]
PRDY#
PREQ#
TRST#
CFG[17:0]
Datasheet, Volume 1
Pull Up/Pull Down
Pull Up
Pull Up
Pull Up
TCK
Pull Down
TDI
Pull Up
TMS
Pull Up
Pull Up
Pull Up
Rail
VCCIO
VCCIO
VCCIO
VSS
VCCIO
VCCIO
VCCIO
VCCIO
§ §
Value
65–165
65–165
65–165
5–15 k
5–15 k
5–15 k
5–15 k
5–15 k
67
