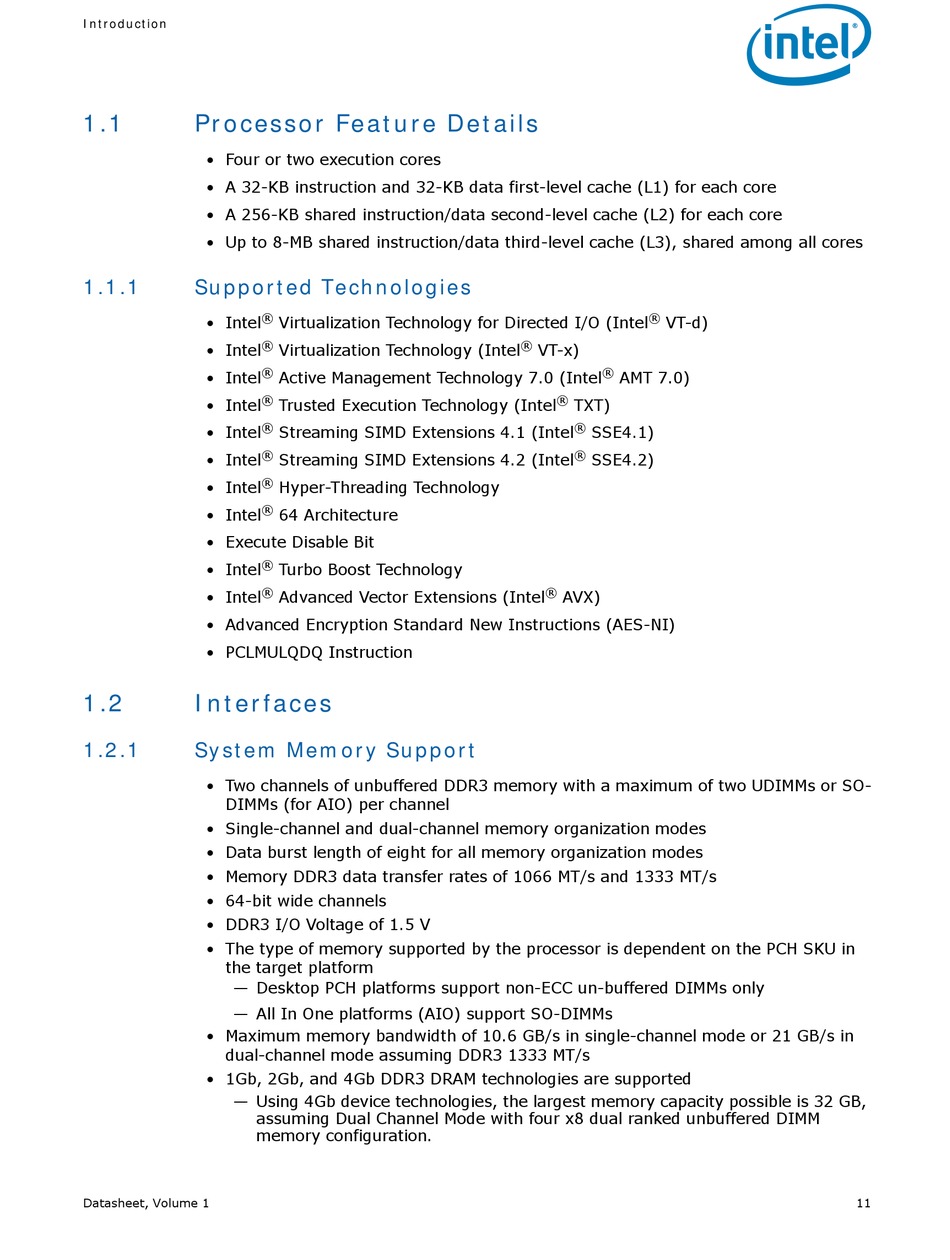

Processor Feature Details; Supported Technologies; Interfaces; System Memory Support - Intel 2ND GENERATION CORE PROCESSOR FAMILY DESKTOP - DATASHEET VOLUME 1 01-2011 Datasheet

Introduction
1.1

Processor Feature Details

• Four or two execution cores
• A 32-KB instruction and 32-KB data first-level cache (L1) for each core
• A 256-KB shared instruction/data second-level cache (L2) for each core
• Up to 8-MB shared instruction/data third-level cache (L3), shared among all cores
1.1.1

Supported Technologies

• Intel
• Intel
• Intel
• Intel
• Intel
• Intel
• Intel
• Intel
• Execute Disable Bit
• Intel
• Intel
• Advanced Encryption Standard New Instructions (AES-NI)
• PCLMULQDQ Instruction
1.2

Interfaces

1.2.1

System Memory Support

• Two channels of unbuffered DDR3 memory with a maximum of two UDIMMs or SO-
DIMMs (for AIO) per channel
• Single-channel and dual-channel memory organization modes
• Data burst length of eight for all memory organization modes
• Memory DDR3 data transfer rates of 1066 MT/s and 1333 MT/s
• 64-bit wide channels
• DDR3 I/O Voltage of 1.5 V
• The type of memory supported by the processor is dependent on the PCH SKU in
the target platform
— Desktop PCH platforms support non-ECC un-buffered DIMMs only
— All In One platforms (AIO) support SO-DIMMs
• Maximum memory bandwidth of 10.6 GB/s in single-channel mode or 21 GB/s in
dual-channel mode assuming DDR3 1333 MT/s
• 1Gb, 2Gb, and 4Gb DDR3 DRAM technologies are supported
— Using 4Gb device technologies, the largest memory capacity possible is 32 GB,
assuming Dual Channel Mode with four x8 dual ranked unbuffered DIMM
memory configuration.
Datasheet, Volume 1
®
Virtualization Technology for Directed I/O (Intel
®
Virtualization Technology (Intel
®
Active Management Technology 7.0 (Intel
®
Trusted Execution Technology (Intel
®
Streaming SIMD Extensions 4.1 (Intel
®
Streaming SIMD Extensions 4.2 (Intel
®
Hyper-Threading Technology
®
64 Architecture
®
Turbo Boost Technology
®
Advanced Vector Extensions (Intel
®
VT-d)
®
VT-x)
®
AMT 7.0)
®
TXT)
®
SSE4.1)
®
SSE4.2)
®
AVX)
