Repair Array Drives

This function allows the online repair of array drives which show failed drives. After selecting this
menu option, StorCon displays a summary of all installed array drives and the number of array
drives which are in critical states (Figure 31). In the example in Figure 32 there is one array drive
in the Fail state. For example, the array drive is still operating but no longer redundant.
After pressing any key, StorCon displays a list of array drives which are candidates for online
automatic repair.
✏
NOTE
Array drives that are in the Error state are very critical and have lost 2 or even more drives. These
array drives cannot not be repaired with the Repair Array Drives function. In such critical cases
data integrity can no longer be maintained.
After selecting the array drive, StorCon displays the drive that failed. In the example in Figure 32 it
is the hard disk which forms logical drive 5.
After confirmation, the failed drive must be removed from the system and the new one configured
on the same ID and installed in the system. See Figure 33 and Figure 34.
Storage Console

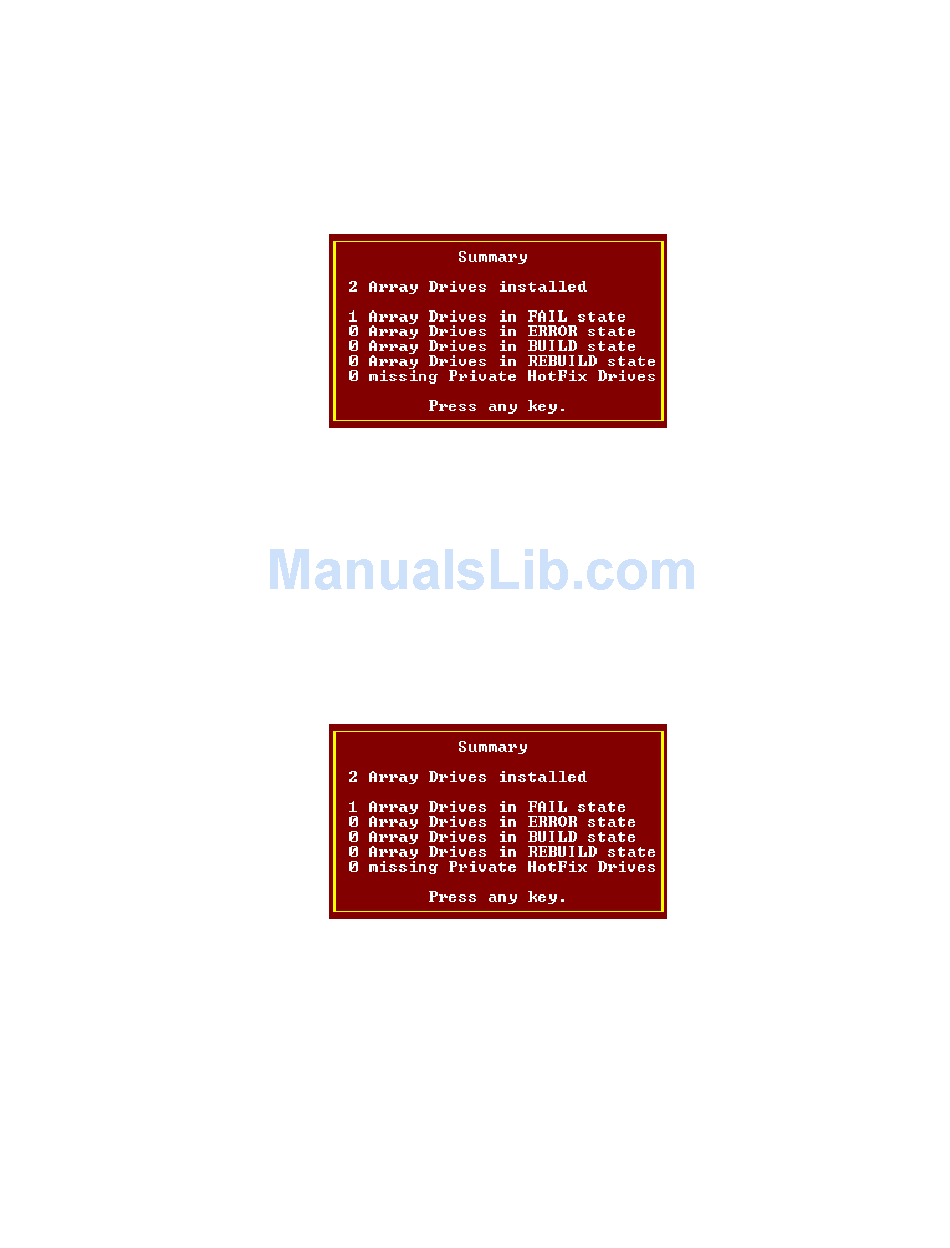

Figure 31. Array Drive Summary
Figure 32. Failed Hard Drive
97
