Configure Logical Drives
Logical drives (hierarchy level 2) are installed in the Advanced Setup menu.
The Configure Logical Drives screen is shown in Figure 50.
Keyboard Commands
Use the <F4> key to lists all hard disks of a logical drive. If it is a logical drive of the type Disk, it
only consists of one single hard disk. If a logical drive consists of more hard disks, it is of the type
Chain (concatenation of several hard disks). <F3> loads all hard disks and <F5> identifies drives
by turning the hard disks LED on and off.
To configure and setup a new logical drive, select Create new Logical Drive. StorCon displays a
list of free physical drives (which are not already part of a logical drive). See Figure 51.
110

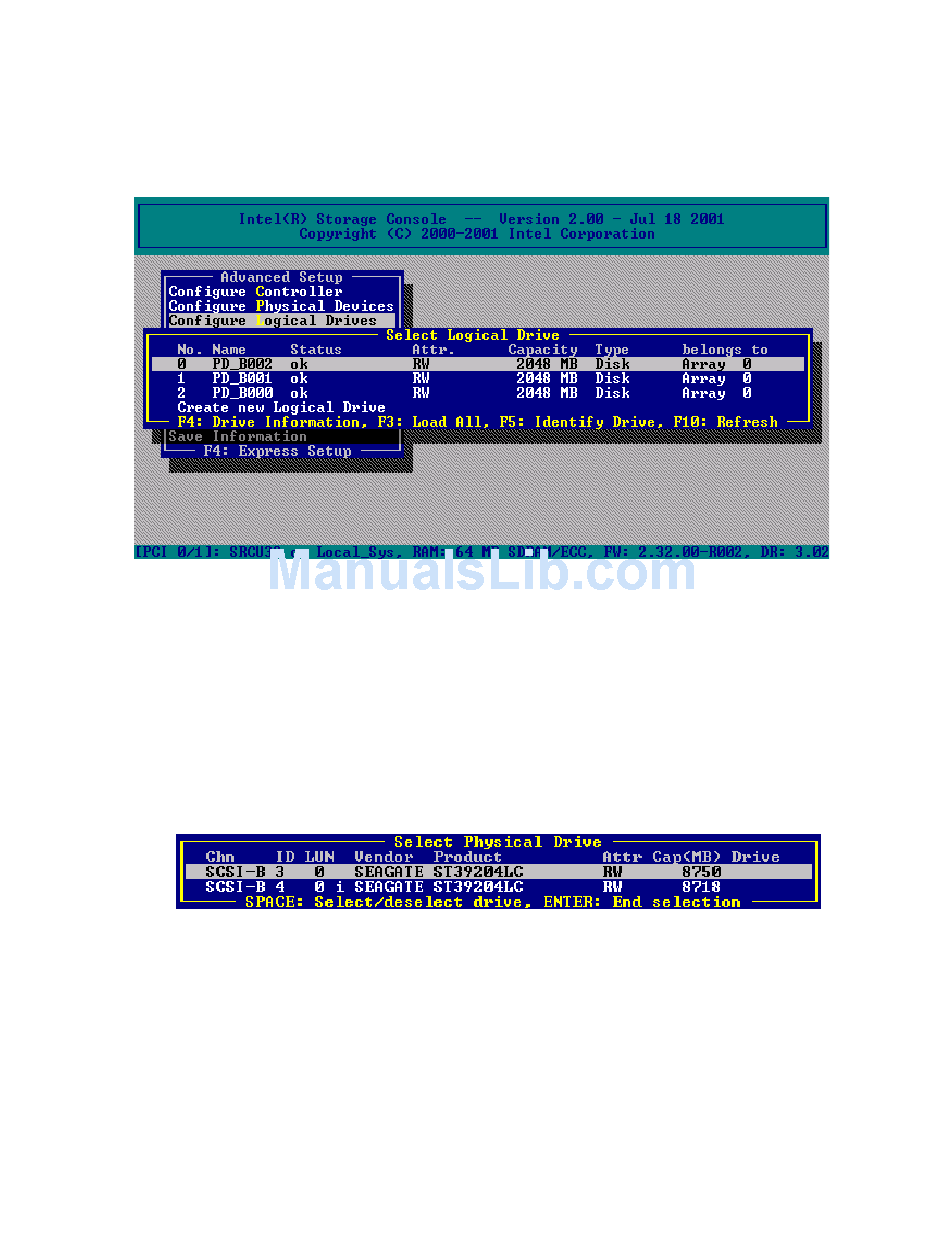

Figure 50. Select Logical Drive
Figure 51. Select Physical Drive
Intel RAID Controller SRCMR User's Guide
