The Configuration Menu Commands
The configuration menu appears when you select the Physical Configuration window or the Logical
Configuration window.
Set the refresh rate for the Physical or the Logical Configuration windows. This is the rate that is
used by StorCon+ to update the contents of the physical and logical configuration windows. See
Figure 77.
These menu options are also available if you click the right mouse button on the corresponding icon
in the Physical or the Logical Configuration windows. See Table 19.
Storage Console Plus

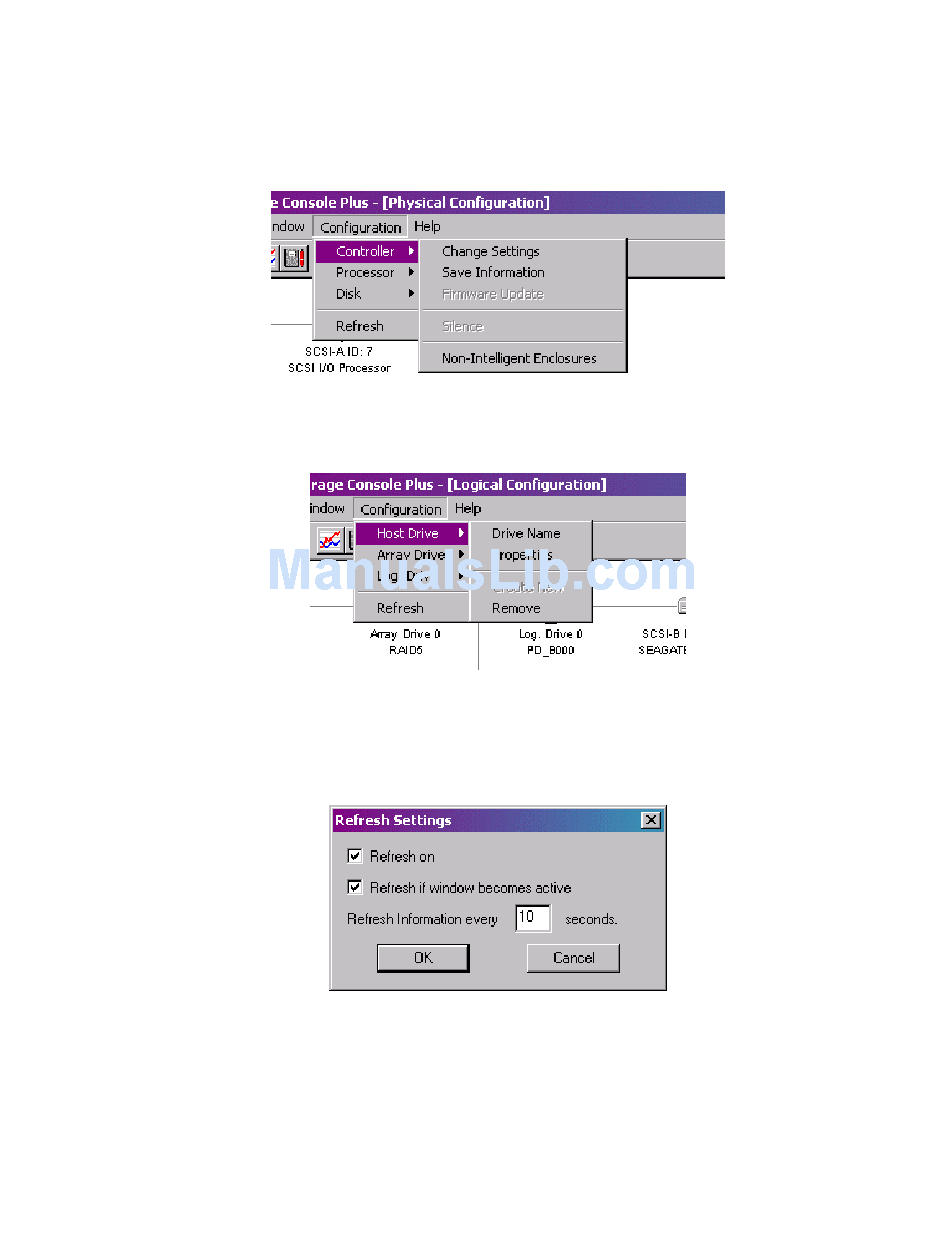

Figure 75. Physical Configuration Menu
Figure 76. Logical Configuration Menu
Figure 77. Refresh Rate Settings Dialog
127
