Use Storage Console to Create a RAID Volume

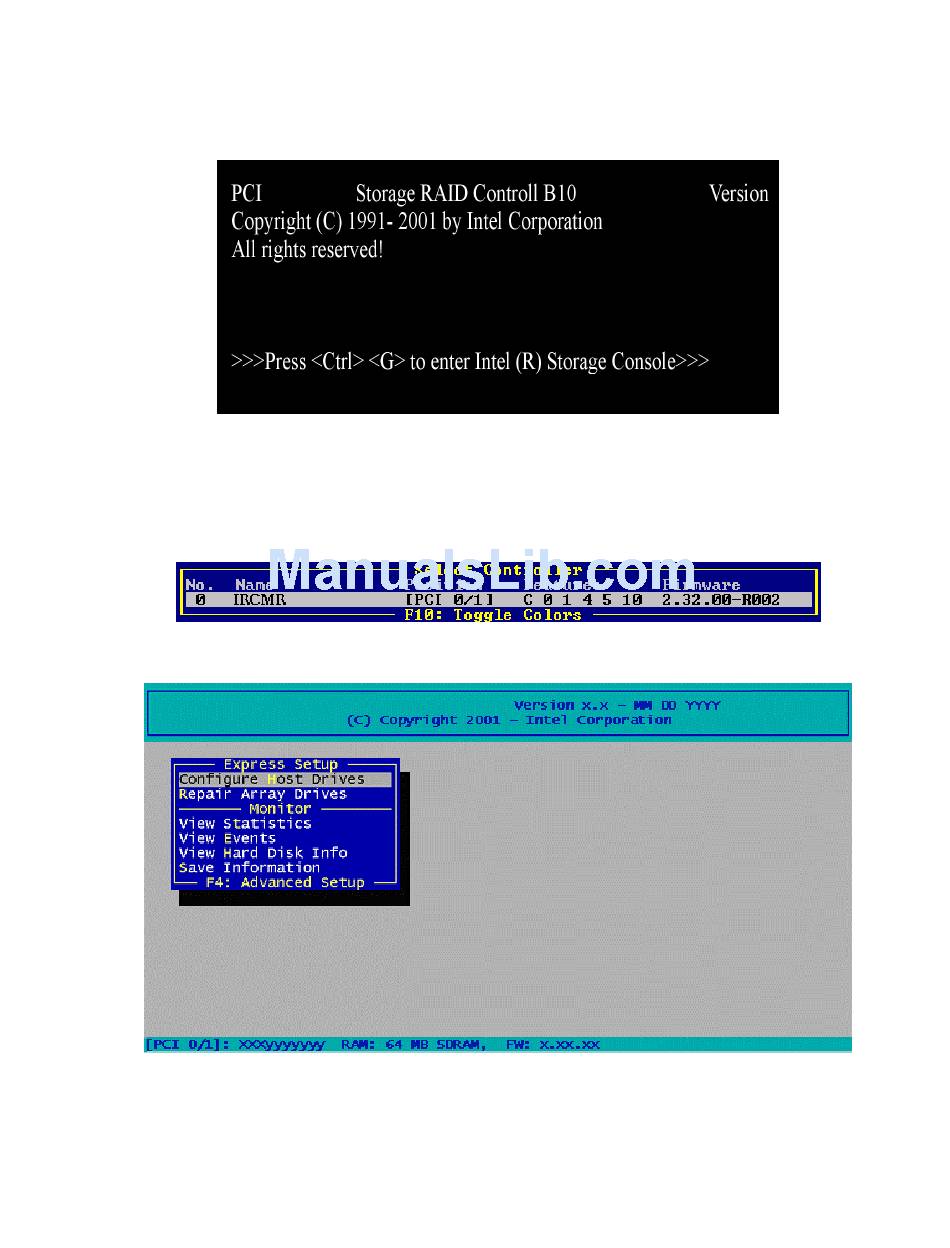

1. Power on the system and press <Ctrl+G> when the screen below appears.
The following two messages will appear at the bottom of the screen:
2.
"Intel (R) Storage Console to start after POST"
"Please wait to start Intel (R) Storage Console..."
3. When Storage Console starts, it will display the Intel RAID Controller SRCMR installed in the
system. Press <Enter> to select this controller.
4. Select "Configure Host Drives" and press <Enter>.
36 Intel RAID Controller SRCMR User's Guide
