Array Drives

Array drives consist of logical drives. They can be fault tolerant, depending on the RAID level.
The RAID level is displayed under the array drive icon.
Double click on an icon to get more information on the state of an array. See Figure 88. Right
click the desired drive to select an array drive option.
Table 26.

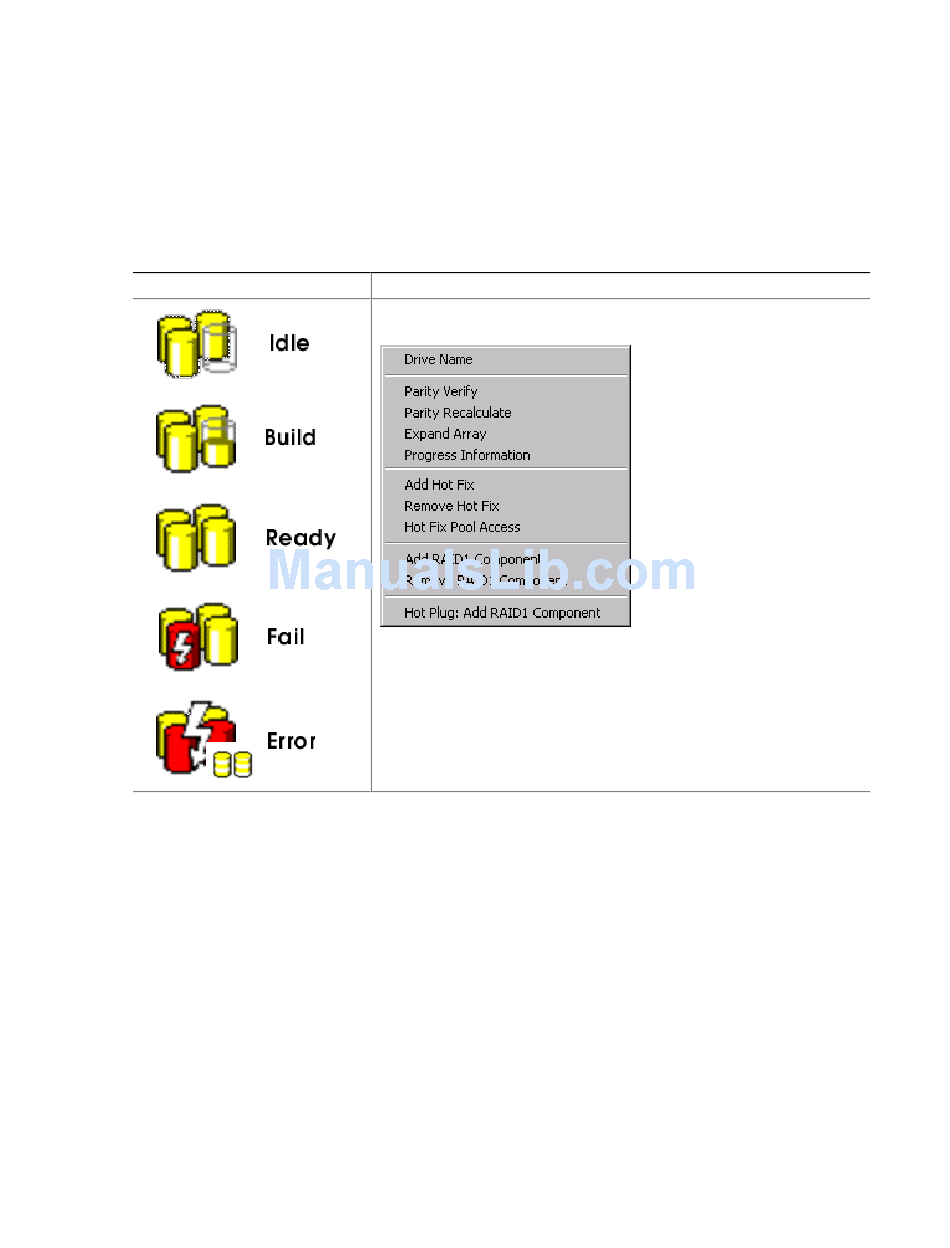

Array Drive Icons

Icon
Storage Console Plus
Description
RAID 4/5/10
Right click to select a drive option
