Double click on the icon shown in Figure 83 to get detailed information on a controller (see the first
controller settings dialog in (Figure 84). Right click on the icon to Change Settings, Save
Information or do a Firmware Update. These configuration setting selections are described below.

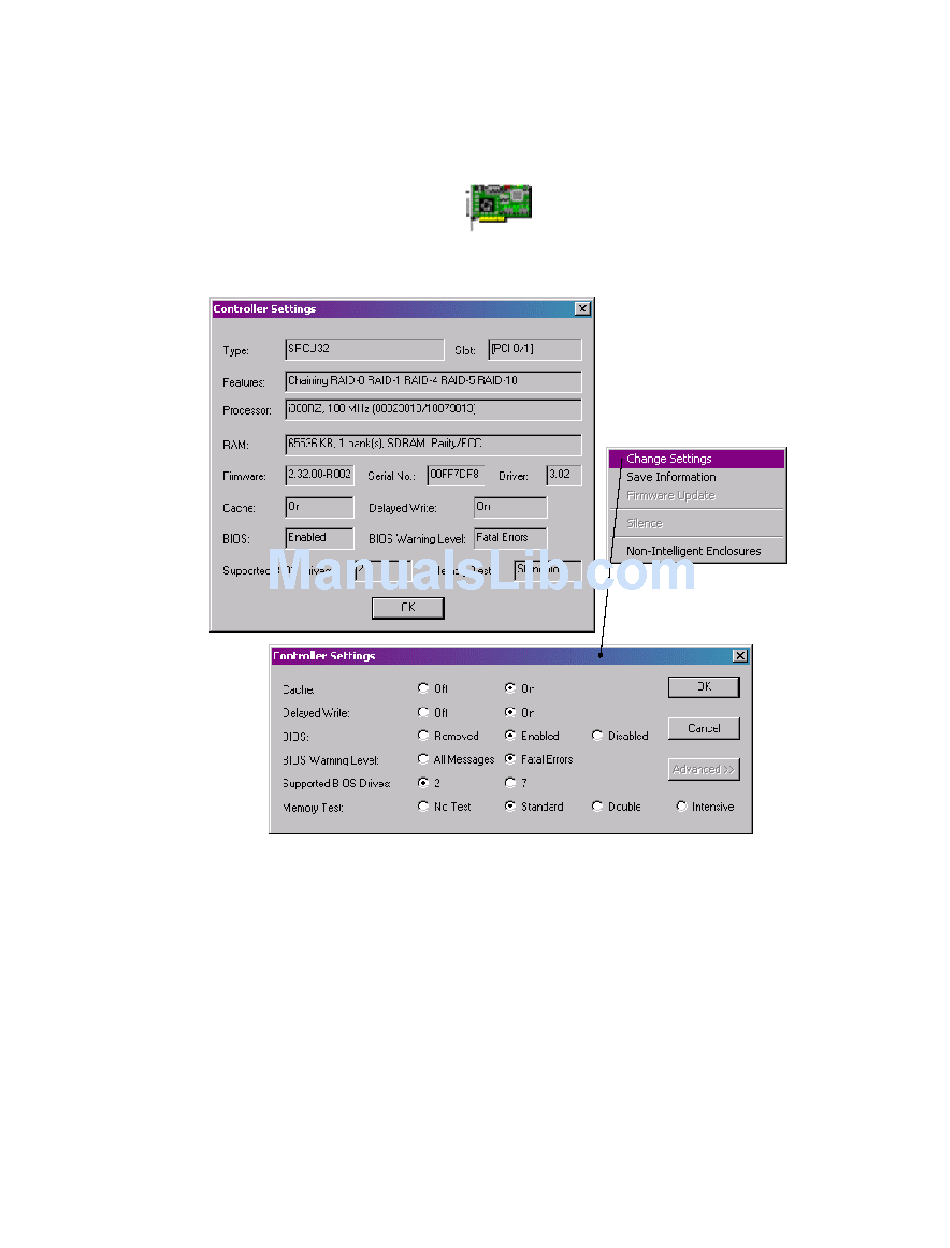

Figure 83. Controller Icon
Figure 84. Controller Settings Dialogs
Storage Console Plus 131
