CARLO GAVAZZI WM4-96 - PROGRAMMING Manual page 60

60
ceived to be mounted in one slot only. To know in which slot
every module is to be mounted, refer to the figure on page 62.
For a correct mounting of the instrument, insert the modules
in the relevant slots, then, at the end, enter the central mod-
ule, which can be a blind type module or an RS232 com-
munication module. The central module will help fixing also

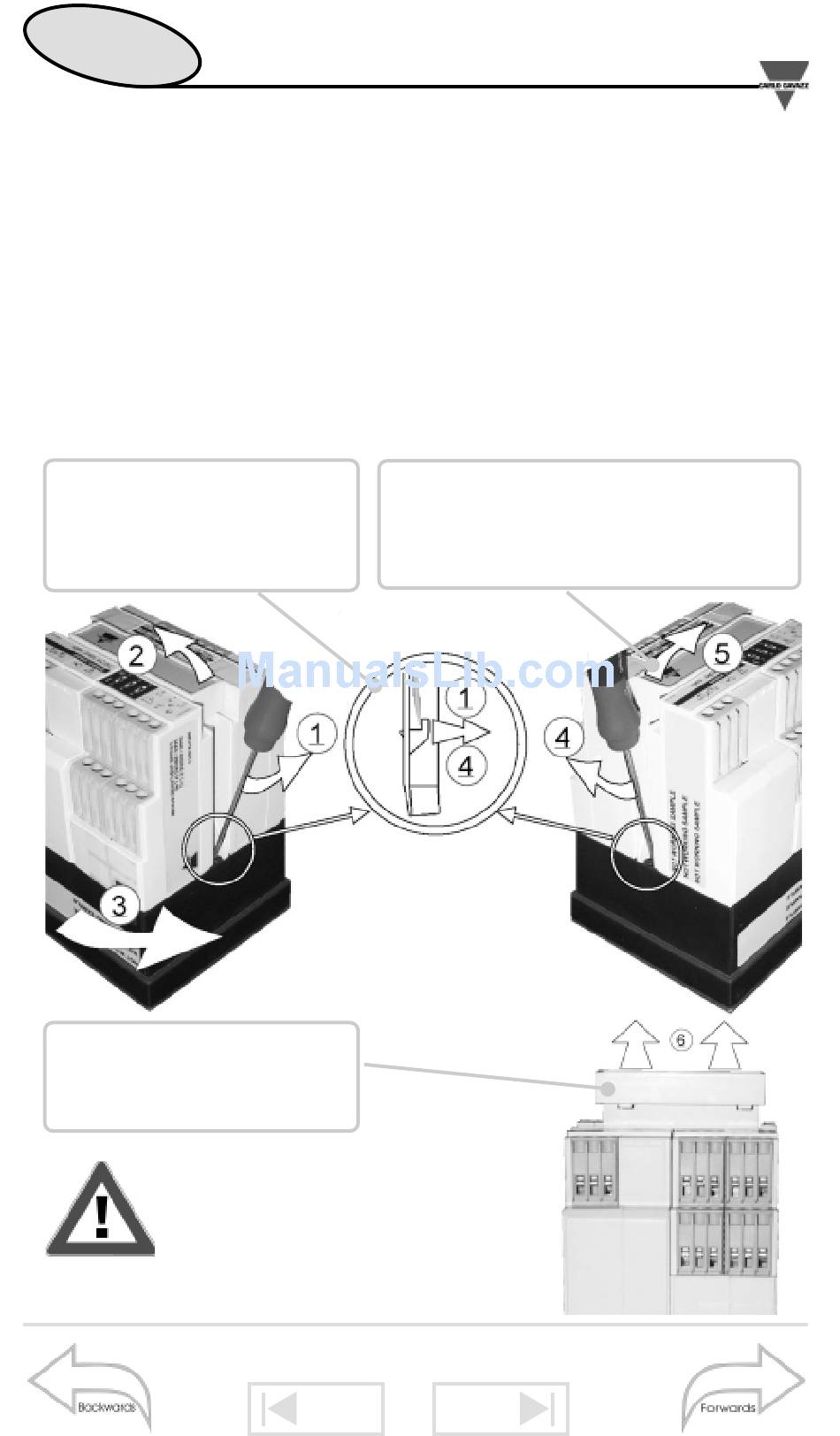

the other modules in the relevant slots. To remove the mod-
ules use a screwdriver as shown in the picture below:
Gently depress the
1
two fixing tabs.
Directions 1-4.
3
Extract the central
module.
Any other slots that you
haven't used must be filled
with the relevant blind plug
modules supplied with the
instrument.
Language
55
Installation
Remove the central mod-
2
ule from its slot: press your
thumb towards points 2-5.
Position of the modules
67
62
