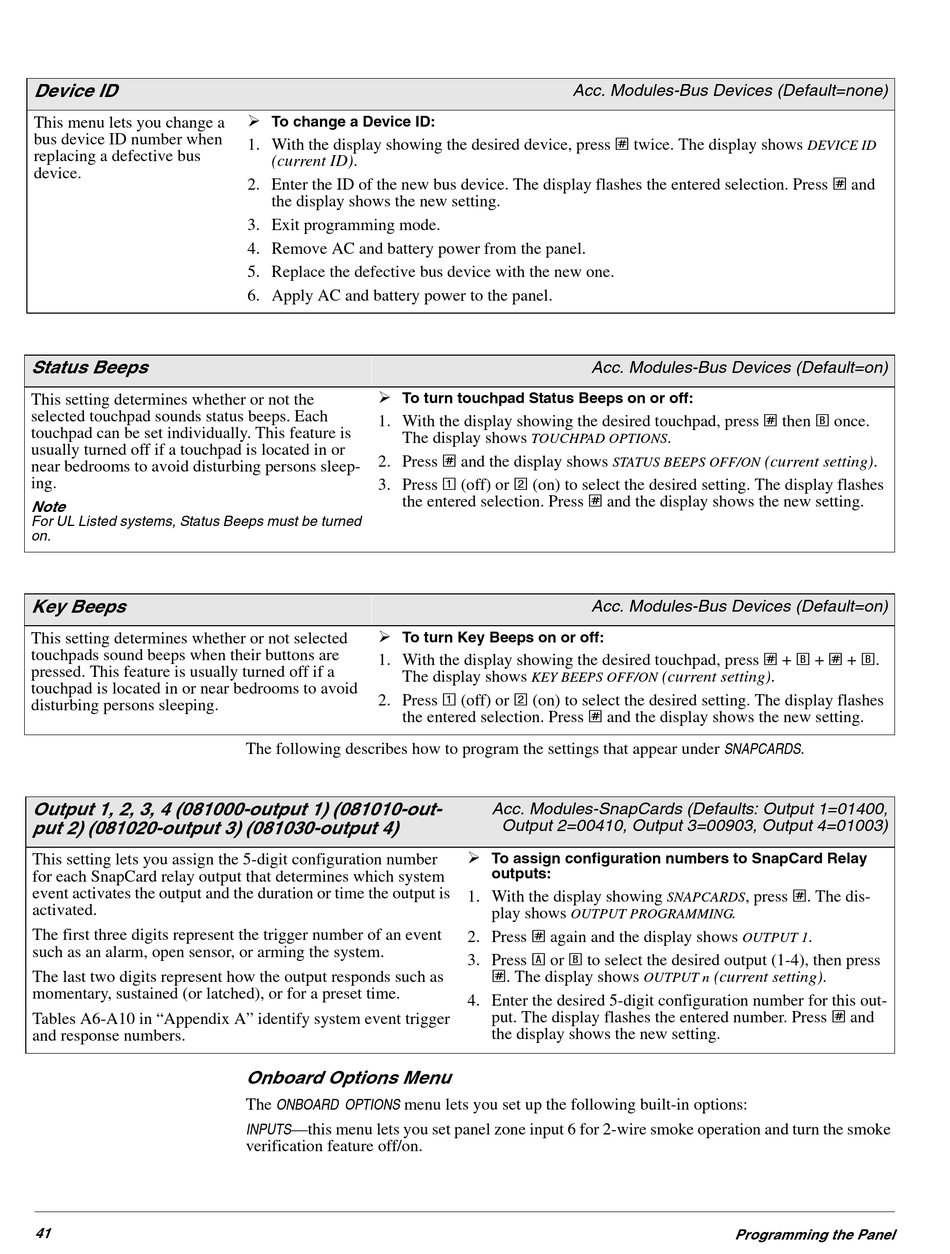

Device ID
This menu lets you change a
bus device ID number when
replacing a defective bus
device.
Status Beeps
This setting determines whether or not the
selected touchpad sounds status beeps. Each
touchpad can be set individually. This feature is
usually turned off if a touchpad is located in or
near bedrooms to avoid disturbing persons sleep-
ing.
Note
For UL Listed systems, Status Beeps must be turned
on.
Key Beeps
This setting determines whether or not selected
touchpads sound beeps when their buttons are
pressed. This feature is usually turned off if a
touchpad is located in or near bedrooms to avoid
disturbing persons sleeping.
Output 1, 2, 3, 4 (081000-output 1) (081010-out-
put 2) (081020-output 3) (081030-output 4)
This setting lets you assign the 5-digit configuration number
for each SnapCard relay output that determines which system
event activates the output and the duration or time the output is
activated.
The first three digits represent the trigger number of an event
such as an alarm, open sensor, or arming the system.
The last two digits represent how the output responds such as
momentary, sustained (or latched), or for a preset time.
Tables A6-A10 in "Appendix A" identify system event trigger
and response numbers.
41
¾
To change a Device ID:
1. With the display showing the desired device, press ƒ twice. The display shows
(current ID).
2. Enter the ID of the new bus device. The display flashes the entered selection. Press ƒ and
the display shows the new setting.
3. Exit programming mode.
4. Remove AC and battery power from the panel.
5. Replace the defective bus device with the new one.
6. Apply AC and battery power to the panel.
¾
To turn touchpad Status Beeps on or off:
1. With the display showing the desired touchpad, press ƒ then B once.
The display shows
2. Press ƒ and the display shows
3. Press 1 (off) or 2 (on) to select the desired setting. The display flashes
the entered selection. Press ƒ and the display shows the new setting.
¾
To turn Key Beeps on or off:
1. With the display showing the desired touchpad, press ƒ + B + ƒ + B .
The display shows
2. Press 1 (off) or 2 (on) to select the desired setting. The display flashes
the entered selection. Press ƒ and the display shows the new setting.
The following describes how to program the settings that appear under
Onboard Options Menu
The menu lets you set up the following built-in options:
ONBOARD OPTIONS
—this menu lets you set panel zone input 6 for 2-wire smoke operation and turn the smoke
INPUTS
verification feature off/on.
Acc. Modules-Bus Devices (Default=none)
Acc. Modules-Bus Devices (Default=on)
TOUCHPAD OPTIONS
STATUS BEEPS OFF/ON
Acc. Modules-Bus Devices (Default=on)
KEY BEEPS OFF/ON
Acc. Modules-SnapCards (Defaults: Output 1=01400,
Output 2=00410, Output 3=00903, Output 4=01003)
¾
To assign configuration numbers to SnapCard Relay
outputs:
1. With the display showing
play shows
OUTPUT PROGRAMMING
2. Press ƒ again and the display shows
3. Press A or B to select the desired output (1-4), then press
ƒ . The display shows
OUTPUT n
4. Enter the desired 5-digit configuration number for this out-
put. The display flashes the entered number. Press ƒ and
the display shows the new setting.
DEVICE ID
.
(current setting).
(current setting).
.
SNAPCARDS
, press ƒ . The dis-
SNAPCARDS
.
.
OUTPUT 1
(current setting).
Programming the Panel
