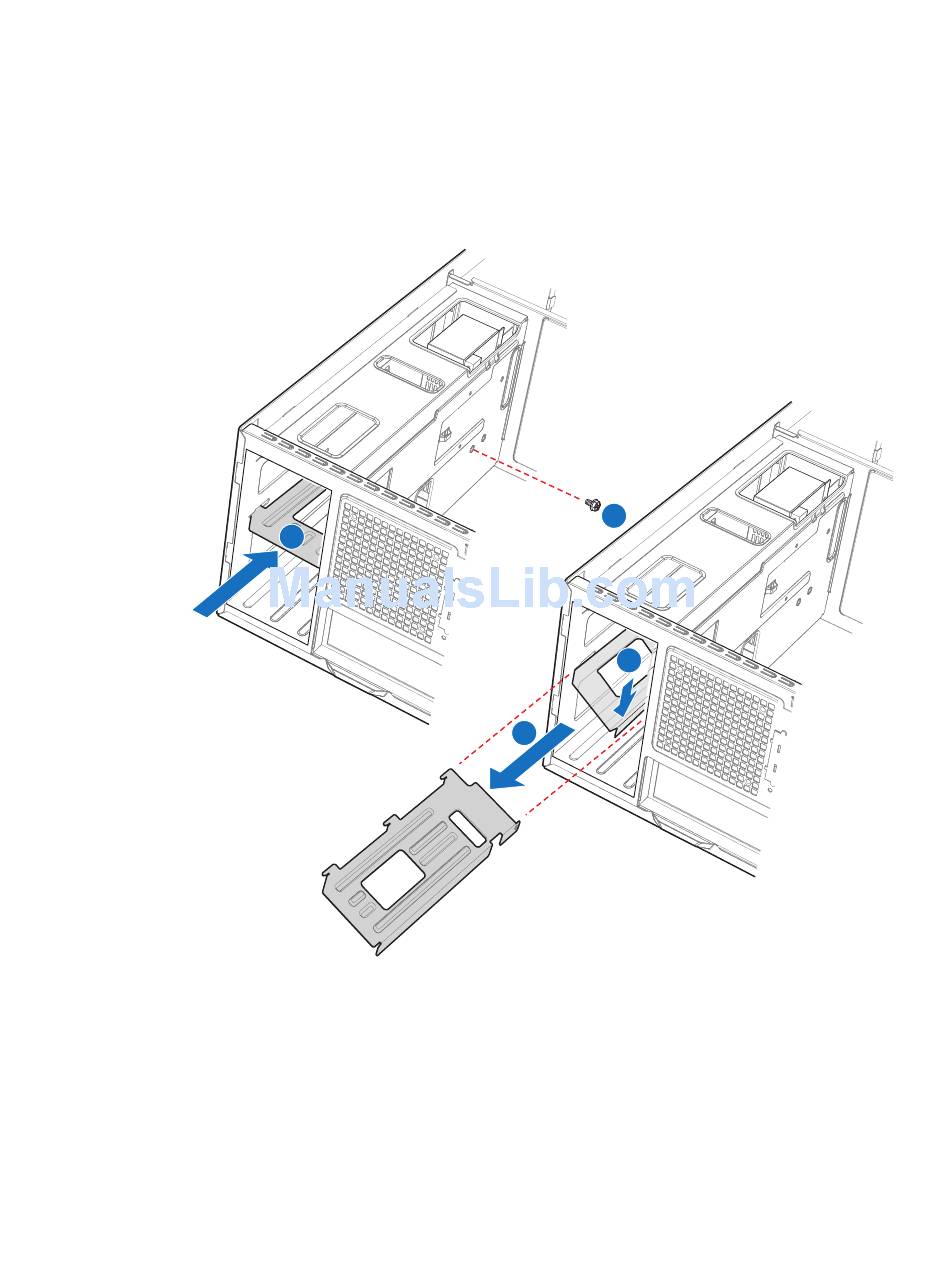

7. Remove screw (see letter "A" in the following figure) securing center divider to the
power supply cage. Push center divider straight back (see letter "B") to release tabs
from chassis slots. Then, while holding the right edge of the center divider at a
downward angle, disengage tabs from chassis wall by pushing center divider up
and sideways (see letter "C"). Remove center divider from power supply cage (see
letter "D").
A
B
C
D
TP00696

Figure 59. Removing Center Divider

Intel® Server Chassis SC5400 User's Guide 55
