Installing and Removing a Slimline USB Floppy/
CD/DVD Combo Kit

Installing a Slimline USB Floppy/CD/DVD Slimline Kit

Refer to the Slimline USB Floppy/CD-ROM/DVD-ROM Drive Kit Install Guide that
shipped with your slimline combo kit for installation instructions.

Removing a Slimline USB Floppy/CD/DVD Combo

1. Observe the safety and ESD precautions at the beginning of this book.
2. Power down the server and unplug all peripheral devices and the AC power cable.
3. Remove the chassis cover. For instructions, see
page
4. Remove the front bezel if it is installed. For instructions, see
Installing the Front Bezel" on page
5. Disconnect the power and data cables to the slimline combo drive assembly.
6. Remove the combo drive/slide assembly from the chassis by pressing in on the
slide release latches (see letter "A" in the following figure). Remove the slides from
the slimline combo drive tray by pulling the slides away from the tray (see letter
"B"). A gentle pull should release the slide from the side dimple on the drive tray.

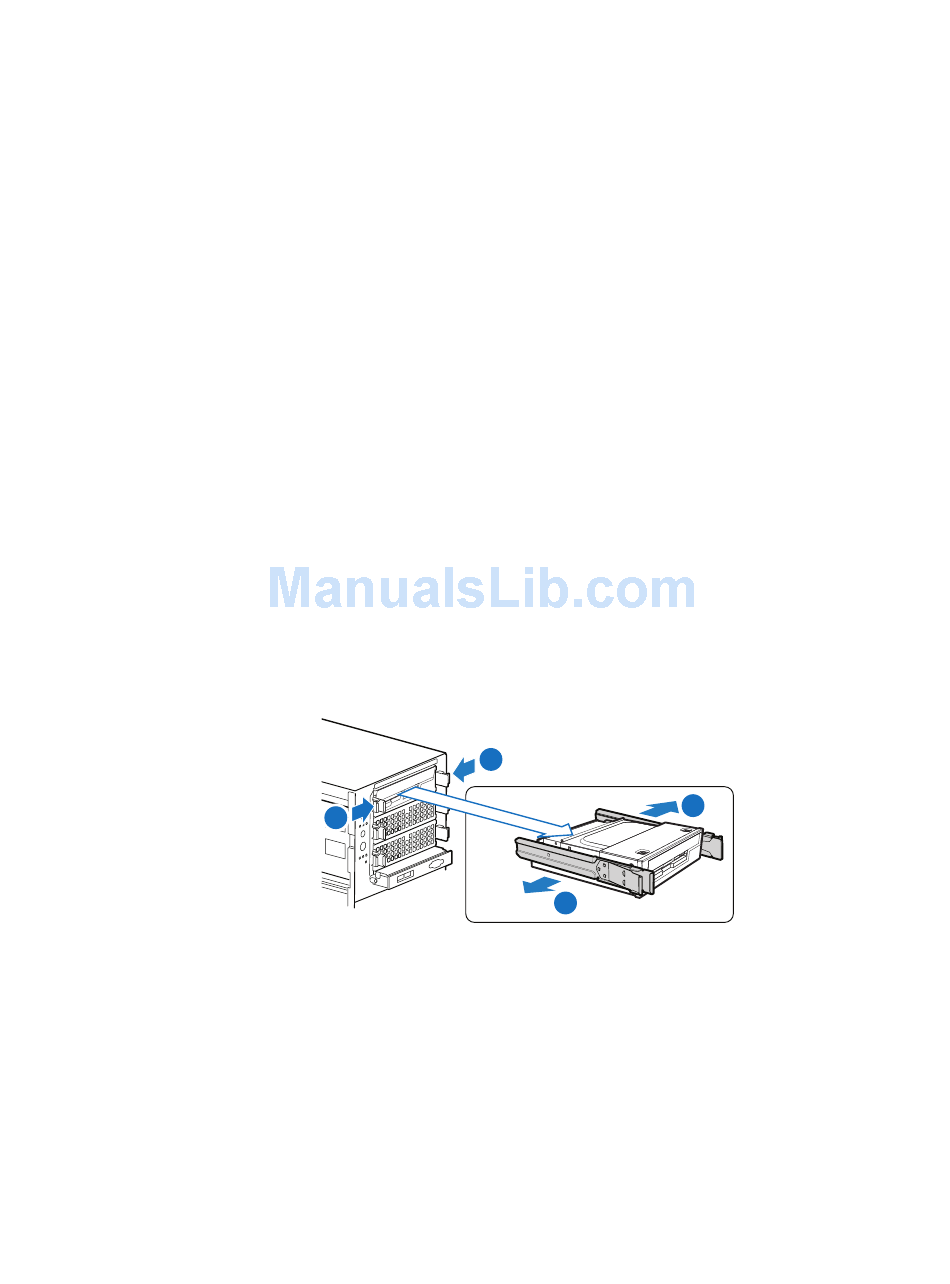

Figure 17. Removing Slide/Drive Assembly from Upper Device Bay

26
16.
A
"Removing the Chassis Cover" on
18.
A
B
Intel® Server Chassis SC5400 User's Guide
"Removing and
B
AF000575
