8. Remove a pair of device slides from the drive cage.
9. Attach the device slides to the hard drive. This is a tool-less operation. Insert pins
on device slides into mounting holes on hard drive. Press firmly to secure device
slides to hard drive. Ensure that the metal tabs on the device slides are facing the
front of the hard drive and facing towards each other.
Intel® Server Chassis SC5400 User's Guide

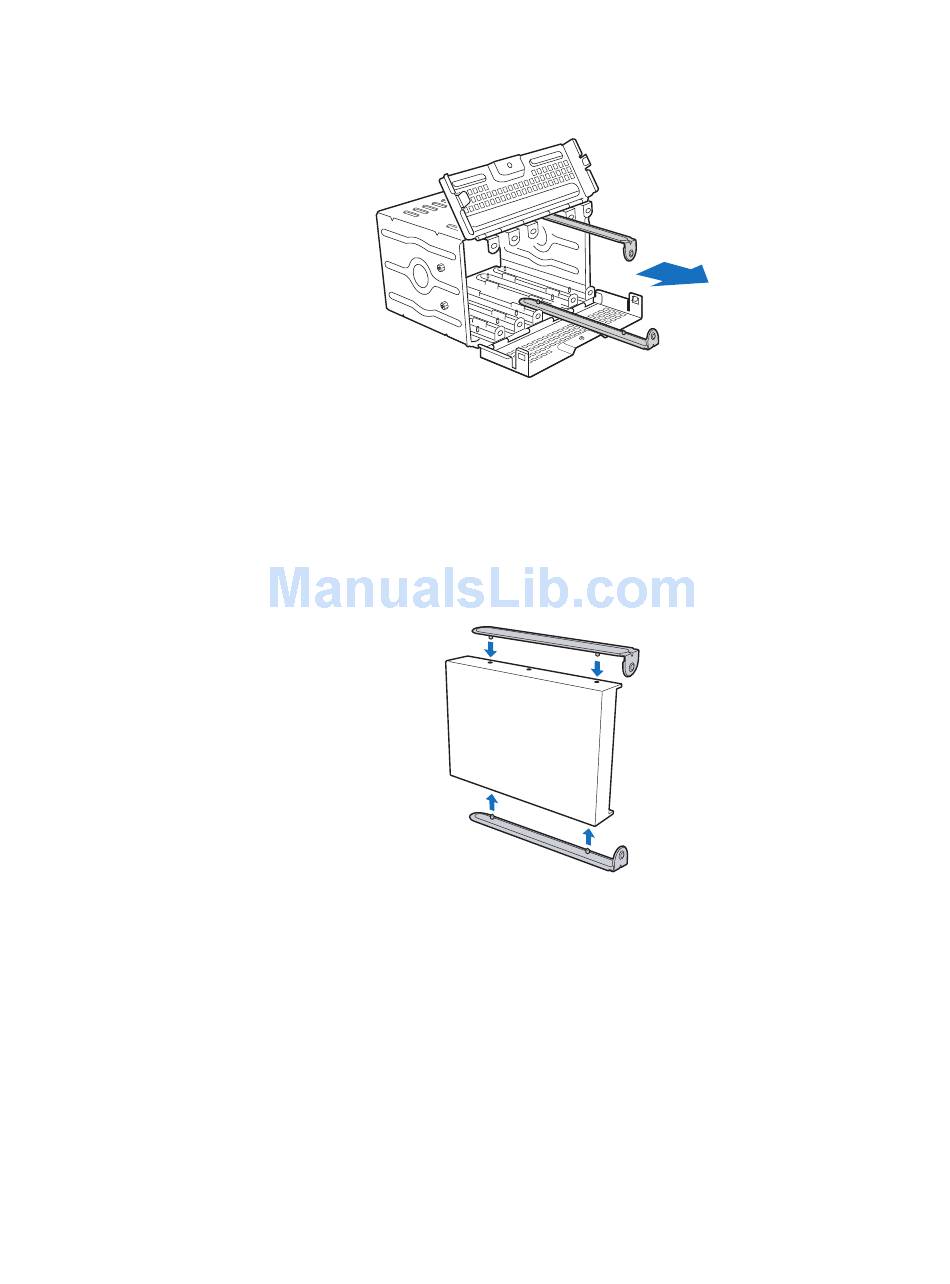

Figure 33. Removing Slides from Drive Cage

Figure 34. Attaching Device Slides to Hard Drive
